Page 1: Ac Adapter

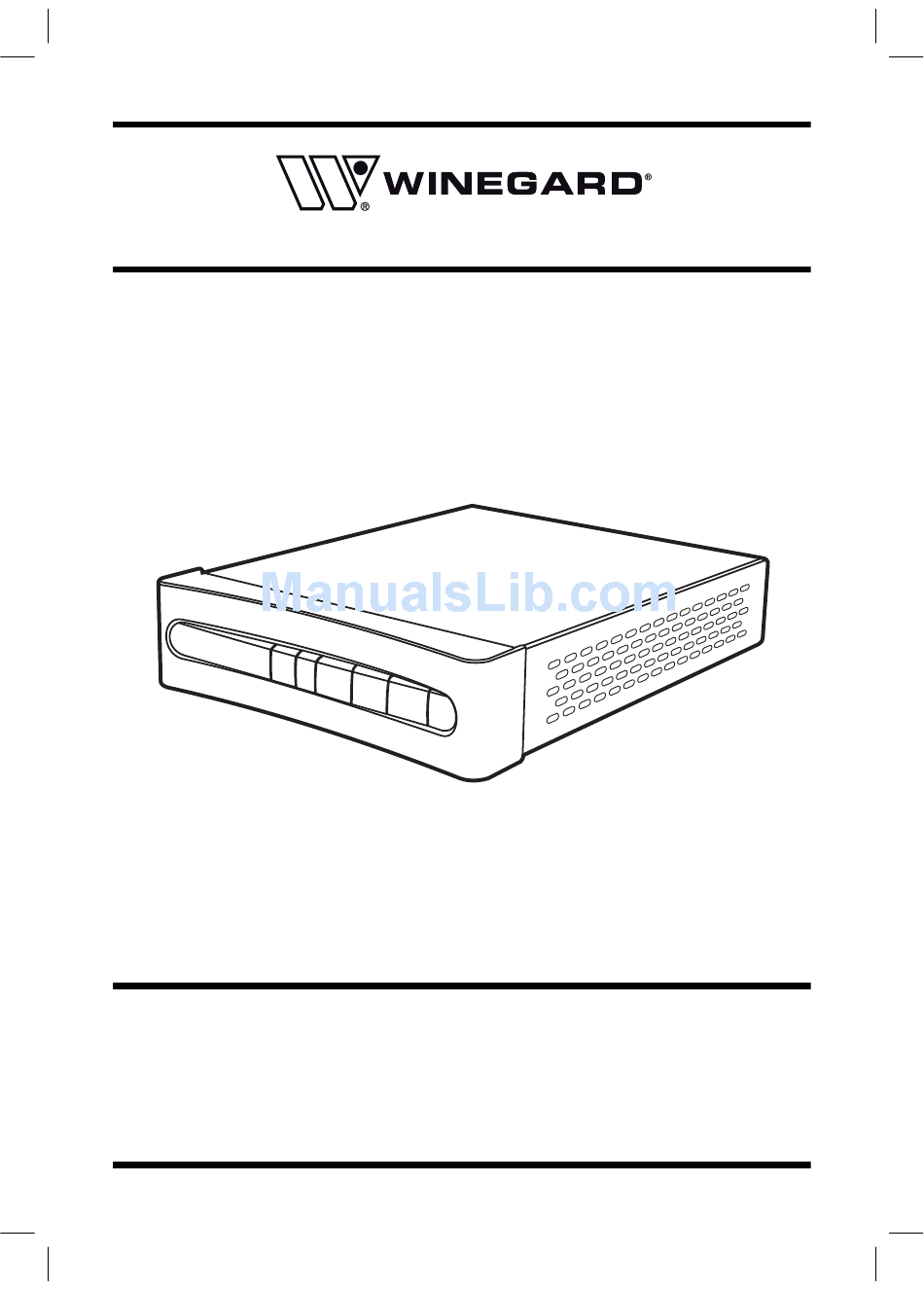

Digital to Analog Converter Box Instruction Manual DO NOT RETURN THIS PRODUCT TO THE STORE Please visit online help at http//www.1800customersupport.com IB_English.indd 1 IB_English.indd 1 RC-DT09 Need More Help? - 1 - 2/19/2008 5:06:21 PM 2/19/2008 5:06:21 PM... -
Page 2: Aaa Batteries (For Remote Control)
SAFETY PRECAUTIONS WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT. -
Page 3: Table Of Contents
AC Adapter ... x 1 Remote Control ... x 1 AAA Batteries (for Remote Control) ... x 2 RF Cable ... x 1 Safety Precautions ... 2 Important Safety Instructions ... 2 Accessories ... 3 Contents ... 3 Remote Control ... 4 Quick Start Guide ... -
Page 4: Remote Control
REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). To Install Batteries 1. -
Page 5: Quick Start Guide
QUICK START GUIDE STEP 1: CONNECTIONS Option One: Using the RF Cable to Connect a TV 1. Connect an antenna cable to the RF IN terminal on the rear of the unit. 2. Use the RF cable (included) to connect the unit and TV/Monitor. 3. -
Page 6: Quick Start Guide
QUICK START GUIDE STEP 2: TURNING ON THE UNIT 1. While the AC adapter is connected and the unit is on standby, power will be consumed and the power indicator is RED. 2. Press the STANDBY/ON button to turn on the unit. The power indicator is GREEN. STEP 3: SETTING THE OSD LANGUAGE 1. -
Page 7: Control Reference Guide
CONTROL REFERENCE GUIDE Remote Control IB_English.indd 7 IB_English.indd 7 MUTE Button Press to turn off the sound. MENU Button Press to display the on-screen menu or switch back to the previous menu screen. CURSOR ( , , , ) Buttons Use to highlight selections on a menu screen and adjust certain settings. -
Page 8: Control Reference Guide
CONTROL REFERENCE GUIDE Front View Back View Remote Sensor Receives infrared signals from the remote control. CH-/CH+ Buttons Press to select the channel upward or downward. Button Turns the power on or restores the unit to the standby mode. STANDBY/ON Indicator Green: power on Red: standby mode IB_English.indd 8... -
Page 9: Connections
Connecting a TV (Using the RF Cable) 1. Connect an antenna cable to the RF IN terminal on the rear of the unit. 2. Use the RF cable (included) to connect the unit and TV/Monitor as shown. Note: Make sure to turn on your TV and follow the instructions included with it to select the “TV” function. Connecting a TV (Using the AV Cable) 1. -
Page 10: Power Supply
Using the AC Adapter The supplied 9V adapter operates on AC 120V ~ 60Hz. While the AC adapter is connected and the unit is on standby, power will be consumed and the power indicator is RED. Cautions: • The AC adapter included with this unit is for its use only. Do not use it with other equipment. •... -
Page 11: Basic Operation
Searching for Channels Automatically 1. Press the MENU button on the remote control. 2. Use the buttons to select the CHANNEL menu. 3. Use the button to select Channel Scan and press the ENTER button or the button to start scanning. Notes: •... -
Page 12: On-Screen Menu-Channel
ON-SCREEN MENU - CHANNEL Use the menu confi guration to set detailed options for each function. Press the MENU button on the remote control to open the menu screen. • To return to the previous menu press the MENU button on the remote control. •... -
Page 13: Output Channel
ON-SCREEN MENU - CHANNEL Output Channel You can select NTSC RF output channel. 1. Press the MENU button on the remote control. 2. Use the buttons to select the CHANNEL menu. 3. Use the button to select Output Channel then press the ENTER button or the button. -
Page 14: Language
ON-SCREEN MENU - OPTION Language 1. Press the MENU button on the remote control. 2. Use the buttons to select the OPTION menu. 3. Use the button to select Language then press the ENTER button or the button. 4. Use the buttons to select English / Español (Spanish) / Français (French). -
Page 15: Dcc View
ON-SCREEN MENU - OPTION DCC View Use this to set the character font. Only DCC is set to Custom, DCC View is activated. 1. Press the MENU button on the remote control. 2. Use the buttons to select the OPTION menu. 3. -
Page 16: Set Password
ON-SCREEN MENU - LOCK Set Password 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3. Use the buttons to select Set Password then press the ENTER button or the 4. Enter values (4 digit) for new password and again to confi rm password. -
Page 17: Movie Rating
ON-SCREEN MENU - LOCK The lock levels are equivalent to the following ratings. TV-Y: All children. TV-Y7: Children 7 years and older. TV-G: General Audience. Movie Rating 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3. -
Page 18: Maintenance
Cleaning the Unit • Be sure to turn the unit off and disconnect the AC adapter before maintaining the unit. • Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been dipped in a weak soap-and-water solution and wrung out thoroughly. -
Page 19: Limited Warranty
LIMITED WARRANTY VENTURER ELECTRONICS (“VENTURER”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non-commercial use of the product. Ninety (90) Day Parts & Labor Warranty VENTURER products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of ninety (90) days from the date of their original retail purchase.
