Winegard PR-7015 Specifications

Clearly the World's Best
engineering specifications
Active Elements
31
Boom Length
87.75"
Turning Radius
69"
Maximum Width
111"
Vertical Height
25.5"
Element Diameter
3/8"
Output Impedance:
Recommended Preamp:
CHANNEL CH.2
dB gain over
3.9
reference dipole
beamwidth at half
75°
power points
front-to-back
10.5dB
ratio
Printed in U.S.A. Winegard Company, 3000 Kirkwood St., Burlington, IA 52601-2000 Rev. 6/01
®
Net Weight 5.7 lbs.
Shpg. Weight 8.5 lbs.
Carton Dimensions 6.25"x6.25"x89"
300 ohm / 75 ohm with included matching transformer
AP Series
CH.4 CH.6 CH.7
4.1 2.5 7.5
74° 77° 32°
12dB 13dB 13dB
CH.9 CH.11 CH.13
7.5 8 7
32° 47° 40°
12.5dB 8dB 14.5dB

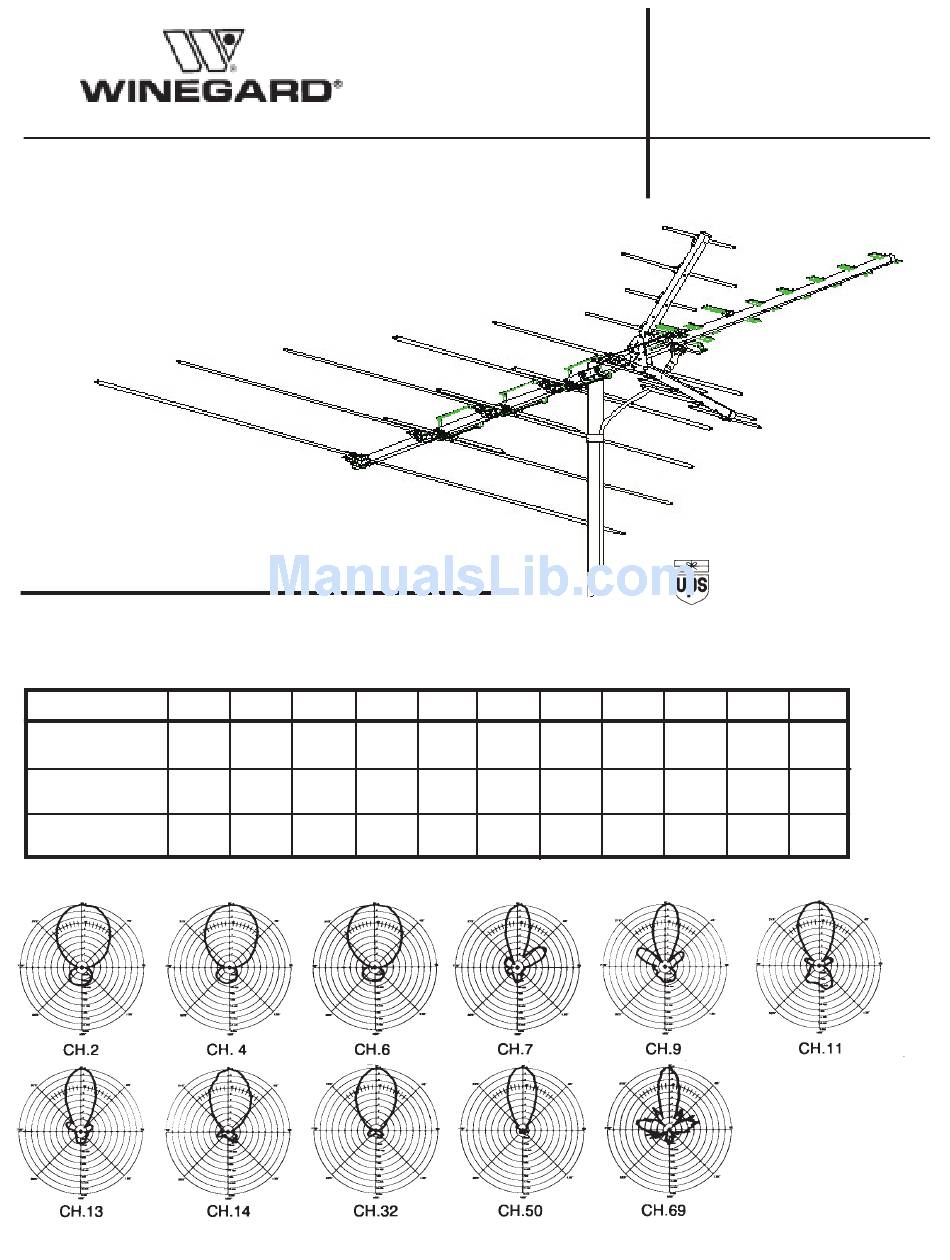

POLAR PATTERNS
PROSTAR
VHF/UHF/FM
ANTENNA
Model PR-7015
"UPS in shield design is a registered
trademark of United Parcel Service of
America, Inc. used by permission."
Made in U.S.A.
CH.14 CH.32 CH.50
9.4 9.9 9.8
57° 54° 38°
greater
14dB 17dB than
20dB
®
1000
CH.69
8.2
25°
13dB
