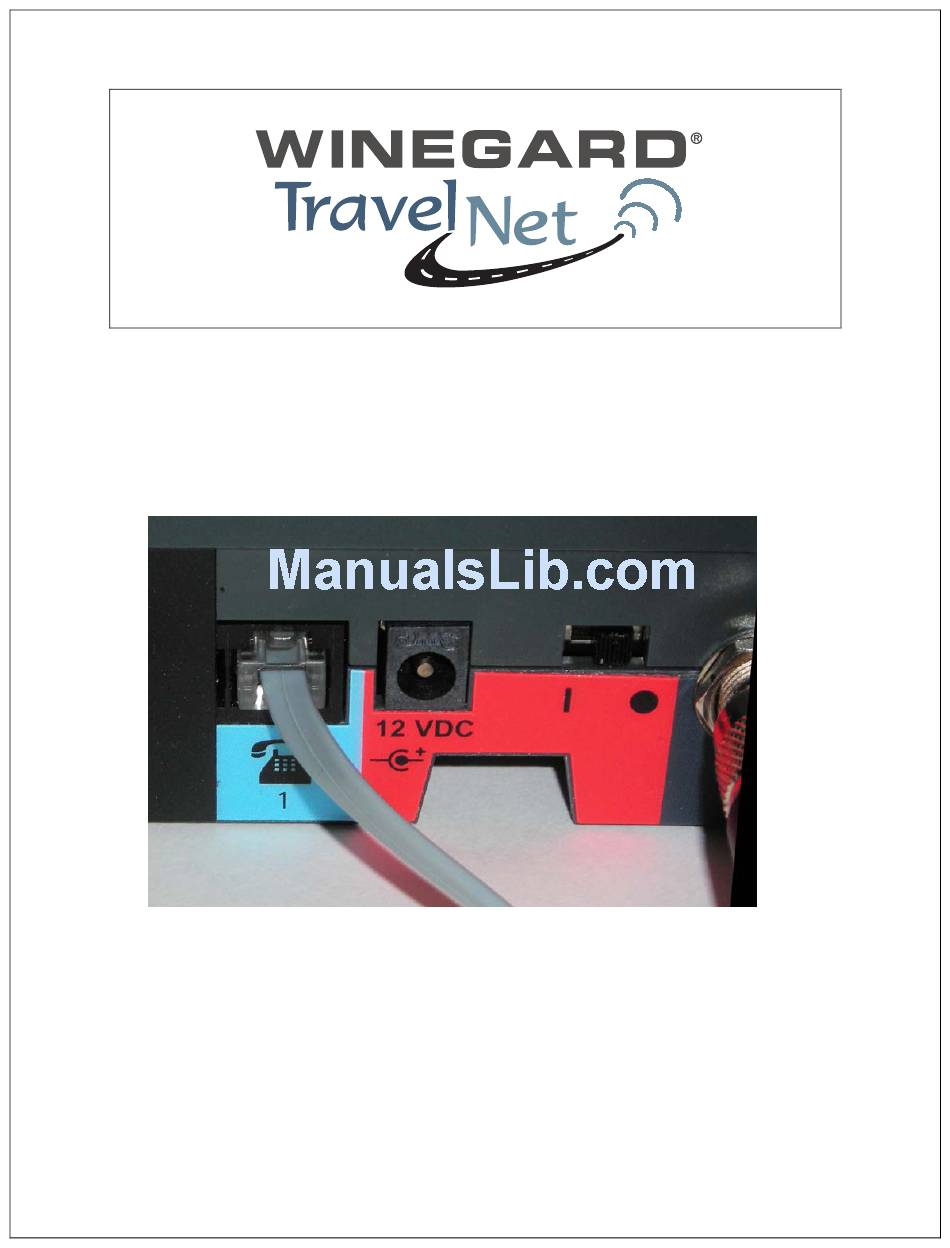

TravelNet Data/Voice Cellular Router Phone Setup Guide
Direct Connection: Phone
Connect a phone to your TN2300-DV SERIES' phone (RJ11) jacks using a
standard telephone cord-
Connection via Wall Jacks
If you do not have local phone service, you may use your TN2300-DV
SERIES to provide a connection to your wireless service for devices that are
plugged into your wall jacks.
1.
Connect either of your TN2300-DV SERIES' phone (RJ11) jacks to any
wall jack using a standard telephone cord -
Ver. 1.6
8/3/2009
Figure 1
- 1 -
Advertisement
Summary of Contents for Winegard TRAVELNET TN2300-DV Series
- Page 1 TravelNet Data/Voice Cellular Router Phone Setup Guide Direct Connection: Phone Connect a phone to your TN2300-DV SERIES’ phone (RJ11) jacks using a standard telephone cord- Connection via Wall Jacks If you do not have local phone service, you may use your TN2300-DV SERIES to provide a connection to your wireless service for devices that are plugged into your wall jacks.
- Page 2 DO NOT CONNECT YOUR TN2300-DV SERIES TO A WALL JACK IF YOU HAVE OUTSIDE SERVICE (I.E., A DIAL TONE) Important AT YOUR WALL JACK. Your TN2300-DV SERIES will not function properly and may become damaged if outside phone service has not been disconnected. If desired, connect your TN2300-DV SERIES’...
- Page 3 Listen for a dial tone. (If you hear a No Service tone [fast beeping], hang up and try again. If the No Service tone continues, contact your service provider to verify that cellular service is available.) Dial a phone number. (When you have finished dialing, the call will be sent automatically.) Pressing the Flash key or pressing and releasing the switch-hook after TIP:...
- Page 4 Dial your phone number. Follow the voice prompts to retrieve your messages. Clearing Your Voicemail Indicator • The message light on your TN2300-DV SERIES will flash when you have a new voicemail message. The indicator should clear after you have listened to all of your new messages.
- Page 5 Many device configuration settings require you to enter Configuration Mode – the device’s programming mode – before you may input the commands. To enter Configuration Mode: • Press You will hear a steady tone indicating that you have entered Configuration Mode. When you press any additional key, the tone will stop.
- Page 6 If using volume options for you (see “Volume Level” on page 12), you may adjust your phone system’s audio line level. To adjust your phone system’s audio line level: • From Configuration Mode, press 2> . 0 = Low 1 = Normal (default) 2 = High Auto-Send Delay The auto-send delay is the amount of time the TN2300-DV SERIES waits to dial...
- Page 7 • From Configuration Mode, press To disable Call Barring (default setting): • From Configuration Mode, press Call Restrict (TN2300-DV SERIES-500C only) Call Restrict allows you to determine which calls may or may not be placed through your TN2300-DV SERIES. When the Call Restrict level is set to Use Table, the Call Restrict feature checks outgoing calls against user-defined permit and deny tables to determine whether to permit or deny the outgoing call.
- Page 8 To disable Dial Tone After Remote Disconnect: • From Configuration Mode, press Note: If Dial Tone After Remote Disconnect is disabled, additional remote disconnect options may be available. See “Disconnect Tone” on page 33 for more information. # * 8 * 0 # Hotline The Hotline feature allows you to program the TN2300-DV SERIES to automatically dial a specific phone number after a selected timeout delay...
- Page 9 To set your phone’s TTY mode: • From Configuration Mode, press <0 or 3> , where <0 or 3> are as follows: 0 = TTY Off 3 = TTYAlways To turn on the TTY Mode, use User Interface and turn the TTY feature on. Or optionally the TTY Mode can be turned on via the POTS command with a phone is: # * 0 * 12344321 # # * 139 * <parameter >...
- Page 10 To set *86 as the default voicemail number: • From Configuration Mode, press To set #86 as the default voicemail number: • From Configuration Mode, press Restore User Defaults To restore your TN2300-DV SERIES to its default settings after changing configuration settings: •...
- Page 11 To make one voice call while in “Always fax mode”: • Press To return your device to voice mode (default setting): • Press QUESTIONS? CALL OUR SUPPORT LINE: 877-475-7771 or visit our website FAQ at http://www.winegard.com TravelNet Winegard Company Support: (877) 475-7771 FAX: 847-991-3328 Ver.
