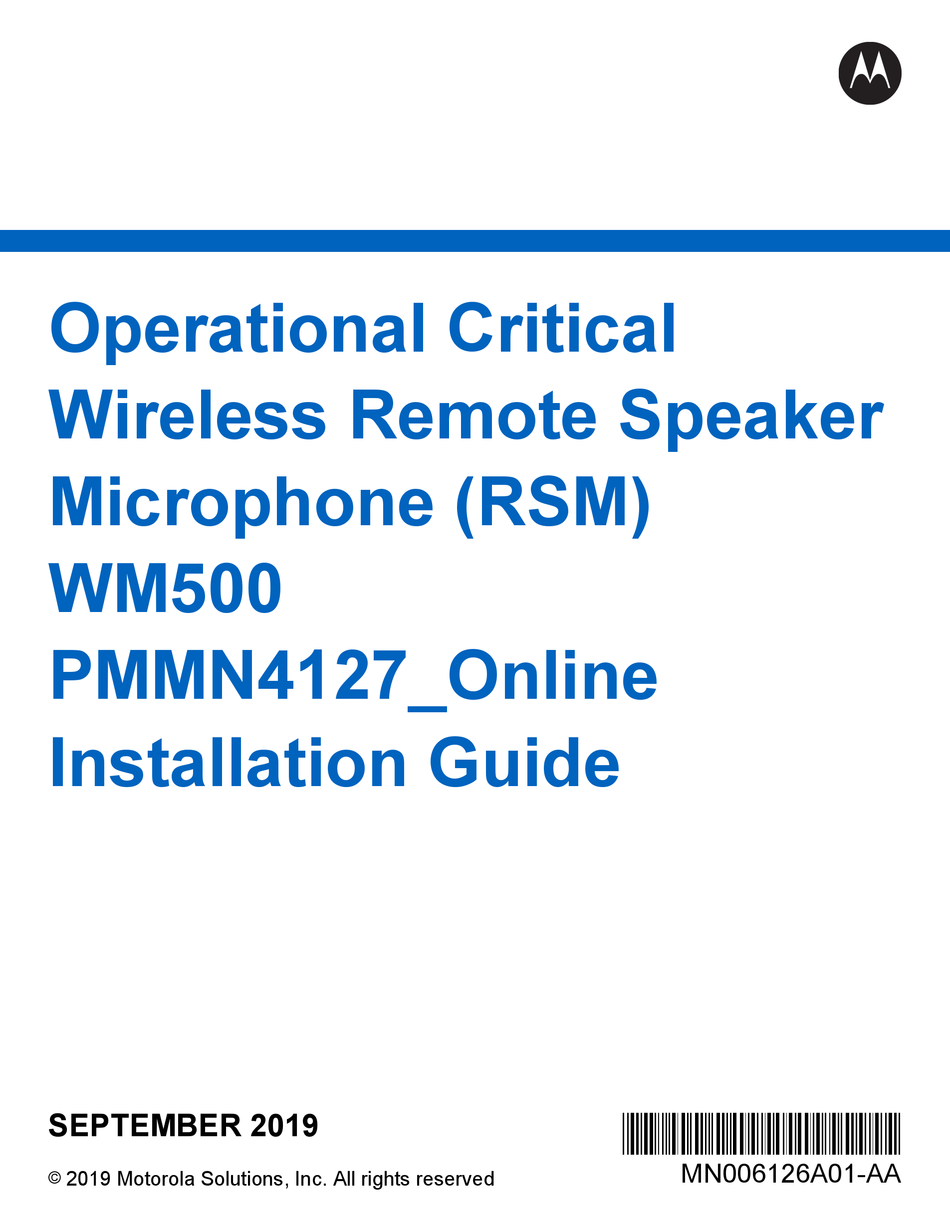

- Page 1 Operational Critical Wireless Remote Speaker Microphone (RSM) WM500 PMMN4127_Online Installation Guide SEPTEMBER 2019 *MN006126A01* MN006126A01-AA © 2019 Motorola Solutions, Inc. All rights reserved...
-
Page 2: Table Of Contents
MN006126A01-AA Contents Contents List of Figures......................3 List of Tables....................... 4 Copyrights........................5 Document History....................... 6 Foreword........................7 Acoustic Safety..........................7 Chapter 1: Service and Warranty................8 1.1 Warranty Exclusion........................8 Chapter 2: Important Information................9 Chapter 3: RSM Compatibility..................10 Chapter 4: Remote Speaker Microphone (RSM) Features........11 Chapter 5: Charging the Battery................13 Charging the Battery........................13 Battery Indication......................... -
Page 3: List Of Figures
MN006126A01-AA List of Figures List of Figures Figure 1: Recommended Wearing Position....................15 Figure 2: Unscrewing the Back Housing....................17 Figure 3: Removing the Battery......................17 Figure 4: Inserting the Battery........................ 18 Figure 5: Assembling USB Dust Cover....................18 Figure 6: Securing the Battery........................19 Figure 7: Reassembling the Back Housing.................... -
Page 4: List Of Tables
MN006126A01-AA List of Tables List of Tables Table 1: WM500 RSM Features......................11 Table 2: WM500 RSM Button Operations....................12 Table 3: Charging Indicator Behavior..................... 13 Table 4: Battery Indication........................13 Table 5: Audio and Bluetooth Status...................... 14 Table 6: Status Indication........................14... -
Page 5: Copyrights
Motorola Solutions, Inc. Furthermore, the purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. -
Page 6: Document History
MN006126A01-AA Document History Document History Version Description Date MN006126A01-AA Initial release of the Operational Critical Wire- September 2019 less Remote Speaker Microphone (RSM)– WM500 PMMN4127_Online Installation Guide manual. -
Page 7: Foreword
MN006126A01-AA Foreword Foreword RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios CAUTION: Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable Standards and Regulations. -
Page 8: Chapter 1: Service And Warranty
Motorola Solutions will not honor any warranty claim where the Product is used in such a combination and it is determined by Motorola Solutions that there is no fault with the Product. Upon open or dismantle the Product, the warranty is immediately voided. Motorola Solutions specifically disclaim any responsibility for any damage in any way caused by improper installation by unauthorized personnel. -
Page 9: Chapter 2: Important Information
MN006126A01-AA Important Information Chapter 2 Important Information • Do not charge your accessory in temperature below 0°C (32°F) or above 45°C (113°F). • Do not store your accessory in direct sunlight or where expected temperatures can exceed this range such as inside a parked car. •... -
Page 10: Chapter 3: Rsm Compatibility
MN006126A01-AA Chapter 3: RSM Compatibility Chapter 3 RSM Compatibility List of radio(s) or device(s) that are compatible to PMMN4127: • LEX Series • SLN 1000 • TLK 100 • Other compatible non-Motorola Solutions devices... -
Page 11: Chapter 4: Remote Speaker Microphone (Rsm) Features
MN006126A01-AA Remote Speaker Microphone (RSM) Features Chapter 4 Remote Speaker Microphone (RSM) Features Table 1: WM500 RSM Features Label Description Volume toggle Power Indicator Power button Push-To-Talk (PTT) button (for group call) Answer/End-Call button (for private call) P1 Programmable button Channel Down button. -
Page 12: Table 2: Wm500 Rsm Button Operations
MN006126A01-AA Chapter 4: Remote Speaker Microphone (RSM) Features Label Description Microphone Speaker Charging port NFC Location Audio jack Table 2: WM500 RSM Button Operations Button State Short Long Very Long Press (>3s) Press Press (>1.5s) Power Power Enter Pairing Sign Of Life Power Off Connected PTT for Kodiak Group Call... -
Page 13: Chapter 5: Charging The Battery
MN006126A01-AA Charging the Battery Chapter 5 Charging the Battery Charging the Battery Procedure: 1 Connect the USB charging cable to the RSM. 2 Plug the charging cable to appropriate power outlet. Table 3: Charging Indicator Behavior Power Indicator Description Blinking red Battery is low. -
Page 14: Status Indication
MN006126A01-AA Chapter 5: Charging the Battery Status Indication Procedure: Read the following table to undetstand the audio and bluetooth status indication. Table 5: Audio and Bluetooth Status Audio/Bluetooth Indication Description Blinking in Blue Enter pairing Solid Blue Disconnected Double blinking Blue (Once) Connected Solid Red Mic Muted... -
Page 15: Chapter 6: Maintenance
This chapter provides information about the care and maintenance of this RSM. Recommended RSM Wearing Positions Figure 1: Recommended Wearing Position NOTICE: For better performance, wear the RSM and the device on the same side. For best practices for Motorola Solutions Law Enforcement RSM, see https://www.youtube.com/watch? v=82Qvxq10Vco. -
Page 16: Pairing The Rsm To The Radio
MN006126A01-AA Chapter 6: Maintenance Alternatively, scan the following QR Code: Pairing the RSM to the Radio Pairing the RSM through Bluetooth Procedure: 1 While RSM is power off, press and hold the Power button until the "Power On" voice prompt follows by "Searching for Host"... -
Page 17: Figure 2: Unscrewing The Back Housing
Do not use conductive or sharp tools when removing the battery. Figure 3: Removing the Battery 4 Insert the battery into the battery compartment. Attach the left side of the battery first. WARNING: Safety Critical Use only Motorola Solutions authorized BT60 Battery (HKNN4014_). -
Page 18: Figure 4: Inserting The Battery
MN006126A01-AA Chapter 6: Maintenance Figure 4: Inserting the Battery 5 Attached the USB Dust Cover using two guide pin on back housing if it detached. Figure 5: Assembling USB Dust Cover CAUTION: 1 Ensure that the battery contact is facing bottom left. 2 Ensure that the rubber seal is securely in place. -
Page 19: Figure 6: Securing The Battery
MN006126A01-AA Chapter 6: Maintenance Figure 6: Securing the Battery 7 Reassemble the back housing by screwing in the three screws. WARNING: Safety Critical Use a T8 tamper proof torx screwdriver with 3.8 +/-0.1 lbf-in torque to ensure that the screws are tightened. Figure 7: Reassembling the Back Housing WARNING: Safety Critical •... -
Page 20: Chapter 7: Optional Accessories
MN006126A01-AA Chapter 7: Optional Accessories Chapter 7 Optional Accessories Part Number Description PMLN7560_ Receive-only Earpiece with Translucent Tube 42009312001 4205823V01 CB000756A01 USB-C Cable (m)
