Windsor Automatic Scrubber 86221970 Parts List

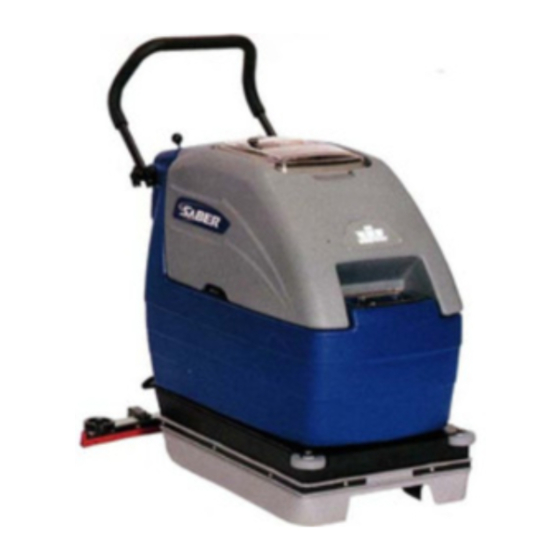

17” scrubber
Hide thumbs

Advertisement

Quick Links

Download this manual
17" SCRUBBER
PARTS LIST
86221970 17" SCRUBBER 01/03/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the Automatic Scrubber 86221970 and is the answer not in the manual?

Questions and answers

Related Manuals for Windsor Automatic Scrubber 86221970

Summary of Contents for Windsor Automatic Scrubber 86221970

  • Page 1 17” SCRUBBER PARTS LIST 86221970 17” SCRUBBER 01/03/07...
  • Page 2 DECAL 86221970 17” SCRUBBER 01/03/07...
  • Page 3 PART NO. PRV NO. 86243040 500301 86244000 500789 86220990 501086 86243050 500302 86244010 500790 86221000 501087 86004970 50990 86244020 500794 86244520 501110 86220670 501027 86220660 501026 DESCRIPTION LABEL, MAIN (RIGHT) LABEL, MAIN (RIGHT) LABEL, MAIN, AS17 (RIGHT) LABEL, MAIN (LEFT) LABEL, MAIN (LEFT) LABEL, MAIN, AS17 (LEFT) LABEL, LOGO DOMED...
  • Page 4 CONTROL PANEL- W/CHARGER 86221970 17” SCRUBBER 01/03/07...
  • Page 5 PART NO. PRV NO. 86007130 72128 86007140 72130 86257090 72181 86276820 70740 86218800 41540 86215420 140888 86215860 140913 86231240 140429 86255910 73659 86006850 70393 86222310 57311 86005640 57030 86215680 140931 86005680 57047 86274290 70162 86222490 61480 86010660 87025 86224880 730365 86246970 54192 86251420...
  • Page 6 CONTROL PANEL- SCHC172 W/CHARGER 86221970 17” SCRUBBER 01/03/07...
  • Page 7 PART NO. PRV NO. 86007130 72128 86007140 72130 86257090 72181 86276820 70740 86218800 41540 86215420 140888 86215860 140913 86231240 140429 86255910 73659 86006850 70393 86222310 57311 86005640 57030 86215680 140931 86274290 70162 86005680 57047 86222490 61480 86010660 87025 86224880 730365 86246970 54192 86251420...
  • Page 8 CONTROL PANEL – SCH172 86221970 17” SCRUBBER 01/03/07...
  • Page 9 PART NO. PRV NO. 86007130 72128 86007140 72130 86257090 72181 86276820 70740 OPEN 86215420 140888 86215860 140913 86231240 140429 86255910 73659 86006850 70393 86222310 57311 86005640 57030 86215680 140931 86251400 67495 86005680 57047 86222500 61482 86010660 87025 86224880 730365 86246970 54192 86274290 70162...
  • Page 10 CONTROL PANEL-QSC172 86221970 17” SCRUBBER 01/03/07...
  • Page 11 PART NO. PRV NO. 86007130 72128 86007140 72130 86257090 72181 86276820 70740 86218080 35359 86215420 140888 86215860 140913 86231240 140429 86255910 73659 86006850 70393 86222310 57311 86005640 57030 86215680 140931 86274290 70162 86005680 57047 86222490 61480 86010660 87025 86224880 730365 86246970 54192 86218070...

  • Page 12: Hour Meter

    HOUR METER 86221970 17” SCRUBBER 04/27/07 5-11...
  • Page 13 PART NO. PRV NO. 86267420 880283 86260500 880349 86005530 54154 86261240 29243 86261340 67457 DESCRIPTION WIRE, 3.5 BLK/18 79011 X 76040 WIRE ASM, HOUR METER METER, 12-48 VDC LED HOUR DIODE ASM, 76031 X 76031 RESISTOR ASM, 2.7K OHM 1 WATT 86221970 17”...
  • Page 14 HANDLE 5-13 86221970 17” SCRUBBER 01/03/07...
  • Page 15 PART NO. PRV NO. 86218620 38349 86004880 48079 86221880 51416 86221890 51417 86069430 140439 86216530 270143 86277230 70815 DESCRIPTION HANDLE, 17 IN SCRUBBER KNOB, 2.25 OD X 5/16-18 X 2.19 STUD LOCK, HANDLE, MALE LOCK, HANDLE, FEMALE BRKT, HANDLE MOUNT SUPPORT CAP, HANDLE SCR, 5/16-18 X 2.25 BSHCS SS 86221970 17”...

  • Page 16: Recovery Tank

    RECOVERY TANK 5-15 86221970 17” SCRUBBER 01/03/07 SCH172...
  • Page 17 PART NO. PRV NO. 86003340 28062 86006600 70114 86222860 620100 86003680 34380 86225290 75476 86225280 75475 86003010 27759 86246070 51352 86004290 39491 86004190 39337 86002390 20063 86225690 84204 86240130 39560 86004010 35274 86218100 35361 86216790 20109 86279880 27425 86215060 140967 86223820 70926 86222280...

  • Page 18: Scrub Brush/Pad Driver

    SCRUB BRUSH/PAD DRIVER 5-17 86221970 17” SCRUBBER 01/03/07...
  • Page 19 PART NO. PRV NO. 86000680 02464 86005070 51284 86276580 70694 86000650 02461 86000660 02462 86000670 02463 86000700 02509 86277160 70799 86004990 51076 DESCRIPTION PAD DRIVER, 17” BA LOCK, PAD CENTER SNAP, TWO STEP SCR, 8-32 X 3/4 PTHMS SS BRUSH, 17” POLYPRO BA BRUSH, NYLON BA BRUSH, 17”...
  • Page 20 SCRUB MOTOR/LIFT 5-19 86221970 17” SCRUBBER 01/03/07...
  • Page 21 PART NO. PRV NO. 86005320 53630 86010610 84203 86010540 84141 86282080 39567 82681470 39386 86082020 62878 86215990 149987 86070650 140711 86270830 57023 86259400 87205 86259410 87206 86231250 140430 86010670 87029 86007020 70673 86072600 14431 86278910 87003 86006740 70266 86073580 620043 86276800 70734 86010640...

  • Page 22: Solution Tank

    SOLUTION TANK 5-21 86221970 17” SCRUBBER 01/03/07...
  • Page 23 PART NO. PRV NO. 86239620 41385 86010660 87025 86276700 70716 86003210 27906 86278260 70298 86215820 140886 86234790 27827 86279880 27425 86282110 39571 86197940 40027 86069410 140406 86224430 730375 86221750 51418 86222280 57307 86006860 70403 86006980 70591 86010650 87018 86282090 39569 86281640 39471 86240430...
  • Page 24 SQUEEGEE 5-23 86221970 17” SCRUBBER 01/03/07...
  • Page 25 PART NO. PRV NO. 86223740 70872 86225450 78936 86218050 35356 86219690 48080 86215800 140883 86219730 48112 86224950 730366 86215360 730372 86007370 730058 86007260 730003 86007610 730227 86224240 70870 86225790 87504 86011020 89202 86001350 140390 86224820 730361 86222300 57309 86224840 730362 86223750 70873 86223760...

  • Page 26: Squeegee Lift

    SQUEEGEE LIFT 5-25 86221970 17” SCRUBBER 01/03/07...
  • Page 27 PART NO. PRV NO. 86005680 57047 86270830 57023 86249050 82058 86008670 80606 86007020 70673 86228840 09124 86259400 87205 86006320 66338 86259410 87206 86239670 41386 86003220 27921 86246460 51351 86005640 57030 86136860 70356 DESCRIPTION NUT, 1/4-20 HEX NYLOCK NUT, 5/16-18 HEX NYLOCK SS PIN, CLEVIS 3/8 X 3.50 PLTD COTTER, 3/8”...
  • Page 28 VACUUM 5-27 86221970 17” SCRUBBER 01/03/07...
  • Page 29 70011 86010630 87013 DESCRIPTION GASKET, VAC MTR VAC MOTOR, 24VDC 2ST TD BRUSH SET, 24/36V VAC, WINDSOR ELBOW, VAC MUFFLER 90 DEG BRKT, VAC MOTOR MNT BRKT, MUFFLER 172 MUFFLER, VACUUM FOAM 172 BLANKET, SOUND REDUCTION SCR, 1/4-20 X 5/8 HHCS SS NP WASHER, 1/4 ID X 5/8 OD SS 86221970 17”...

  • Page 30: Wheel & Frame

    WHEEL & FRAME 5-29 86221970 17” SCRUBBER 01/03/07...
  • Page 31 PART NO. PRV NO. 86003700 34421 86223770 70875 86011020 89202 86216400 140903 86078910 620029 86270830 57023 86070600 140692 86271770 57252 86002340 18045 86279130 87083 86006560 70083 86276770 70726 86010650 87018 86253870 730043 86082060 62893 86273740 70010 86010810 87191 86259870 89223 86276750 70722 OPEN...

  • Page 32: Onboard Charger

    ONBOARD CHARGER 5-31 86221970 17” SCRUBBER 01/03/07...
  • Page 33 PART NO. PRV NO. 86216670 270051 86215790 140880 86215780 140879 86218060 35357 86220720 501033 86234390 23725 86217090 23726 86217100 23727 86217110 23728 86217130 23730 86017340 23731 86274290 70162 86279190 87095 86198450 20005 DESCRIPTION CHARGER, CURTIS 1208FS MOD BRKT, 17 IN CHARGER BRKT, TOP 17 IN CHARGER GASKET, 4.25 L X .55 W X .38 LABEL, CHARGER 1608FS...
  • Page 34 WIRING–BATTERY CABLES 5-33 86221970 17” SCRUBBER 01/03/07...
  • Page 35 PART NO. PRV NO. 86260470 880268 86225330 78942 86002540 23174 86002510 23125 DESCRIPTION WIRE ASM, 26.5 6G RNG X C TERM TRAY, BATTERY INJ MOLDED BATTERY CBL ASM, 2 X 21 W/ANDRSN WIRE, 4 X 15 B CLAMP X B CLAMP 86221970 17”...
  • Page 36 WIRING-MAIN HARNESS- ALL EXCEPT QSC172, SCHC172 & SCH172 5-35 2 BLK BRUSH MOTOR 1 RED 20 RED 21 BLK 4 BLK MOTOR 3 RED BRUSH 3 RED SWITCH SWITCH 17 RED POSITIVE TERMINAL 2 BLK BRUSH REVERSE CHARGING 1 RED INHIBIT RELAY 20 RED...
  • Page 37 WIRING-MAIN HARNESS-ALL EXCEPT QSC172, SCHC172 & SCH172 PART NO. PRV NO. 86218890 880448 86261230 29242 86261240 29243 86261340 67457 86268570 88401 86267420 880283 86267410 880282 86267620 880306 86268380 88286 86226170 880447 86226190 880450 86268030 880456 86226210 880457 DESCRIPTION HARNESS, SCRUBBER 172 DIODE ASM, 76031 X 76042 DIODE ASM, 76031 X 76031 RESISTOR ASM, 2.7K OHM 1 WATT...
  • Page 38 WIRING-MAIN HARNESS-SCHC172 5-37 86221970 17” SCRUBBER 01/03/07...
  • Page 39 PART NO. PRV NO. 86218890 880448 86261230 29242 86261240 29243 86261340 67457 86268570 88401 86267420 880283 86267410 880282 86267620 880306 86268380 88286 86267360 880271 86226170 880447 86226190 880450 86268030 880456 86226210 880457 86014120 WIRING-MAIN HARNESS-SCHC172 DESCRIPTION HARNESS, SCRUBBER 172 DIODE ASM, 76031 X 76042 DIODE ASM, 76031 X 76031 RESISTOR ASM, 2.7K OHM 1 WATT WIRE, 3”...
  • Page 40 WIRING-MAIN HARNESS-SCH172 5-39 86221970 17” SCRUBBER 01/03/07...
  • Page 41 PART NO. PRV NO. 86218890 880448 86261230 29242 86261240 29243 86261340 67457 86268570 88401 86267420 880283 86267410 880282 86267620 880306 86268380 88286 86267360 880271 86226170 880447 86267430 880284 86231500 80882 86251400 67495 WIRING-MAIN HARNESS-SCH172 DESCRIPTION HARNESS, SCRUBBER 172 DIODE ASM, 76031 X 76042 DIODE ASM, 76031 X 76031 RESISTOR ASM, 2.7K OHM 1 WATT WIRE, 3”...
  • Page 42 WIRING-MAIN HARNESS-QSC172 5-41 86221970 17” SCRUBBER 01/03/07...
  • Page 43 PART NO. PRV NO. 86218890 880448 86261230 29242 86261240 29243 86261340 67457 86268570 88401 86267420 880283 86267410 880282 86267620 880306 86268380 88286 86226170 880447 86267430 880284 DESCRIPTION HARNESS, SCRUBBER 172 DIODE ASM, 76031 X 76042 DIODE ASM, 76031 X 76031 RESISTOR ASM, 2.7K OHM 1 WATT WIRE, 3”...
  • Page 44 WIRING-SCHEMATIC- ALL EXCEPT QSC172, SCHC172 & SCH172 86267420 PRV NO. 880283 BATTERY METER VACUUM RELAY YELLOW FROM CHARGER 5-43 BRUSH MOTOR MOTOR 86268570 PRV NO. 88401 BRUSH REVERSE WIRE 11 86267620 PRV NO. 880306 BRUSH WIRE 17 POSITIVE TERMINAL BATTERY POWER 86221970 17”...
  • Page 45 BATTERY BUZZER MOTOR 86267420 PRV NO. 880283 BATTERY METER VACUUM RELAY POSITIVE TERMINAL BATTERY POWER 86221970 17” SCRUBBER 01/03/07 WIRING-SCHEMATIC-SCH172 BRUSH MOTOR 86268570 PRV NO. 88401 BRUSH REVERSE WIRE 11 86267620 86267420 PRV NO. 880306 PRV NO. 880283 BRUSH 86260470 - PRV NO. 880268 SOLENOID VALVE 86261240...
  • Page 46 WIRING-SCHEMATIC-SCHC172 BATTERY METER RELAY 86268030 PRV NO. 880456 RELAY YELLOW FROM CHARGER 5-45 BRUSH MOTOR MOTOR 86267420 PRV NO. 880283 86268570 PRV NO. 88401 BRUSH REVERSE 86267620 PRV NO. 880306 BRUSH VACUUM 86267360 - PRV NO. 880271 POSITIVE TERMINAL 86260470 PRV NO.
  • Page 47 MOTOR 86267420 PRV NO. 880283 86268570 PRV NO. 88401 BATTERY METER BRUSH REVERSE VACUUM POSITIVE TERMINAL BATTERY POWER 86221970 17” SCRUBBER 01/03/07 WIRING-SCHEMATIC-QSC172 SOLENOID VALVE BRUSH MOTOR WIRE 11 86267620 86267420 PRV NO. 880306 PRV NO. 880283 BRUSH HOUR METER 86260470 - PRV NO.

  • Page 48: Suggested Spare Parts

    SUGGESTED SPARE PARTS PART NO. PRV NO. 86215680 140931 BREAKER, 25A 250VAC 50VDC 86135310 140686 BRUSH SET, 24/36V VAC, WINDSOR 86001360 140394 BRUSH SET, CCL MOTORS 86002510 23125 WIRE 4 X 15 BCLAMP X BCLAMP 86002540 23174 WIRE ASM 2X21 BATTERY W/ ANDERSON...
