INSTRUCTION MANUAL

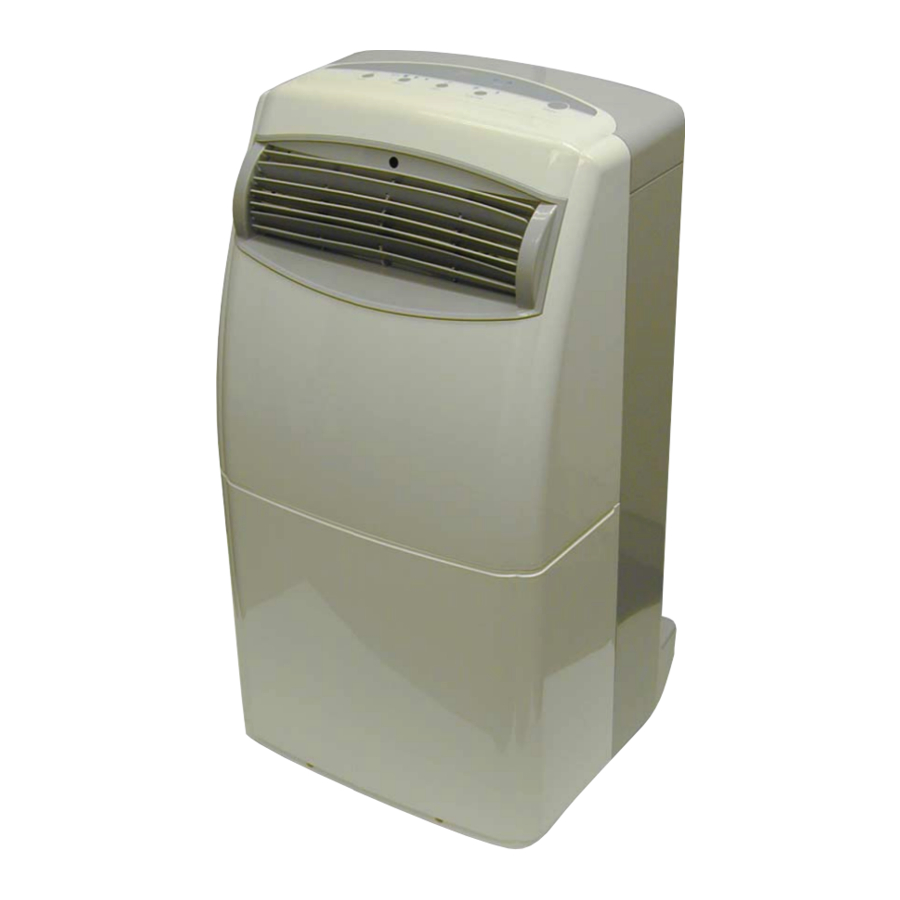

PACR12 PORTABLE AIR CONDITIONER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PACR12 and is the answer not in the manual?

Questions and answers

Related Manuals for Windchaser PACR12

Summary of Contents for Windchaser PACR12

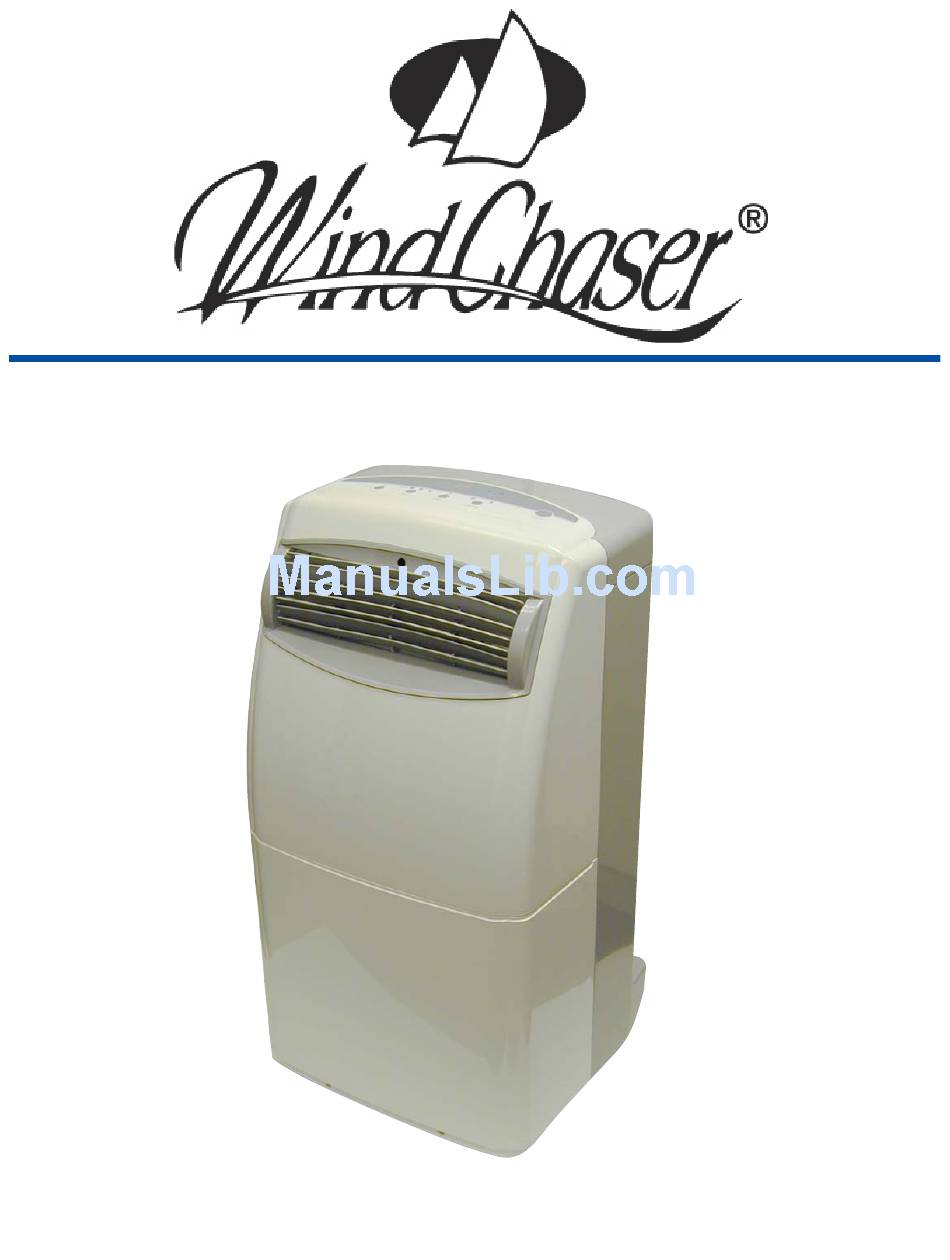

  • Page 1 INSTRUCTION MANUAL PACR12 PORTABLE AIR CONDITIONER...

  • Page 2: Before Initial Use

    BEFORE INITIAL USE Attach your purchase receipt here For your reference: Serial No: Name and Address of Dealer: UNPACKING INSTRUCTIONS 1. Place the unit in an upright position before unpacking. 2. Slide off the two packing straps. DO NOT CUT THEM. Save them for future use.

  • Page 3: Table Of Contents

    PLEASE CAREFULLY READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE SAFETY INSTRUCTIONS LEARN INTELLIGENT AIR CONDITIONING IMPORTANT INSTRUCTIONS ENERGY SAVING TIPS TECHNICAL SPECIFICATIONS PARTS ILLSTRATION CONTINUOUS DRAIN FEATURE EXHAUST KIT INSTALLATION OPERATING INSTRUCTIONS AND FUNCTIONS CLEANING THE UNIT TROUBLESHOOTING GUIDE PRODUCT LIMITED WARRANTY ONTENTS...

  • Page 4: Safety Instructions

    Do not damage the power cord. Never lay down the unit while it is working. Always keep it in an upright position to avoid any damage to the cooling system. Operate this unit in an ambient temperature of 90 or lower. Be sure that the air inlets and outlets are not blocked or covered up.

  • Page 5: Important Instructions

    IMPORTANT INSTRUCTIONS Do not install and use your air conditioner before completely reading these instructions. This will help you optimize the operation of your air conditioner. Make sure that you haven’t lost the small box placed on the top of the unit; it contains all accessories, which are essential for use.

  • Page 6: Control Panel

    Front View 1. Control Panel 2. Cold Air Outlet 3. Adjustable Louvers Control Panel 1. Power ON/OFF Button 2. Function Button 3. Timer Setting Button 4. A/C Fan Speed Button 5. Sleep Function Button PARTS ILLUSTRATION Rear View 4. Air Filter 5.

  • Page 7: Continuous Drain Feature

    CONTINUOUS DRAIN FEATURE There are two continuous drain features in this unit. 1.Drain (A) runs through the exhaust hose and offers continuous drainage via a built-in pump. When the cap is on Drain (B) and the condensation tank fills to capacity, Drain (A)’s pump will automatically turn on and pump the condensation out of the unit.

  • Page 8: Window Installation

    EXHUAST KIT INSTALLATION WINDOW INSTALLATION 1. Drain Hose (A) 2. Grey Hose Connector 3. Exhaust Hose NOTE: FOR DEHUMIDIFYING MODE, THE EXHAUST HOSE DOES NOT NEED TO BE INSTALLED. 1) Remove the adapter cover from the wall/window panel adapter and attach the wall/window panel adapter to Panel (A) of the window kit.

  • Page 9: Wall Installation

    EXHUAST KIT INSTALLATION (CONTINUED) WALL INSTALLATION 1) Drill a 5 1/2 inch hole in the wall at least 16 inches above the floor line. You should take precautions by having a carpenter or an electrician select the location for the hole and make the hole for you in order to ensure your safety and to avoid cutting into a support beam or electrical wires.

  • Page 10: Operating Instructions And Functions

    OPERATING INSTRUCTIONS AND FUNCTIONS The air conditioner can now be plugged into a 120V/60Hz dedicated 15amp socket. You are advised not to use an extension cord, however, if this is unaviodable, the extension cord must be 14 gauge, grounded at both ends and not more than 30 feet long. The compressor is an essential component of the appliance for producing cold air.

  • Page 11: Remote Control Functions

    CONTROL PANEL FUNCTIONS CONTINUED 6. L.C.D. DISPLAY: Indicates the room temperature and the timer and temperature settings. The unit’s LED displays the room temperature as soon as the power is turned on and after the timer or temperature is set. 7.

  • Page 12: Air Filter(S)

    Before cleaning the unit, turn it off and unplug it from the outlet. For safety reasons, never wash the air conditioner. EXTERIOR SURFACES OF THE UNIT Clean the air conditioner by using a damp sponge, and dry it with a clean, soft cloth. Never use alcohol or any product containing solvents.

  • Page 13: Troubleshooting Guide

    TROUBLESHOOTING GUIDE When the air conditioner does not work, it is sometimes a minor problem which the user can handle. Before calling customer service, please check the following points to see if they solve your problem. Additional troubleshooting tips may be found on our website at: www.windchaserproducts.com.

  • Page 14: Product Limited Warranty

    PRODUCT LIMITED WARRANTY This warranty applies to new product only and excludes optional accessories and attachments. Extended compressor warranty applies only to product with manufacturing dates beginning January 1,1998. During the first year from the date of original purchase, this product is warranted to be free from defects in materials or workmanship under normal use, service and maintenance.
  • Page 15 Before returning this product, call for troubleshooting assistance. If you purchased the unit from a retailer, contact WindChaser Products customer service at 1-800-405-2943 for assistance. If you purchased this unit from an air conditioning wholesaler or contractor, please contact them first for assistance;...
  • Page 16 WindChaser Products: Developers of Fans, Heaters, Air-Treatment Products and Portable and Mini-Split Air-Conditioners WindChaser Products, Inc. 4130 Del Rey Avenue Marina Del Rey, CA 90292 Phone: (310) 827-8615 Toll Free: (800) 405-2943 Fax: (310) 827-8566 www.windchaserproducts.com International Comfort Products Corporation (Canada) 6060 Burnside Court, Unit 1•...
