CloudEngine 7800&6800&5800 Series Switches
Hardware Description
Table 5-2 Pin assignments of a ground cable
X1
OT6-4
Connection
A ground cable grounds a device to protect it from lightning and electromagnetic interference.
A ground cable is connected to a chassis in the following way:
l
l

5.5 Console Cable

Appearance and Structure
Figure 5-8

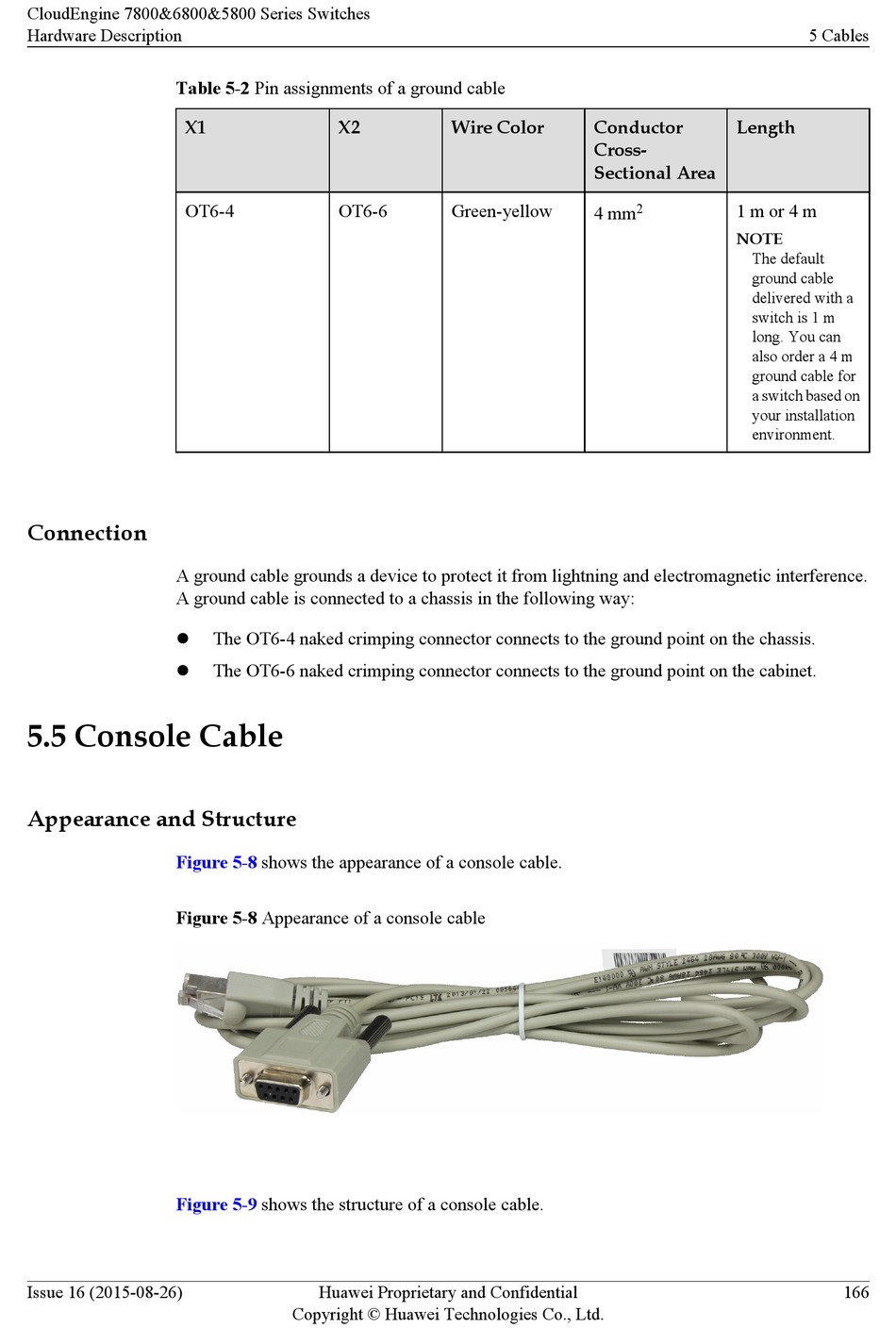

Figure 5-8 Appearance of a console cable
Figure 5-9
Issue 16 (2015-08-26)
X2
OT6-6
The OT6-4 naked crimping connector connects to the ground point on the chassis.
The OT6-6 naked crimping connector connects to the ground point on the cabinet.
shows the appearance of a console cable.
shows the structure of a console cable.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Wire Color Conductor
Cross-
Sectional Area
Green-yellow
4 mm
Length
2 1 m or 4 m
NOTE
The default
ground cable
delivered with a
switch is 1 m
long. You can
also order a 4 m
ground cable for
a switch based on
your installation
environment.
5 Cables
166
