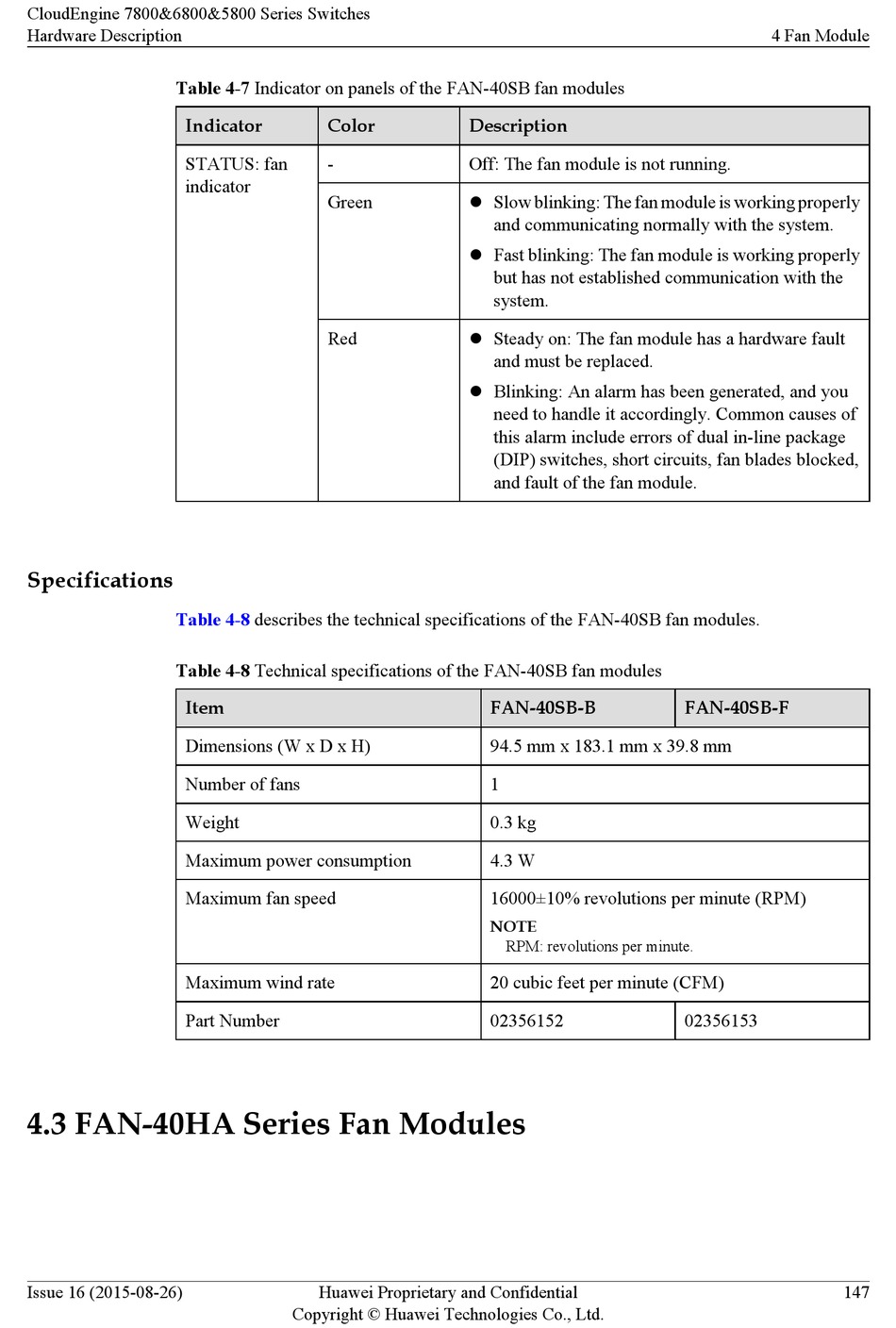

Table 4-7 Indicator on panels of the FAN-40SB fan modules
Indicator
STATUS: fan
indicator
Specifications
Table 4-8
Table 4-8 Technical specifications of the FAN-40SB fan modules
Item
Dimensions (W x D x H)
Number of fans
Weight
Maximum power consumption
Maximum fan speed
Maximum wind rate
Part Number

4.3 FAN-40HA Series Fan Modules

Issue 16 (2015-08-26)
Color
-
Green
Red
describes the technical specifications of the FAN-40SB fan modules.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Description
Off: The fan module is not running.
l Slow blinking: The fan module is working properly
and communicating normally with the system.
l Fast blinking: The fan module is working properly
but has not established communication with the
system.
l Steady on: The fan module has a hardware fault
and must be replaced.
l Blinking: An alarm has been generated, and you
need to handle it accordingly. Common causes of
this alarm include errors of dual in-line package
(DIP) switches, short circuits, fan blades blocked,
and fault of the fan module.
FAN-40SB-B
94.5 mm x 183.1 mm x 39.8 mm
1
0.3 kg
4.3 W
16000±10% revolutions per minute (RPM)
NOTE
RPM: revolutions per minute.
20 cubic feet per minute (CFM)
02356152
4 Fan Module
FAN-40SB-F
02356153
