Williams Sound Personal PA PPA 375 Specifications

Williams Sound Personal PA PPA 375 Specifications

Fm listening system

Advertisement

Quick Links

Personal PA
Description:
The PPA 375 features the T35 high performance transmitter: powerful microprocessor, sleek digital
display, easy-to-use menu controls. The T35 configures itself to the appropriate setting,
taking the guesswork out of complicated audio installation. Operating up to 1000 feet, the T35 is
ideal for auditoriums, theaters or other large venues where excellent coverage area is essential.
System includes four impact-resistant R35 single-channel receivers. The R35 receiver will operate up
to 100 hours for long-lasting performance!
Applications:
• Churches • Schools • Auditoriums • Conference Rooms • Theaters

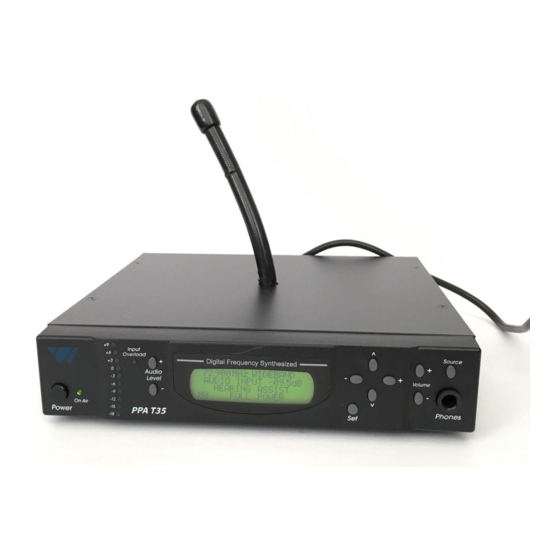

PPA T35 Transmitter:
Dimensions, Weight:
Color:
Rack Mount:
Power:
Temperature Range:
Operating Freqs:
Frequency Accuracy:
Deviation:
Pre-Emphasis:
RF Field Strength:
Nominal Range:
Audio Proc. Functions:
Frequency Response:
Signal-to-Noise Ratio:
*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE.
T35 Front Panel:
On Air
Power
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2008, Williams Sound Corp. CAT 100H
FM Listening System •
8.45" (21.5 cm) W x 8.18" (20.8 cm) D x 1.72" (4.4 cm) H, 3.1 lbs (1.4 kg)
Black with white legends
One EIA rack space high, 1/2 space wide
1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006
(double) Rack Mount Kits
Wall mount Class II transformer (TFP 016)
Input: 120 VAC, 60 Hz, 17 W
Output: 24 VAC, 500 mA with 3-pin Molex® plug
Approvals: UL, CSA listed
Operating:0° C to 40° C (+32° F to +104° F)
Storage:-20° C to 70° C (-4° F to +158° F)
72.1-75.9 MHz* , 10 wideband channels (selectable), 7 non-standard wideband channels (selec-
table) OR 72.025-75.975 MHz, 77 narrowband channels (selectable)
±.005% stability, 0-50˚ C
Wideband: ± 75 kHz maximum. Narrowband: ± 5 kHz maximum.
Wideband: 75 µsec. Narrowband: 300 µsec
Does not exceed 80 mV/m at 3 m
Up to 1000 ft (304 m) Note: Maximum transmitter range is achieved using the ANT 005 coaxial
antenna
Reduced or Normal Compressor Gain
Compression Slope Control
High Pass and Low Pass Filter Frequency control
22 – 16000 Hz, +1, -3 dB (adjustable)
74 dB transmitted
+9
Input
Digital Frequency Synthesized
+6
Overload
+
+3
0
Audio
-3
Level
-6
-9
-12
-15
PPA T35
-18
Model PPA 375
-
^
Set
1
^
Source
+
+
Volume
-
Phones
