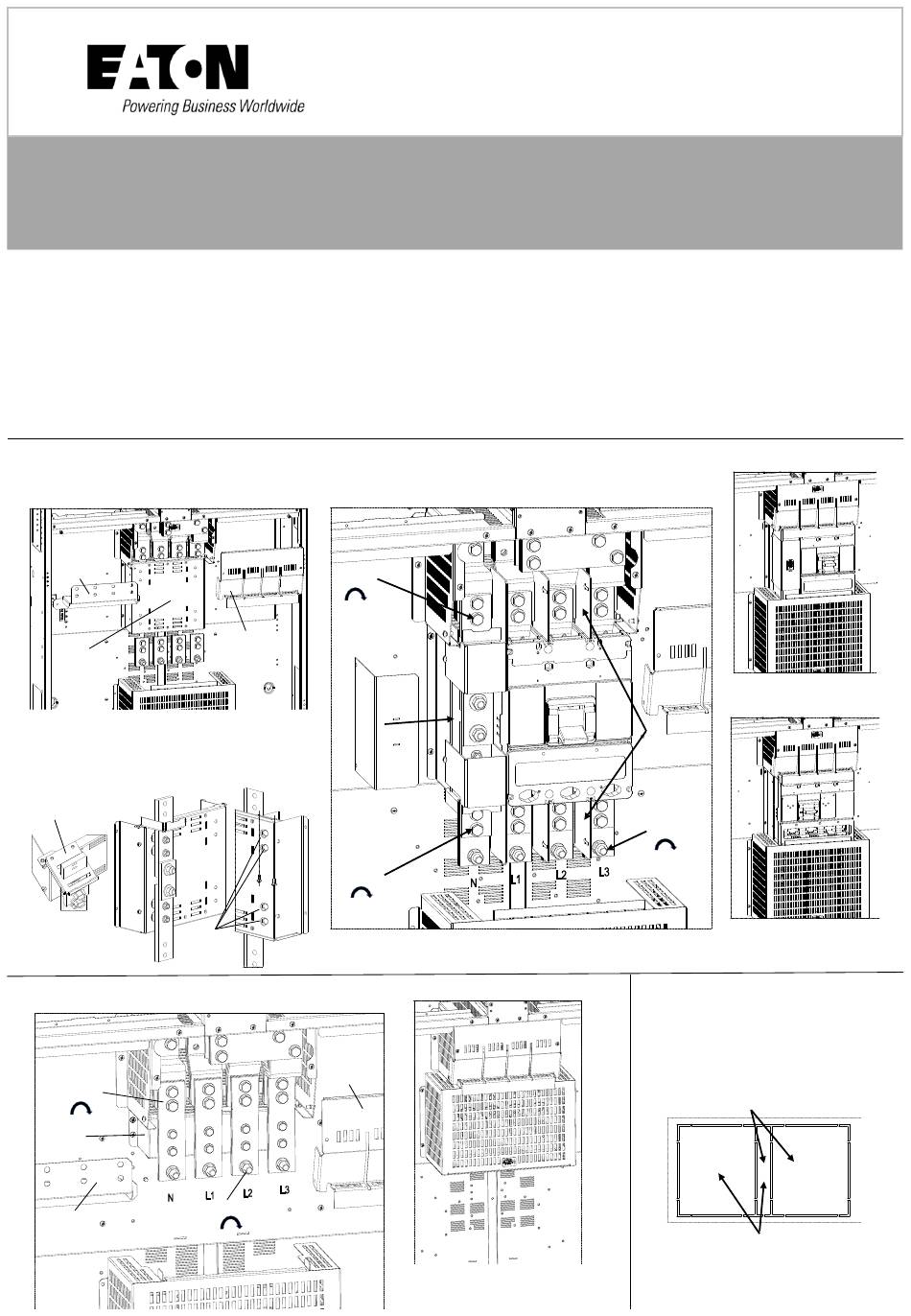

MEMSHIELD 4 INSTALLATION INSTRUCTIONS FOR 800A PANELBOARDS / PAN ASSEMBLIES
EM4PB680, EM4PB1280, EM4PB1680
EM4PBP680, EM4PBP1280, EM4PBP1680
Instruction Leaflet LT1223 (02/19)
IMPORTANT NOTES
1. This product should be installed, commissioned and maintained by or under the supervision of a competent electrician in
accordance with current electrical engineering Codes of Practice, Requirements for the Electrical Installations (IET Wiring Regulations
BS7671), Construction (Design and Management) Regulations, HSG150 – Health and Safety in Construction, Statutory requirements
and any Specific instruction issued by the Company.
2. After completing the installation and testing of this product it is essential that this leaflet is drawn to the attention of the person
responsible for its future operation and maintenance, and is at all times available for ready reference.
3. The notes assume throughout that the product is disconnected from the supply. It is essential that this is done before any work is
carried out.
4. These Panelboards are only designed for use with EATON MCCBs. Failure to comply will result in invalid warranty and certification.
Panelboards are supplied as Bottom Entry and Form 4 Type 6 Group Mounted without modification
Incoming Modules
800A Incoming MCCB EM4PBK804
Transit
mount
discard
Fit
Incoming
Mount
General Note: When fixing M5 thread forming
screws tightening torque is 3.8 Nm
800A Incoming Neutral EM4PBNK80
Fit shield
Bottom
Fit neutral
Entry
800A Incoming Direct Cable EM4PBK804L
30Nm
Fit
Mount
Transit
mount
discard
30Nm
Remove
for access
30Nm
Remove
for access
46Nm
Secure
all
shields
4 Pole -Bottom Entry
Form 4 Type 6
3 Pole & Neutral - Bottom Entry
Form 4 Type 6 Group Mounted
Fit
Interphase
shields
46Nm
4 Pole - Bottom Entry
Form 4 Type 6 Group Mounted
MCCB Incoming Cover
Knockout Removal
Do not remove for direct cable
incomer
Remove for Bottom Entry 3 pole and N
Remove for Bottom Entry 4 pole
Secure
all
shields
Secure
all
shields
