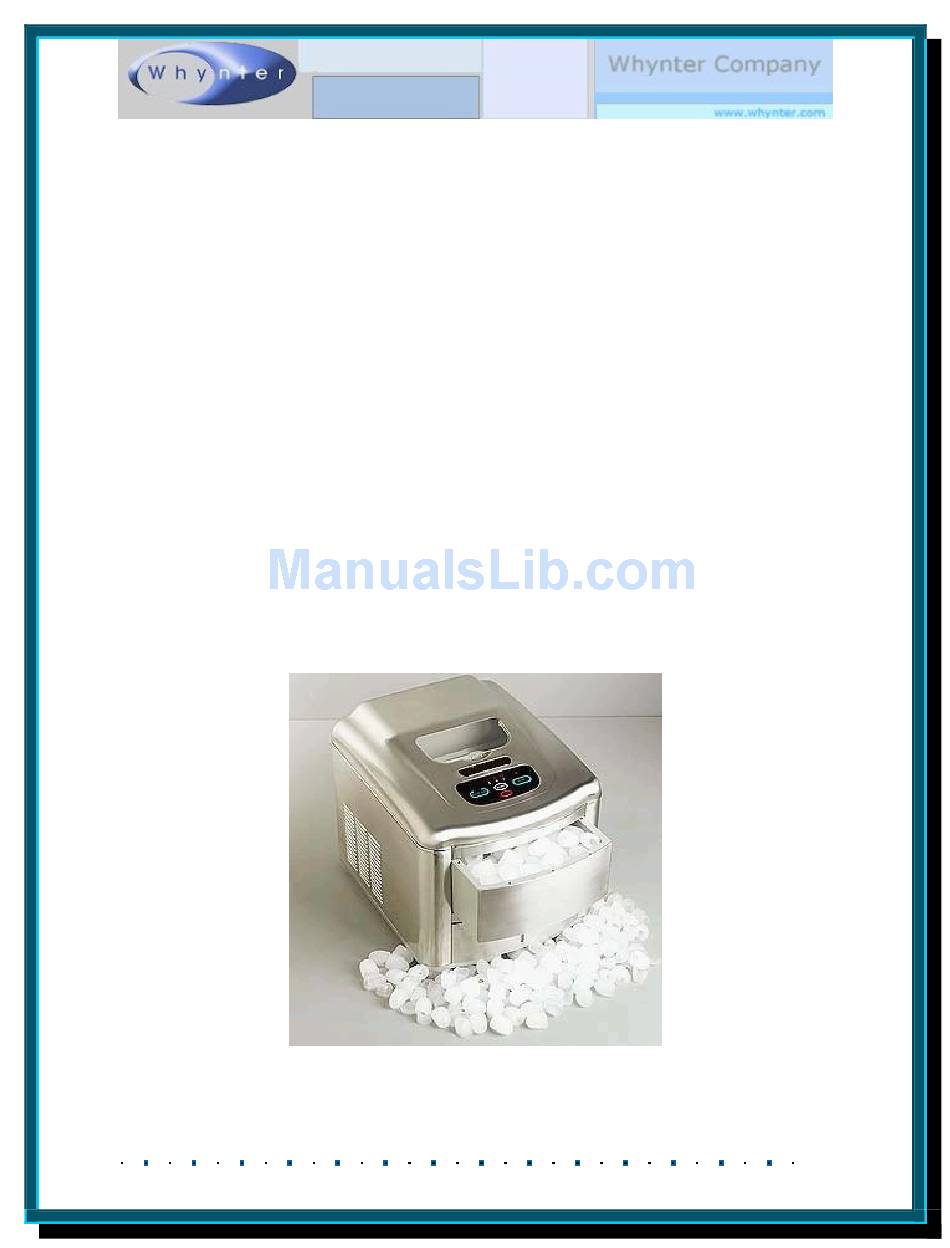

- Page 1 HOME ICE MACHINE USER INSTRUCTION MANUAL MODEL SNO T-2M/T-2MA & MODEL SNO T-2C/T-2CA T-2 Version 08/05...
- Page 2 Introduction This instruction manual covers the operation of the SNO Ice Machine models T-2M/T-2MA and T-2C/T-2CA. Both models provide the same functionality, the difference being cosmetic. Model T2-M has a brushed/stainless steel finish and model T-2C has a shiny/bright chrome finish. The “A” designation refers the units equipped with the optional functionality of the “Direct Water Supply”...
- Page 3 T-2 Version 08/05...
- Page 4 Referencing images on Page 3 Ice Cube Drawer Water Level Indicator Cover with Window Mains Water Input Water Tank Removable Lid Mains Lead Socket Detail of Function Display: T-2 Version 08/05 Water Tank Function Display On/Off Switch Mains Water Control Float Mains Lead...
- Page 5 Preparing the Appliance for Use Unpack the appliance and place it on a sturdy level surface. It is recommended that the packaging is retained for secure movement or transport. The appliance operates at its optimum performance in a normal room temperature of F/20 The refrigerant inside the appliance must have time to settle following transportation and a minimum stabilization period of three hours is recommended prior to switching on the...
- Page 6 Appliance Operation Plug the appliance mains electricity lead into a suitable supply and switch on the ON/OFF switch situated on the rear of the appliance. The ON/OFF switch is illuminated and will light up. The appliance should be positioned for easy access to the ON/OFF switch and mains plug to facilitate rapid switch off and appliance isolation when required.
- Page 7 Appliance Operation (Continued) deposited into the Ice Drawer recess rather than the Ice Drawer itself. If the appliance does beep continuously ensure the Ice Cube Drawer is fully in its recess. The appliance will continue to produce ice cubes at approximately 12 minute intervals. Some variation in ice cube size should be expected on initial switch on however variation should be minimized once the appliance has stabilized.
- Page 8 After Use When the appliance is not to be used for some time, for example for periods exceeding 48 hours, it is recommended that it be disconnected from the electrical supply and any remaining ice cubes and water be removed. Excess water in the Ice Cube Drawer, the Water Tank and water tray should be removed using kitchen towels or similar absorbent material.
- Page 9 Hints and Tips Do not place the appliance on its side or upside down. Pay particular attention to this when the appliance is being moved or transported. Ventilation grilles must not be obstructed. Do not immerse the appliance in water or other liquids. The appliance has internal moving parts.
- Page 10 Problems and Malfunctions If the indicator light on WATERTANK is illuminated red the water tank level is low and requires topping up. If the L and START indicator lights flash and the appliance beeps then the Ice Cube Drawer is not positioned correctly and should be removed and replaced firmly into its recess. There are a number of sensors associated with the Ice Cube Drawer and the Water Tank and faulty positioning of these units is the most common cause of malfunction.
- Page 11 Appliance Technical Data Voltage and Frequency: Maximum Power: Water Tank Capacity: Ice Cube Cycle Time: Dimensions: Net weight: The number of ice cubes produced per cycle is 12. The Ice Cube Drawer holds approximately 60 cubes or 1 Kg of ice. The appliance produces between 16 and 20 Kg. of ice in a 24 hour period dependent on water temperature and ambient conditions.
- Page 12 ONE YEAR LIMITED WARRANTY This WHYNTER SNO portable ice maker is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service. Should your portable ice maker prove defective within one year from the date of purchase, return the defective part or unit, freight prepaid (with two months of purchase;...
