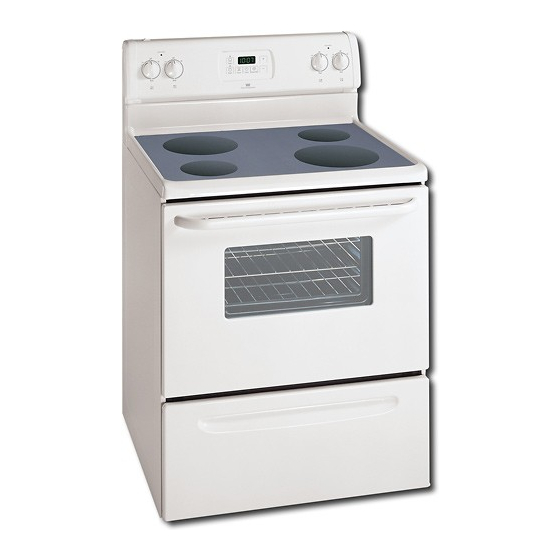

Electric Range
Use & Care Manual
ES200 control, self-cleaning oven with
ceramic cooktop
Questions?
1-800-944-9044
1-800-668-4606
Visit the Frigidaire Web Site at:
http://www.frigidaire.com
READ AND SAVE THESE INSTRUCTIONS
(United States)
(Canada)
Welcome.......................................... 2
Important Safety Instructions .....3-4
Features at a Glance ...................... 5
Before Setting Oven Controls ....6-7
Setting Surface Controls ............... 8
Oven Control Functions ................ 9
Setting Oven Controls ............ 10-12
Self Cleaning ........................... 13-14
General Care & Cleaning ....... 15-18
Adjusting Oven Temperature ....... 18
Solutions to Common Problems ........................
Warranty ......................... Back Page
19
)
316417069 (0809
Advertisement
Table of Contents
Related Manuals for White-Westinghouse ES200
Summary of Contents for White-Westinghouse ES200
-
Page 1: Table Of Contents
Use & Care Manual ES200 control, self-cleaning oven with ceramic cooktop Questions? 1-800-944-9044 (United States) 1-800-668-4606 (Canada) Visit the Frigidaire Web Site at: http://www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS Welcome... 2 Important Safety Instructions ...3-4 Features at a Glance ... 5 Before Setting Oven Controls ...6-7... -
Page 2: Welcome
Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases. PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS This Use &... -
Page 3: Important Safety Instructions
Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage. - Page 4 Important Safety Instructions IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP • Know which knob controls each surface heating unit. Place a pan of food on the unit before turning it on, and turn the unit off before removing the pan. • Use Proper Pan Size—This appliance is equipped with one or more surface units of different sizes.
-
Page 5: Features At A Glance
Your Electric Range Features Include: 1. Electronic Oven Control with Kitchen Timer. 2. Left Front Single Radiant Element Control. 3. Left Rear Single Radiant Element Control. 4. Right Rear Single Radiant Element Control. 5. Right Front Single Radiant Element Control. 6. -
Page 6: Before Setting Oven Controls
Before Setting Oven Controls Fig. 1 Arranging Oven Racks & Roasting Shelf ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when using the oven. Recommended Rack Positions for Broiling, Baking & Roasting: Food Broiling hamburgers &... - Page 7 Before Setting Oven Controls About the Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop.
-
Page 8: Setting Surface Controls
Using proper cookware The size and type of cookware used will influence the setting needed for best cooking results. Cookware should have flat bottoms that make good contact with the entire surface heating element (See Fig. 1). Check for flatness by rotating a ruler across the bottom of the cookware (See Fig. -
Page 9: Oven Control Functions
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. BROIL PAD— Used to select the variable broil function. CLOCK PAD— Used to set the time of day. TIMER ON/OFF PAD—... -
Page 10: Setting Oven Controls
Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00". -
Page 11: To Set Or Change The Temperature For Baking
To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: 1. Press . "— — —" appears in the display. 2. -
Page 12: Setting Oven Controls
To Set for Broiling: 1. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. 2. Press . " — — "will appear in display. 3. Press and hold the the display. -
Page 13: Self Cleaning
During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range. -
Page 14: Starting The Self-Clean Cycle
Starting the Self-Clean Cycle For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for heavier soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle. -
Page 15: Care And Cleaning
Surfaces Aluminum (Trim Pieces) & Vinyl Painted and Plastic Control Knobs, Body Parts, and Decorative Trim Stainless Steel, Chrome Control Panel, Decorative Trim Porcelain Enamel Broiler Pan and Insert, Door Liner, Body Parts, Warmer Drawer (some models) Oven Racks Oven door Ceramic Cooktop Care &... -
Page 16: Cooktop Cleaning & Maintenance
Cooktop Cleaning & Maintenance Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop. Note: Additional cooktop cleaning cream may be ordered by visiting the Frigidaire website at www.frigidaire.com Prior to using your cooktop for the first time, apply some of the cooktop cleaning cream supplied with your new range. Buff with a non-abrasive cloth or pad (such as a 3M Scotch-Brite®... -
Page 17: Removing And Replacing The Lift-Off Oven Door
Cleaning Recommendations for the Ceramic Glass Cooktop (cont’d) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. •... -
Page 18: Care And Cleaning Of Stainless Steel (Some Models)
Changing the Oven Light (some models) Care and Cleaning of Stainless Steel (some models) Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. Refer to the Care & Cleaning Table for detailed cleaning instructions. Adjusting Your Oven Temperature Your oven control has been precisely set at the factory. -
Page 19: Before You Call
Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these problems are provided with the problem listed: Range is not level - (1) Poor installation. -
Page 20: Major Appliance Warranty Information
Major Appliance Warranty Information Your appliance is covered by a limited 90 day warranty. For the first 90 days from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
