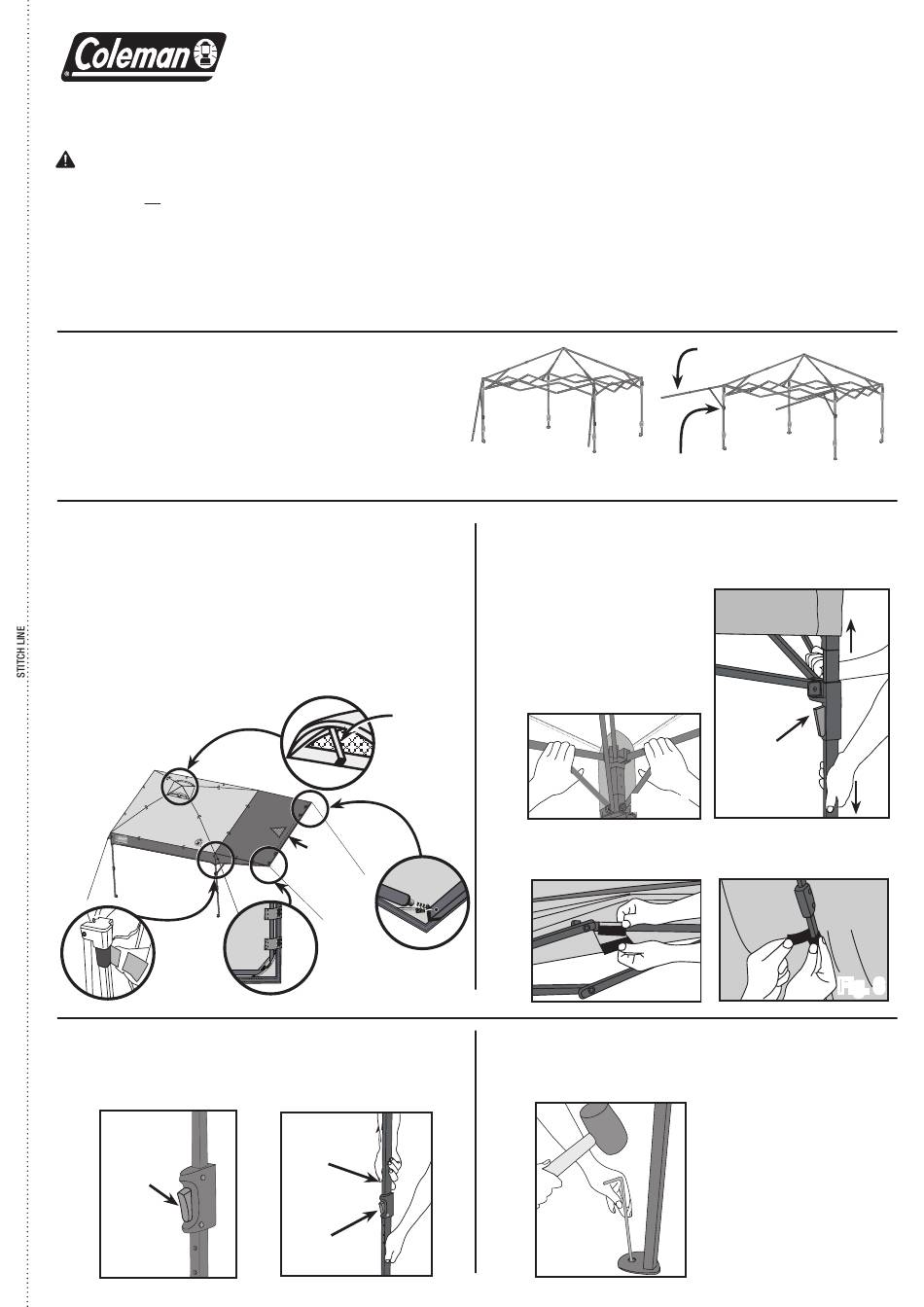

Before you begin
• Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to install your shelter.
WARNING: Keep clear of overhead power lines.
• Do not set up your shelter under trees because of potential lightning strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• For best results in windy conditions, position narrow end of shelter into the wind.
• Do not drop shelter.
• Do not bounce shelter bag on its end to remove shelter, as these actions may damage the frame.
• THIS RECREATIONAL PRODUCT REQUIRES A MINIMUM OF TWO PEOPLE TO ASSEMBLE.
• Under no circumstances should this product be used to cover automobiles, marine products or similar items.
• This shelter is not designed for use as a permanent structure.
CAUTION: Avoid pinch points when opening and closing the shelter frame.
1
Extend the Shelter Frame
• With two persons standing at diagonal corners of the
structure, grab the leg, and pull out to unfold frame. (Fig. 1)
NOTE: Do not unfold frame completely. This will allow
easier fit for draping shelter top over frame.
• Pull up sliding bracket located on upper portion of leg to
extend the awning pole until push button snaps into place.
This will ensure awning pole is fully extended. (Fig. 2)
2
Set up the Shelter
• Attach vent supports to vent with hook and loop
fasteners. (Fig. 3A)
• Drape shelter top over frame and insert awning poles to
pole pockets at corners of the awning.
• Insert horizontal awning pole in pole sleeve at edge of awning,
assemble the horizontal awning pole with awning pole
(Fig. 3B), then insert pole ends into pole pockets. (Fig. 3C)
• Attach hook and loop fasteners, located on corners of
shelter top, to four corners at frame posts. (Fig. 3 & 3D)
Fig. 3
Fig. 3D
3
Adjust the Height
• Adjust desired height until push button locks into place,
making sure all four posts are level. (Fig. 7 & 8)
Push
Button
Fig. 7
SHELTER SETUP INSTRUCTIONS
Vent
Support
Fig. 3A
Horizontal
Awning
Pole
Fig. 3B
Fig. 3C
Upper
Portion
of Leg
Push
Button
Fig. 8
MODEL 2000015507
Fig. 1
• Pull up sliding bracket located on upper portion of leg until push
button snaps into place. (Fig. 4). This will ensure top of frame is
fully extended.
HANDY TIP: To fully engage the
push button, grip the top and
bottom frame members and
squeeze as shown in Fig. 4A. Be
careful to avoid pinch points.
Fig. 4A
• Secure shelter top to frame with hook & loop fasteners provided.
(Fig. 5 & 6)
Fig. 5
4
Stake the Shelter
• Secure shelter by driving stakes through the holes in the
base of each frame post. (Fig. 9)
Fig. 9
Awning Pole
Sliding
Fig. 2
Bracket
Push Button
Fig. 4
Fig. 6
(continued on other side)
