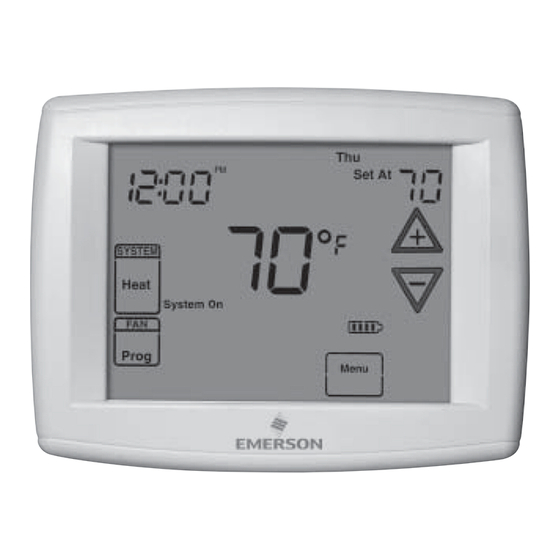

Big blue commercial universal non-programmable touchscreen thermostat with damper or economizer control and automatic heat/cool changeover option for single stage, multi-stage, heat pump

Advertisement

Quick Links

Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING THIS
CONTROL COULD CAUSE PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
APPLICATIONS
THERMOSTAT APPLICATION GUIDE
Thermostat
Thermostat
Confi guration
Applications
Options
Gas, Oil, Electric, Heat Only,
Single Stage 1
Cool Only or Heat/Cool
No Heat Pump (SS1)
Systems, 2 or 3 wire Hydronic
Multi Stage 2
Zone (Hot Water or Steam)
No Heat Pump (MS2)
Systems, 24 Volt or Millivolt
Heat Pump 1
Single Stage Compressor Heat
Single Stage
Pump Systems - up to 2 Stages
Compressor Heat
Aux./Emergency Heat
Pump (HP1)
Heat Pump 2
Two Stage or Two Compressor
Two Stage or Two
Heat Pump systems - up to 2
Compressor Heat
Stages Aux./Emergency Heat
Pump (HP2)

SPECIFICATIONS

Electrical Rating:
Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Input-Hardwire . . . . . . . . . . . . . . . . . . . . . . . . . 20 to 30 VAC
Terminal Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A per terminal, 2.5A maximum all terminals combined
Setpoint Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 to 99°F (7 to 32°C)
Differential (Single Stage) . . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F
Differential (Multi-Stage) . . . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F
Differential (Heat Pump) . . . . . . . . . . . . . . . . . . . . . Heat 1.2°F; Cool 1.5°F
Operating Ambient. . . . . . . . . . . . . . . . . . . . . . . . . . 32°F to +105°F (0 to +41°C)
Operating Humidity . . . . . . . . . . . . . . . . . . . . . . . . . 90% non-condensing max.
Shipping Temperature Range . . . . . . . . . . . . . . . . . -40 to +150°F (-40 to +65°C)
Dimensions Thermostat. . . . . . . . . . . . . . . . . . . . . . 4.6"H x 5.9"W x 1.2"D
CAUTION
!
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Index
Installation
Wiring Diagrams
Thermostat Quick Reference
Installer Confi guration Menu
Operating Your Thermostat
Programming
Troubleshooting
Big Blue Commercial Universal Thermostat
with Damper or Economizer Control and
Automatic Heat/Cool Changeover Option
Installation and Operating Instructions
Model
1F95-1280
Maximum
W/ Economizer
Stages
Max. Stage
Heat/Cool
Heat/Cool
1/1
1/2
2/2
2/3
3/1
3/2
4/2
4/3
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this prod-
uct may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
mercury. Wearing non-absorbent gloves, clean up any
Page
spilled mercury and place in a sealed container. For proper
2
disposal of a product containing mercury or a sealed
3
container of spilled mercury, place it in a suitable shipping
4
container. Refer to www.white-rodgers.com for location to
5
send the product containing mercury.
9
10
14
www.white-rodgers.com
Single Stage, Multi-Stage, Heat Pump
Programming Choices
7 Day
5/1/1 Day
1F95-1280 Commercial Touchscreen Thermostat
Non-Programmable
PART NO. 37-6978A
0832

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1F95-1280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for White Rodgers 1F95-1280

  • Page 1: Specifications

    Big Blue Commercial Universal Thermostat with Damper or Economizer Control and Automatic Heat/Cool Changeover Option Single Stage, Multi-Stage, Heat Pump Installation and Operating Instructions Model 1F95-1280 1F95-1280 Commercial Touchscreen Thermostat Maximum W/ Economizer Stages Max. Stage Heat/Cool Heat/Cool ATTENTION: MERCURY NOTICE This product does not contain mercury.
  • Page 2: Installation

    If the Power Stealing Assist method is not compatible with your system, place the Power Stealing Switches to "Off". This cancels Power Stealing Assist, operates the thermostat on batteries and corrects the condition. Figure 1 – Thermostat Base Multi-Stage 1F95-1280 Mounting Hole ®...
  • Page 3: Wiring Diagrams

    WIRING DIAGRAMS System Single Stage 1 Call for cool (SS1) 24 volt common (optional 24 volt 24 volt for system power for power for operation, cooling heating required Cool mode-1st Multi Stage 2 for remote (MS2) stage sensor) Single Stage and Multi-Stage Connections Refer to equipment manufacturers’...
  • Page 4: Thermostat Quick Reference

    THERMOSTAT QUICK REFERENCE Home Screen Description Time of Day Note: If is displayed, the thermostat is battery powered. When battery power remaining is approximately half, will be displayed. If the home is going to be unoccupied for an extended period (over 3 months) is displayed, the batteries should be replaced before leaving.
  • Page 5: Installer/Configuration Menu

    INSTALLER/CONFIGURATION MENU To enter the menu: Press the Menu touch key. Press and hold for 5 seconds the Installer Confi g touch key. This displays menu item #1 in the table below. Press to change a menu item option. Menu Program- Non- Press...
  • Page 6 INSTALLER/CONFIGURATION MENU Menu Program- Non-Pro- Press Displayed Reference mable gram- Number mable (cont.) (cont.) (cont.) Change UV Lamp (OFF) Change Filter 1. This control can be confi gured for: MS2 – Multi-Stage System - No Heat Pump (2 heat/2 cool) HP1 –...
  • Page 7 INSTALLER/CONFIGURATION MENU 14. Select °F or °C Readout – Changes the display readout to Celsius or Fahrenheit as required. 15. Select Audio Prompting (Beeper) On or Off – Factory default setting is b, On. If you wish to turn off the beeper select OFF.
  • Page 8 INSTALLER/CONFIGURATION MENU Select DF setting (dF) – With DF selected On and no outdoor sensor, select the DF setting from 01-09. Factory default is 05. The thermostat computes the optimal time to bring on additional stages of back-up heat. This setting allows you to make slight adjustments on how quickly the thermostat switches from heat pump to fossil fuel back- up.
  • Page 9: Operating Your Thermostat

    The cooling system should stop operating. Choose the Fan Setting (Auto or On or Prog) There are three fan features on the 1F95-1280: 1. Fan Auto/On – Traditional Fan Settings Press Fan to select Auto or On. The most commonly used setting is Auto.
  • Page 10 OPERATING YOUR THERMOSTAT Auto: Auto Changeover is used in areas where both heating and cooling may be required on the same day. AUTO allows the thermostat to automatically select heating or cooling depending on the indoor temperature and the selected heat and cool temperatures.
  • Page 11: Enter The Cooling Program

    Energy Saving Factory Pre-Program The 1F95-1280 thermostats are programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the RUN key.
  • Page 12 The Heating and Cooling Program schedules below allow you to pencil in your own program times and temperatures. The 1F95-1280 comes confi gured for 7 day programming and can also be confi gured for 5+1+1 programming (see confi gura- tion section).
  • Page 13 PROGRAMMING Wired Remote Temperature Sensing One remote temperature sensor can be installed indoor or outdoor and connected to the thermostat by a maximum cable length of 100 meters (300 feet). Terminals +, S and - on the terminal block allow connection of the remote sensor. The thermostat must have 24 VAC Common connection to terminal C for the remote sensor to operate.
  • Page 14: Troubleshooting

    TROUBLESHOOTING Reset Operation Note: When thermostat is reset, installer confi guration menu settings and programming will reset to factory settings. If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation, you can reset the thermo- stat by removing the wires from terminals R and C (do not short them together) and removing batteries for 2 minutes.
  • Page 15 NOTES...
  • Page 16 HOMEOWNER HELP LINE: 1-800-284-2925 White-Rodgers is a division of Emerson Electric Co. The Emerson logo is a trademark and service mark www.white-rodgers.com of Emerson Electric Co.
