White Rodgers 1F95-0680 Installation And Operating Instructions Manual

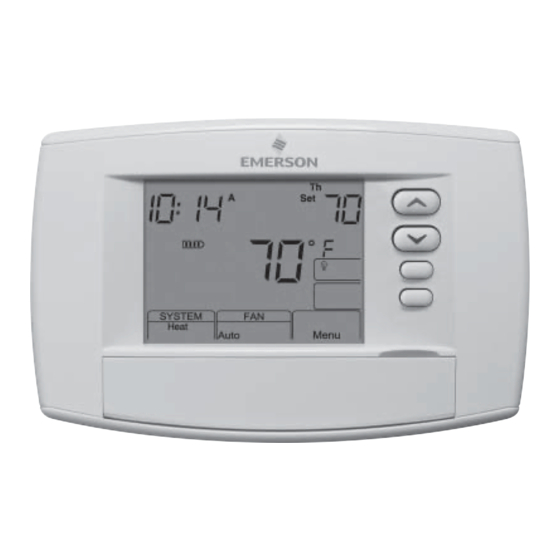

Blue commercial non-programmable thermostat with automatic heat/cool changeover option and damper control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING THIS
CONTROL COULD CAUSE PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
APPLICATIONS
THERMOSTAT APPLICATION GUIDE
Description
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (with Aux. or Emergency Heat)
Systems with up to 4 Stages Heat, 2 Stages Cool
Heat Only Systems
Millivolt Heat Only Systems - Floor or Wall Furnaces
Cool Only Systems
Gas or Oil Heat
Electric Furnace
Hydronic (Hot Water) Zone Heat - 2 Wires
Hydronic (Hot Water) Zone Heat - 3 Wires
Wired Remote Temperature Sensor (Indoor or Outdoor)
Dual Fuel Damper Control Feature (Heat Pump Mode
Outdoor Remote Required)

SPECIFICATIONS

Electrical Rating:
Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Input-Hardwire . . . . . . . . . . . . . . . . . . . . . . . . . 20 to 30 VAC
Terminal Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A per terminal, 2.5A maximum all terminals combined
Setpoint Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 to 99°F (7 to 32°C)
Differential (Single Stage) . . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F
Differential (Multi-Stage) . . . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F
Differential (Heat Pump) . . . . . . . . . . . . . . . . . . . . . Heat 1.2°F; Cool 1.5°F
Operating Ambient. . . . . . . . . . . . . . . . . . . . . . . . . . 32°F to +105°F (0 to +41°C)
Operating Humidity . . . . . . . . . . . . . . . . . . . . . . . . . 90% non-condensing max.
Shipping Temperature Range . . . . . . . . . . . . . . . . . -40 to +150°F (-40 to +65°C)
Dimensions Thermostat. . . . . . . . . . . . . . . . . . . . . . 4.2"H x 6.4"W x 1.7"D
CAUTION
!
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Index
Blue Commercial Thermostat with
Automatic Heat/Cool Changeover
Option and Damper Control
Single Stage, Multi-Stage, Heat Pump
Installation and Operating Instructions for Model:
Model
1F95-0680
1F95-0680 Commercial Thermostat
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this prod-
uct may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
Page
mercury. Wearing non-absorbent gloves, clean up any
2
spilled mercury and place in a sealed container. For proper
2
3
disposal of a product containing mercury or a sealed
container of spilled mercury, place it in a suitable shipping
4
5
container. Refer to www.white-rodgers.com for location to
8
send product containing mercury.
9
13
www.white-rodgers.com
Programming Choices
7 Day
5/1/1 Day
Non-Programmable
PART NO. 37-6819A
0811

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1F95-0680 and is the answer not in the manual?

Questions and answers

Related Manuals for White Rodgers 1F95-0680

Summary of Contents for White Rodgers 1F95-0680

  • Page 1: Table Of Contents

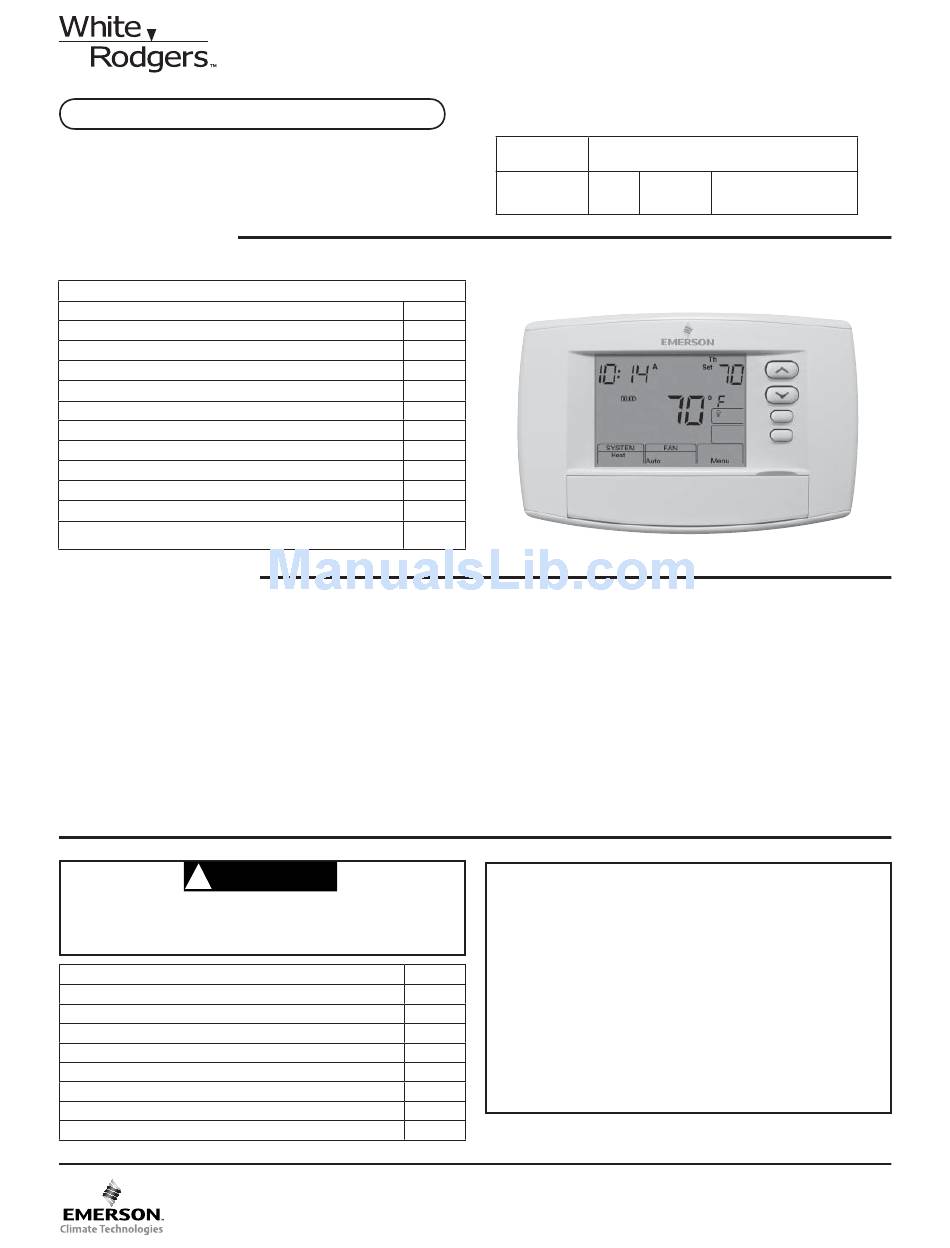

    Installation and Operating Instructions for Model: Model Programming Choices 1F95-0680 7 Day 1F95-0680 Commercial Thermostat ATTENTION: MERCURY NOTICE This product does not contain mercury. However, this prod- uct may replace a product that contains mercury. Mercury and products containing mercury must not be discarded in household trash.

  • Page 2: Remove Old Thermostat

    OFF position. Figure 1 – Thermostat Base Multi-Stage 1F95-0680 Mounting Hole Place Level...

  • Page 3: Wiring Diagrams

    WIRING DIAGRAMS Figure 1 – Heat Pump Systems System Heat Pump 1 Energized in (HP1) Diagnostic Cool Mode Heat and Indicator Output Cool Mode or System 1st Stage Malfunction Heat Pump 2 Energized in (Compressor) Switch (HP2) Heat, Off, Stage Emergency (Com- Mode...

  • Page 4: Thermostat Quick Reference

    THERMOSTAT QUICK REFERENCE Home Screen Description Displays the power level of the 2 “AA” batteries: indicates good power level indicates batteries at about half power. “Change batteries are low and should be replaced with 2 new premium brand “AA” Alkaline batteries. (See page 2 for more details) Programming and Confi...

  • Page 5: Installer Confi Guration Menu

    INSTALLER/CONFIGURATION MENU Press and hold the Menu button for at least 5 seconds. The display will show item #1 in the table below. Press Menu to ad- vance to the next menu item. Press MENU HP SS PRESS DISPLAYED REF. BUTTON (FACTORY DE- FAULT)
  • Page 6 INSTALLER/CONFIGURATION MENU 20 18 MENU dS (On) 21 19 MENU (OFF) Keypad Lockout MENU (000) Keypad Lockout 22 20 MENU L Heat (99) 23 21 MENU L Cool (45) – MENU (05) MENU (dF) MENU (60) – MENU (80) 26 22 MENU (OFF) EC 27 23...
  • Page 7 INSTALLER/CONFIGURATION MENU specify. Heating will start 5 minutes early for every 1° of temperature required to reach setpoint. Example: E On is selected and your heating is pro- grammed to 65° at night and 70° at 7 AM. If the building temperature is 65°, the difference between 65°...

  • Page 8: Operating Your Thermostat

    INSTALLER/CONFIGURATION MENU Record the number you select for future use. Press MENU or RunSched to exit the menu. The security feature you select will start. The system button will remain active for 10 seconds to allow setting Heat, Off, Cool or Auto.

  • Page 9: Programming

    OPERATING YOUR THERMOSTAT Emergency System EMER bypasses the Heat Pump to use the heat source wired to terminal W/E on the thermostat. EMER is typically used when compressor operation is not desired, or you prefer back-up heat only. 1. Press SYSTEM button to select EMER. “EMER” will fl ash on the display.

  • Page 10: Energy Saving Factory Pre-Program

    Energy Saving Factory Pre-Program The 1F95-0680 thermostats are programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the RunSched button.

  • Page 11: Enter The Cooling Program

    PROGRAMMING Automatic Daylight Saving Calculation The Real Time Clock will adjust automatically for daylight sav- ings time, in the following manner: Increment one hour at 2 AM on the second Sunday of March and decrement one hour at 2 AM on the fi rst Sunday of No- vember.

  • Page 12: Wired Remote Temperature Sensing

    PROGRAMMING Wired Remote Temperature Sensing One remote temperature sensor can be installed indoor or outdoor and connected to the thermostat by a maximum cable length of 100 meters (300 feet). Terminals +, S and - on the terminal block allow connection of the remote sensor. The thermostat must have 24 VAC Common connection to terminal C for the remote sensor to operate.

  • Page 13: Troubleshooting

    TROUBLESHOOTING Reset Operation Note: When thermostat is reset, installer confi guration menu settings and programming will reset to factory settings. If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation, you can reset the thermo- stat by removing the wires from terminals R and C (do not short them together) and removing batteries for 2 minutes.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 HOMEOWNER HELP LINE: 1-800-284-2925 White-Rodgers is a division of Emerson Electric Co. The Emerson logo is a trademark and service mark St. Louis, Missouri Markham, Ontario of Emerson Electric Co. www.white-rodgers.com...
