Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING THIS
CONTROL COULD CAUSE PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
APPLICATIONS
THERMOSTAT APPLICATION GUIDE
Description
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (with Aux. or Emergency Heat)
Systems with up to 3 Stages Heat, 2 Stages Cool
Heat Only Systems
Millivolt Heat Only Systems - Floor or Wall Furnaces
Cool Only Systems
Gas or Oil Heat
Electric Furnace
Hydronic (Hot Water) Zone Heat - 2 Wires
Hydronic (Hot Water) Zone Heat - 3 Wires
SPECIFICATIONS
Electrical Rating:
Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Input-Hardwire . . . . . . . . . . . . . . . . . . . . . . . . 20 to 30 VAC
Terminal Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 A per terminal, 2.5A maximum all terminals combined
Setpoint Range . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 to 99°F (7 to 32°C)
Differential (Single Stage) . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F
Differential (Multi-Stage) . . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F
Differential (Heat Pump) . . . . . . . . . . . . . . . . . . . . Heat 1.2°F; Cool 1.5°F
Operating Ambient . . . . . . . . . . . . . . . . . . . . . . . . . 32° to +105°F (0 to +41°C)
Operating Humidity . . . . . . . . . . . . . . . . . . . . . . . . 90% non-condensing max.
Shipping Temperature Range . . . . . . . . . . . . . . . . -4 to +150°F (-20 to +65°C)
Dimensions Thermostat . . . . . . . . . . . . . . . . . . . . . 4.6"H x 5.9"W x 1.2"D
CAUTION
!
To prevent electrical shock and/or equipment dam-
age, disconnect electric power to system at main fuse
or circuit breaker box until installation is complete.
Index
90 Series Blue Universal Thermostat with
90 Series Blue Universal Thermostat with
90 Series Blue Universal Thermostat with
90 Series Blue Universal Thermostat with
90 Series Blue Universal Thermostat with
Automatic Heat/Cool Changeover Option
Automatic Heat/Cool Changeover Option
Automatic Heat/Cool Changeover Option
Automatic Heat/Cool Changeover Option
Automatic Heat/Cool Changeover Option
Single Stage, Multi-Stage, Heat Pump

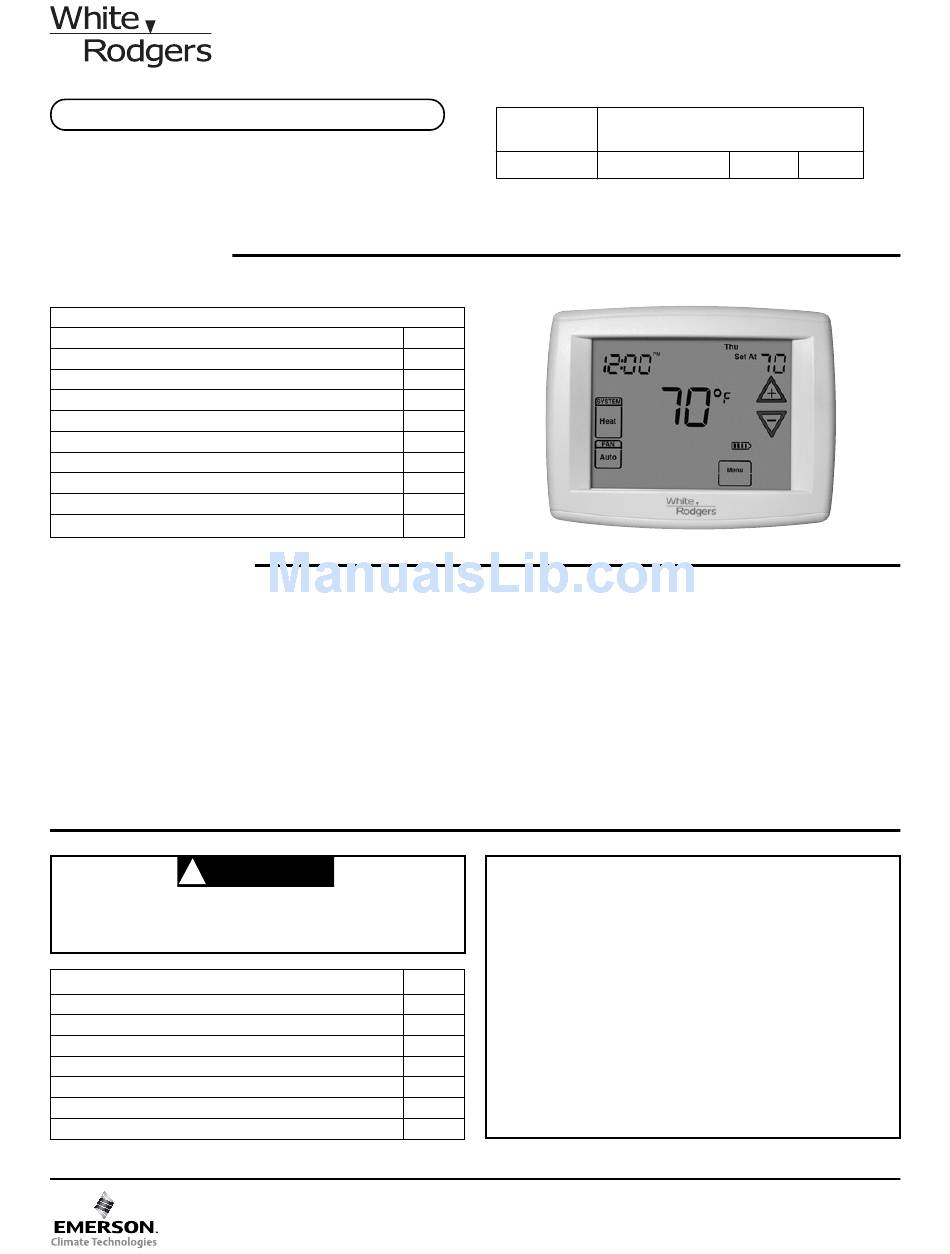

Installation and Operating Instructions for Model:
Model
1F95-1271
1F95-1271 Touchscreen Thermostat
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this
product may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
mercury. Wearing non-absorbent gloves, clean up any
Page
spilled mercury and place in a sealed container. For proper
2
disposal of a product containing mercury or a sealed
2
container of spilled mercury, place it in a suitable shipping
3
container and send it to:
4
6
6
8
www.white-rodgers.com
Programming Choices
Non-Programmable 5/1/1 Day
White-Rodgers
2895 Harrison Street
Batesville, AR 72501
PART NO. 37-6735A
7 Day
0544
Advertisement
Table of Contents
Related Manuals for White Rodgers 1F95-1271
Summary of Contents for White Rodgers 1F95-1271
-
Page 1: Table Of Contents
Installation and Operating Instructions for Model: Model 1F95-1271 Non-Programmable 5/1/1 Day 1F95-1271 Touchscreen Thermostat ATTENTION: MERCURY NOTICE This product does not contain mercury. However, this product may replace a product that contains mercury. Mercury and products containing mercury must not be discarded in household trash. -
Page 2: Installation
INSTALLATION WARNING Thermostat installation and all components of the control system shall conform to Class II circuits per the NEC code. Remove Old Thermostat A standard heat/cool thermostat consists of three basic parts: 1. The cover, which may be either a snap-on or hinge type. 2. -
Page 3: Thermostat Quick Reference
THERMOSTAT QUICK REFERENCE Home Screen Description System button for selecting Heat/Off/Cool or Auto (Heat/Cool) Fan (Auto/On) Indicates when thermostat is calling for Heat or Cool Programming and Configuration Items Displays and "Keypad Lockout" when in keypad lockout mode. Displays and "Temperature Limit" and "Keypad Lockout"... -
Page 4: Installer Configuration Menu
INSTALLER/CONFIGURATION MENU To enter the menu: Press the Menu button. Press and hold for 5 seconds the Installer Config button. This displays menu item #1 in the table below. Press to advance to the next menu item or to change a menu item. Non- Menu Reference... - Page 5 INSTALLER/CONFIGURATION MENU 5) System Switch Configuration – This thermostat is configured for Heat and Cool with Auto changeover (SYSTEM switch with Cool Off Heat Auto) default. It can also be configured for Heat and Cool (Cool Off Heat), Heat only (Off Heat), and Cool only (Cool Off). 6) Energy Management Recovery –...
-
Page 6: Operating Your Thermostat
OPERATING YOUR THERMOSTAT Choose the Fan Setting (Auto or On) Set the FAN Switch to Auto or On. Fan Auto is the most commonly selected setting and runs the fan only when the heating or cooling system is on. Fan On runs the fan continuously for increased air circulation or to allow additional air cleaning. - Page 7 Energy Saving Factory Pre-Program The 1F95-1271 thermostats are programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the RUN button.
-
Page 8: Troubleshooting
TROUBLESHOOTING Reset Operation Note: When thermostat is reset, installer configuration menu settings and programming will reset to factory settings. If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation, you can reset the thermostat by removing the wires from terminals R and C (do not short them together) and removing batteries for 2 minutes.
