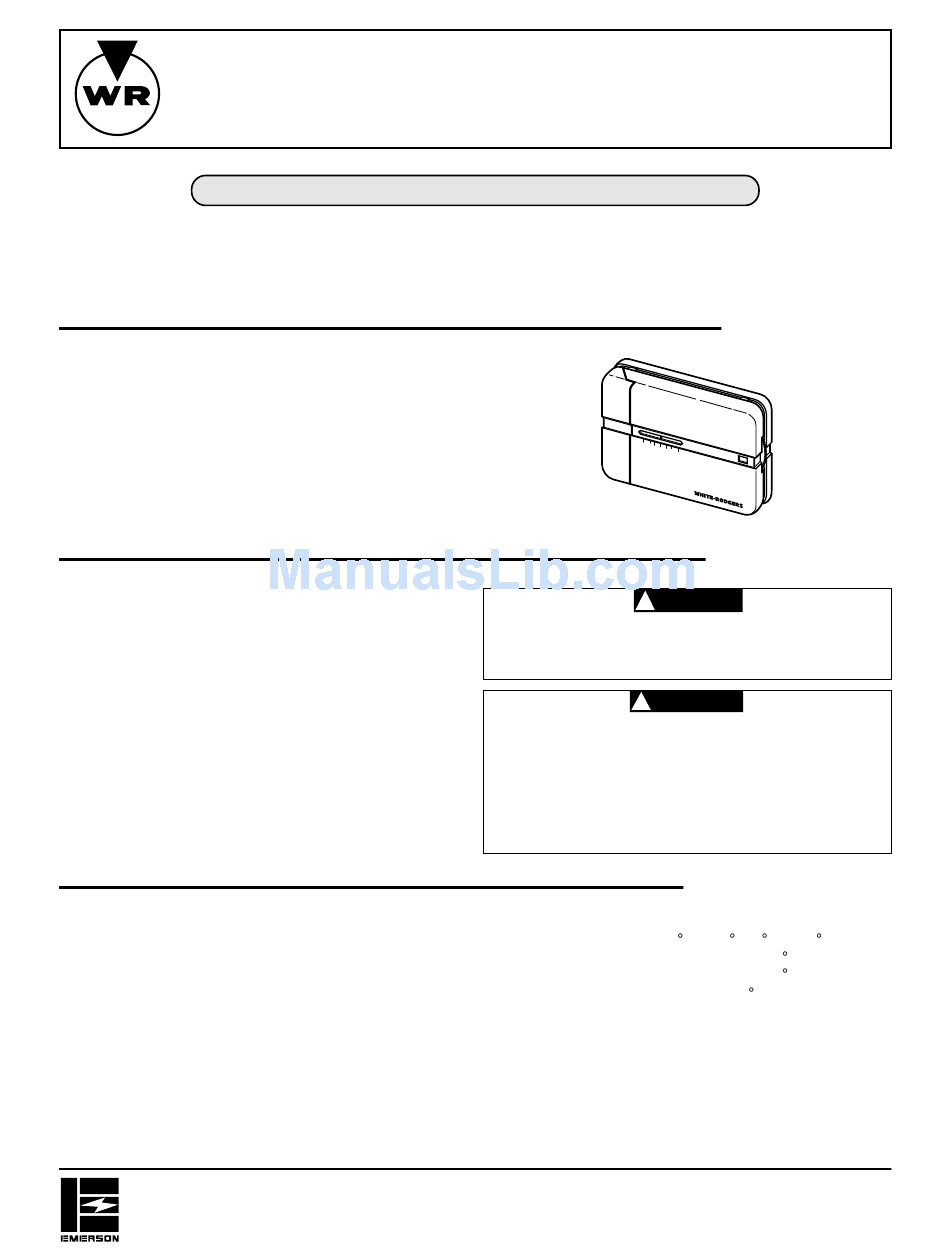

Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
These thermostats are designed to control a heat pump system
where automatic changeover is not required.
The 1F59-13 thermostat has no indicator lights.
If in doubt about whether your wiring is millivolt, line, or low
voltage, have it inspected by a qualified heating and air condi-
tioning contractor or a licensed electrician.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical codes
and ordinances.
This control is a precision instrument, and should be handled
carefully. Rough handling or distorting components could cause
the control to malfunction.
ELECTRICAL DATA
Electrical Rating:
18 to 30 VAC, 50/60 Hz
0.01 to 1.5 amps (load per terminal)
2.5 amps max. total load (all terminals combined)
STAGING DATA
Up to two heating stages
One cooling stage
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398
Low Voltage Heat Pump Thermostat
INSTALLATION & OPERATION
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Do not use on circuits exceeding 30 volts. Higher
voltage will damage control and could cause shock or
fire hazard.
DO NOT USE this thermostat on heat pump systems
that have a spark ignition gas or fossil fuel second
stage heat source.
THERMAL DATA
Temperature Range: 40 F to 90 F (4 C to 32 C)
Rated Differential:
DIMENSIONS
3.5" H x 5.5" w x 1.25" D
Printed in U.S.A.
1F59-13
INSTRUCTIONS
DESCRIPTION
5 0
6 0 7
0 8 0
9 0
7 0
1F59-13
PRECAUTIONS
CAUTION
!
WARNING
!
SPECIFICATIONS
Stage 1 heat – 1.3 F (max.)
Stage 2 heat – 0.9 F (max.)
Cooling – 1.3 F (max.)
PART NO. 37-5780A
9713
