- Page 1 DS-X01 Media Station User Manual English AREC Inc.© All Rights Reserved 2019. l www.arec.com All information contained in this document is Proprietary...
-
Page 2: Table Of Contents
DS-X01 User Manual Table of Contents Introduction Specifications Package Contents Product Appearance Connection Front Panel Buttons and Indicators Getting start Chapter 1 Administrator 1.1 Media I/O 1.1.1 Video inputs 1.1.1.1 HDMI / VGA 1.1.1.2 Sources List 1.1.2 Audio 1.1.3 Display 1.2 System 1.2.1 System settings 1.2.2 Network... -
Page 3: Introduction
Introduction AREC DS-X01 Playout Station can decode IP Streaming directly, making it easy to be viewed on the local display. The IP streaming video sources can be from anywhere via an IP LAN Ethernet connection, including campus studio, real-time lecture seminar at school, live events, streaming from CDNs, video-on-demand content, IP camera viewing for insect observation or environment monitoring, and campus security…... -

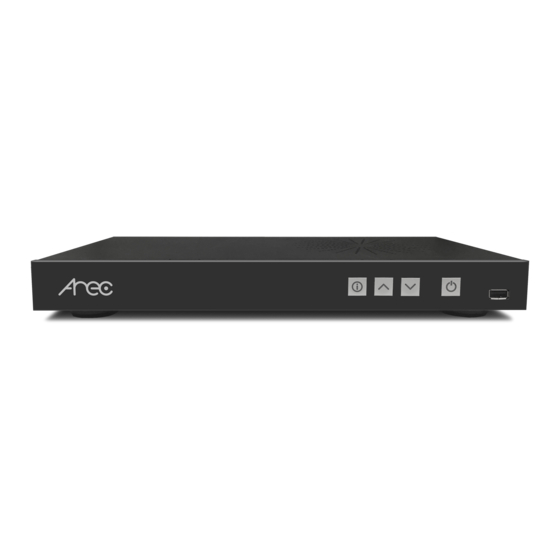

Page 4: Product Appearance
For mouse control DS-X01 menu Network port RJ-45 Ethernet connector for network connection Setting port RJ-45 Ethernet connector for device configuration and control RS-232 Captive screw connector for control over RS-232 Reset button Restoring devices to its factory default state www.arec.com... -
Page 5: Connection
DS-X01 User Manual Connection Setting PC projector Speaker Power Video output VGA / HDMI Audio output RS-232 Audio input Ethernet Video input VGA / HDMI network notebook amplifier mouse document cam mouse www.arec.com... -
Page 6: Front Panel Buttons And Indicators
Device is powered, yet not booted up. Green and red light flash alternately. Device is booting up. Solid green. Boot up completed. Fast flashing red. Device is shutting down. Power Fast flashing green. Firmware updating Slow flashing red. Fan is abnormal www.arec.com... -
Page 7: Getting Start
DS-X01 User Manual Getting start Connect PC to the setting port of Media Station with standard network cable. Open up the browser, and input 192.168.11.254 in the browser page. Log in Administrator with default username admin and password admin, then entering the DS-X01system Administrator webpages. -
Page 8: Chapter 1 Administrator
Video inputs Set the name of the HDMI / VGA inputs. Add, delete and edit the sources list. Audio Adjust the volume of input and output. Display Set the DS-X01 on screen display language, video output settings and color adjustment. www.arec.com... -
Page 9: Video Inputs
The name of these inputs are user configurable; by default are HDMI 1, VGA 1, HDMI 2 and VGA 2. 1.1.1.2 Sources List Video Sources from Up to 99 1080p IP streams. Click ‘‘Add’’ button to add a streaming source. Click to delete the streaming channel. Enter the channel name and URL, Apply to add. www.arec.com... -
Page 10: Audio
Input volume control - Users can adjust the volume of HDMI1/Line-in 1, HDMI2/Line-in 2 and stream. Configurable range of sound input is 0-125. The nearby volume meter indicates the encoded audio current volume. Output volume control - Adjust the Line output or HDMI output volume. www.arec.com... -
Page 11: Display
Set the DS-X01 on screen display language, video output settings and color adjustment. On-screen language: Change the GUI language. Video output settings: Setting the HDMI display Monitor input sources or Preview with On-screen menu. Screen color adjustment(HDMI and VGA): Change the Brightness, Contrast, Saturation and Hue www.arec.com... -
Page 12: System
Contains device identification, date and time configuration, and booting settings. Network The device IP assignment in the networking. Displays the current firmware version, and provides web-based user a way to update Firmware firmware for the device. Configuration Export / Import the configuration. www.arec.com... -
Page 13: System Settings
DS-X01 User Manual 1.2.1 System settings The basic information and initial date/time of this device are configured here. www.arec.com... -
Page 14: Network
Static IP and enter the required network settings including IP address / subnet mask / default gateway/ DNS server. Click Apply at lower right corner, click Confirm in popup dialog box. NOTE: The system will automatically reboot to complete the network settings. Login the updated IP address after the system restarts. www.arec.com... -
Page 15: Firmware
NOTE : The length of the string is 0~16 characters, allowing letters, numbers, symbols 11(~!@$%^&*-+_). Reset : Reset to factory default. Check if you want to keep your network settings, and click “Reset”.The dialog pop out and ask you “System will reboot after updating, continue? ” Click “Confirm” to start reset. www.arec.com... -
Page 16: Configuration
DS-X01 User Manual 1.2.4 Configuration You can export or import the configuration in this page : Export : Select the configuration to export and click “Export”. Import : Click “Import”to load a configuration. www.arec.com... -
Page 17: Account
Changing username and password with Administration : (1) New User: Enter a user login name that you want. (2) New Password: Enter the user login password that you want. (3) Confirm Password: Requires you to enter your password again for confirmation. (4) Click Apply. www.arec.com... -
Page 18: Chapter 2 The Local Display
After the USB port is connected to the mouse, user can click the menu on the screen. GUI allow user to switch the video source view on the display. Note: on-screen GUI is selectable between HDMI and VGA display port, please refer to 1.1.3 Display www.arec.com... -
Page 19: Functions
DS-X01 User Manual 2.1.1 Functions This section introduces the names and the functions of these buttons. LS-300 media station a. Pause button Click button the DS-X01 will stop preview the video channel. The screen will show as below. Click the button again resume the HDMI / VGA or stream. -
Page 20: Others
Click ‘‘Info’’ button on the front panel, the dialog as below. 1. Information Show device information: Hostname/ Device description/ IP address/ Model/ Version/ Brand 2. Audio out Audio Output Volume Control a. Line : Mute/ Down/ Up b. HDMI : Mute/ Down/ Up c. Default www.arec.com... -
Page 21: Monitor
DS-X01 User Manual 2.2 Monitor The DS-X01 HDMI output defaults to the monitor input source, which switches the video through the On-screen menu or the up/down buttons. Preview w/o GUI Pause www.arec.com... -
Page 22: Table Of On Screen Disaplay Icons
Table of On Screen Display Icons The DS-X01 provides HDMI or VGA output. On screen display there are event icons and sometimes the error operation warnings. Wrong Operation HDMI / VGA Inputs Error Streaming Inputs Error (2 seconds) Network Error www.arec.com... - Page 23 DS-X01 User Manual paused Firmware updating Firmware update failure Fan failure Shutdown confirmation www.arec.com...
- Page 24 All information contained in this document is Proprietary Made in Taiwan Date : 2019.7.1 Version : 9.0 AREC have the right to change or improve product specifications, without obligation to notify any user. Go to www.arec.com get the latest information related to the product or additional information.
