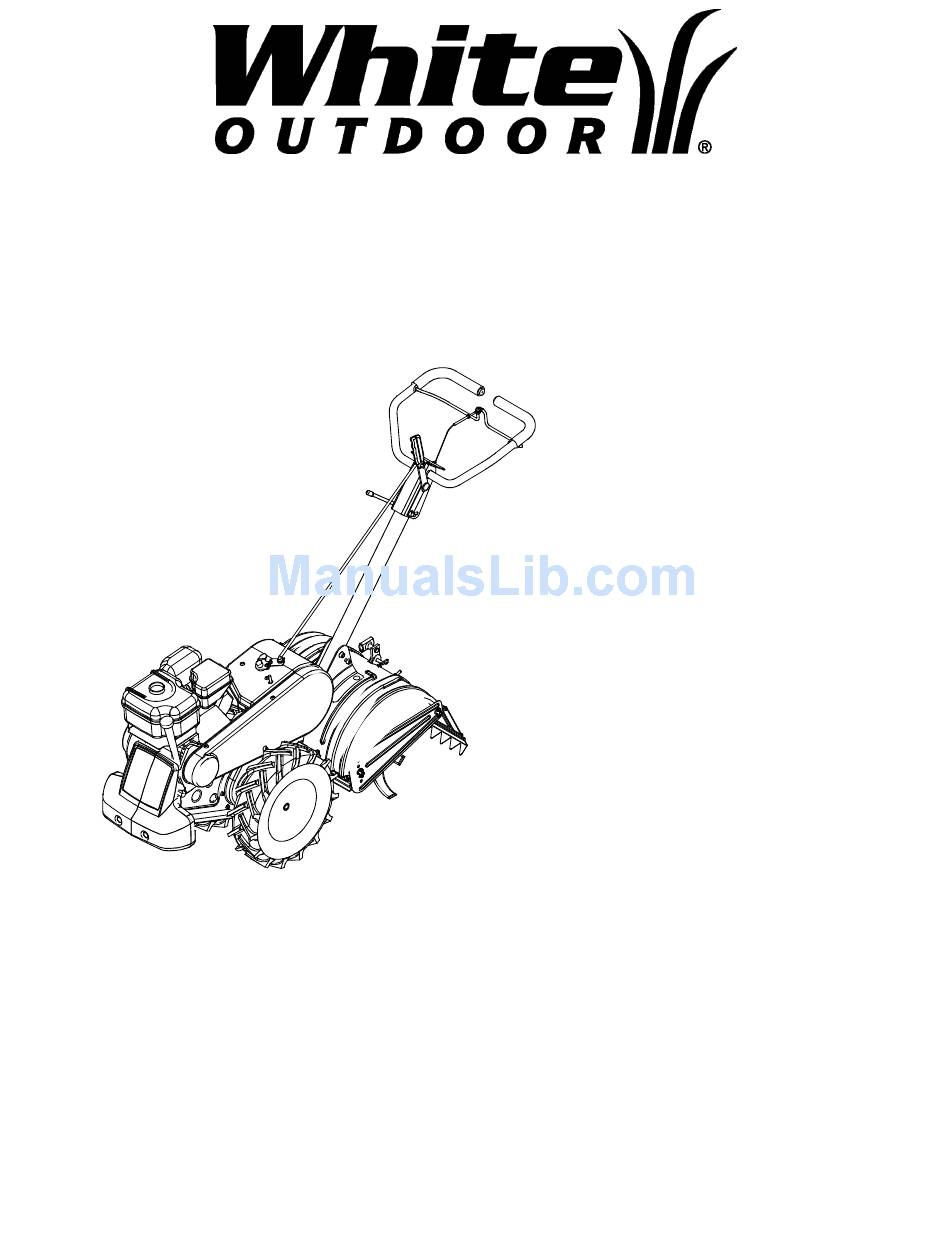

Rear tine tiller

Advertisement

Operator's Manual
Rear Tine
Tiller
RB650
21A-458B190
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
FORM NO. 770-10193C.fm
PRINTED IN U.S.A.
(12/99)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for White Outdoor RB650

  • Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722. WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722 FORM NO. 770-10193C.fm PRINTED IN U.S.A.
  • Page 2: Table Of Contents

    A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below. (Model Number) (Serial Number) WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136...
  • Page 3: Section 1: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE YOUR TILLER. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
  • Page 4 • If situations occur which are not covered by this manual, use care and good judgment. Contact your dealer for assistance. CHILDREN • Tragic accidents can occur if the operator is not alert to the presence of small children. Children are often attracted to the tilling activity.
  • Page 5: Section 2: Loose Parts

    SECTION 2: LOOSE PARTS Handle Assembly Depth Stake Control Assembly NOTE: Cable tie not shown.
  • Page 6: Section 3: Assembling Your Tiller

    SECTION 3: ASSEMBLING YOUR TILLER This unit is shipped WITHOUT GASOLINE IMPORTANT: or OIL. After assembly, see separate engine manual for proper fuel and engine oil recommendations. NOTE: Left and right is determined from the operator’s position, standing behind the tiller. TOOLS REQUIRED FOR ASSEMBLY Adjustable Wrenches Pair of Pliers...
  • Page 7 Slot Head Screw, Nut, Flat Washers Internally Threaded Tube Plastic Fitting Figure 4 ATTACHING THE CLUTCH CABLE Attach the clutch cable to the handle as follows (be careful not to kink the cable). • Remove threaded eyebolt and nut from the end of the cable.
  • Page 8: Section 4: Know Your Tiller

    Now move the shift lever to FORWARD (Wheels Forward) position. Carefully engage the clutch by lifting the clutch control bail against the handle. The wheels should spin. If the wheels do not spin with the unit in forward, adjust by unthreading the tube at the end of the cable a few turns counter-clockwise, (when standing in operator’s position), and then retighten the nut against the tube.
  • Page 9: Operating Your Tiller

    CLUTCH CONTROL BAIL The clutch control bail is located below the handle. See Figure 7. Lifting the clutch control bail against the handle engages the wheel and tine drive mechanisms. NOTE: Never engage clutch lever while shifting. SECTION 5: OPERATING YOUR TILLER NOTE: Engine is shipped without oil.
  • Page 10: Section 6: Making Adjustments

    Use This Position First Time Clevis Figure 8 • To transport tiller, lower the depth stake (use top adjustment hole). • To adjust the depth stake, remove the clevis pin and hairpin clip. See Figure 8. Move the depth stake to the desired setting. •...
  • Page 11: Section 7: Service

    • Remove the belt cover as described in the belt replacement section on page 12. • Remove the hairpin clip and spring washer from the idler pulley rod. See Figure 11. • Move the idler pulley rod to the lower hole in the idler bracket.
  • Page 12: Belt Replacement

    CLEANING THE TINE AREA Clean the underside of the tine shield after each use. The dirt washes off the tines easier if washed off immediately instead of after it dries. We do not recommend the use of pressure washers to clean your unit.
  • Page 13: Section 9: Off-Season Storage

    SECTION 9: OFF-SEASON STORAGE If the tiller will not be used for a period longer than 30 days, the following steps should be taken to prepare the tiller for storage. • Clean the exterior of engine and the entire tiller thoroughly.
  • Page 14: Section 11: Parts List For Model Rb650

    SECTION 11: PARTS LIST FOR MODEL RB650...
  • Page 15 MODEL RB650 REF. PART NO. DESCRIPTION 611-0020 Wheel Shaft Ass’y: 33T 611-0021 Tine Shaft Ass’y: 18T 611-0128 Jack Shaft Ass’y 611-0129 Input Shaft Ass’y 617-0058 Rev. Idler Gear Ass’y: 30T 617-0059 Ftine Idler Gear Ass’y: 30T 617-0060 Tine Input Sprocket Ass’y: 9T 617-0061 Wheel Input Sprocket Ass’y: 10T...
  • Page 16 MODEL RB650 12 15...
  • Page 17 MODEL RB650 REF. PART NO. 747-1152 Shift Rod 649-0041 Upper Handle Ass’y 649-0034 Lower Handle Ass’y 710-3005 Hex Screw 3/8-16 x 1.25 710-3056 Hex Screw 5/16-18 x 3.25 711-0415 Clevis Pin 3/8-1.62 712-0379 Flange Lock Nut 3/8-24 712-0429 Hex Lock Nut 5/16-18...
  • Page 18 MODEL RB650 3 40...
  • Page 19 MODEL RB650 REF. PART NO. DESCRIPTION 686-0111 Belt Cover Brkt. Ass’y 710-0237 Hex Bolt 5/16-24 x .62" Lg. 710-0412 Hex Bolt 1/4-28 x .75" Lg. 710-0502A Hex Wash.TT-Sems Screw 3/8-16 x 1.250" Lg. 710-0591 Hex Bolt 3/8-24 x 1.00 710-0599 Hex Wash.
  • Page 20: Cleveland, Ohio

    Log splitter pumps, valves and cylinders have a sepa- rate one year warranty. d. White Outdoor Co. does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through White Outdoor Co.
