OPERATOR'S MANUAL
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.

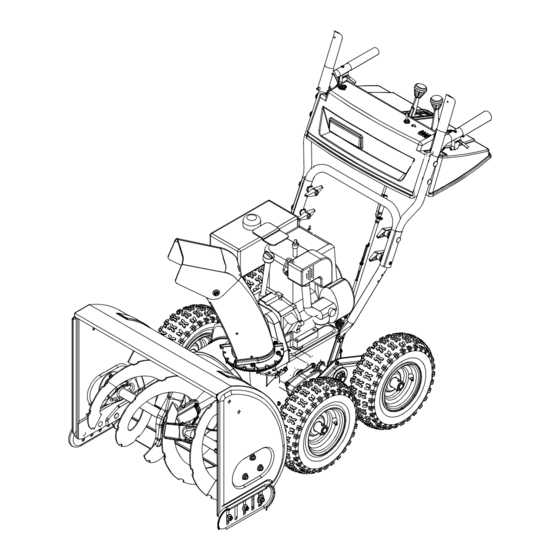

SNOW
THROWER
MODEL
855 4x4
4-Wheel Drive
770-10258A.fm
FORM NO.
(6/00)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for White Outdoor 855
Summary of Contents for White Outdoor 855
-
Page 1: Wheel Drive
Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722. WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722 PRINTED IN U.S.A. -
Page 2: Table Of Contents
A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below. (Model Number) (Serial Number) WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136 If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Dealer Referral Line. -
Page 3: Section 1: Important Safe Operation Practices
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 4: Maintenance And Storage
The clutch levers must operate easily in both directions and automatically return to the disengaged position when released. Never operate with a missing or damaged discharge chute. Keep all safety devices in place and working. Never run an engine indoors or in a poorly ventilated area. -
Page 5: Section 2: Assembling Your Snow Thrower
SECTION 2: ASSEMBLING YOUR SNOW THROWER NOTE: Any reference in this manual to the left or right side of the snow thrower is observed from the operator’s position. Unpacking • Remove staples from the top sides and ends of the shipping crate. -
Page 6: Final Adjustments
Figure 5 Final Adjustments Auger Control Adjustment Check the adjustment of the auger control as follows: • Push forward on the auger control until the small rubber bumper contacts the upper handle. There should be slack in the cable. See Figure 6. •... -
Page 7: Section 3: Know Your Snow Thrower
Skid Shoes Figure 7 SECTION 3: KNOW YOUR SNOW THROWER Traction Control / Auger Control Lock Headlight Discharge Chute Auger WARNING: Read, understand, and follow all instructions and warnings on the machine and in this manual before operating. Traction Control / Auger Control Lock The traction control is located on the right handle. -
Page 8: Section 4: Operating Your Snow Thrower
Auger Drive Control The auger drive control is located on the left handle. Squeeze the control grip to engage the augers. Release to stop the snow throwing action. (Traction control must also be released.) See Figure 8. Trigger Lever The left and right turn triggers are located on the underside of the handles and are used to assist in steering your snow thrower. -
Page 9: Electric Starter
To Start Engine NOTE: If unit shows any sign of motion (drive or augers) with the clutch grips disengaged, shut engine off immediately. Readjust as instructed in the Final Adjustments in the Assembly Section. • Attach spark plug wire to spark plug. Make certain the metal loop on end of the spark plug wire (inside the boot) is fastened securely over the metal tip on the spark plug. -
Page 10: Section 5: Making Adjustments
NOTE: Use slower speeds in higher snow and until you are familiar with the operation of the snow thrower. • Squeeze the traction control against the right handle and the snow thrower will move. Release it and the drive motion will stop. NEVER move the shift lever without first IMPORTANT: releasing the traction control. -
Page 11: Shift Rod Adjustment
Shift Rod Adjustment To adjust the shift rod, proceed as follows: • Remove the hairpin clip and slide the shift rod connector up, to separate the upper shift rod from the lower shift rod. See Figure 10. • Place the shift lever into the sixth (6) position. •... -
Page 12: Section 7: Servicing Your Snow Thrower
Lube Gear & Chute Base Figure 11 Auger Shaft At least once a season, remove the shear bolts on the auger shaft. Spray lubricant inside the shaft. Also lubricate the plastic auger bearings at least once a SECTION 7: SERVICING YOUR SNOW THROWER WARNING: Before servicing, repairing, or inspecting, disengage all clutch levers and stop engine. - Page 13 Belt Cover Figure 13 • Remove the three hex nuts and lock washers which attach the auger housing assembly to the frame assembly on each side. See Figure 14. Figure 14 • Standing in the operating position, lift up on the handles and pull the frame assembly rearward.
- Page 14 replace the belt. Reassemble following the instructions in reverse order. See Figure 17. Friction Wheel Friction Wheel Disc Figure 17 Servicing Friction Wheel Rubber The rubber on the friction wheel is subject to wear and should be checked after 25 hours of operation, and periodically thereafter.
-
Page 15: Off-Season Storage
NOTE: If the sprocket fell from the snow thrower while removing the hex shaft, place the sprocket on the hex shaft. Position the hex hub of the sprocket toward the friction wheel when sliding the sprocket on to the hex shaft. -
Page 16: Section 8: Trouble Shooting Guide
SECTION 8: TROUBLE SHOOTING GUIDE Trouble Possible Cause(s) Engine fails to start 1. Fuel tank empty, or stale fuel. Blocked fuel line. Choke not in the ON position Faulty spark plug. Safety key not in ignition switch on engine. Spark plug wire disconnected. Primer button not being used properly. -
Page 17: Parts List
Model 855 Ref. Part No. 710-0459A Special Hex Screw: 3/8-24 x 1.5” 710-0599 TT Screw: 1/4-20 x 0.5” 712-0116 Jam Nut 713-0491 Sprocket 713-0492 Chain 714-0161 736-0235 Flat Washer 736-0351 Flat Washer 737-0170 Lubricant: 6in 1 737-3000 Lube Fitting 738-1135A... - Page 18 Model 855 26 40...
- Page 19 Model 855 Ref. Part No. Description 05931A Bearing Housing 684-0065 Impeller Assy. 12” dia. 705-5226 Chute Reinforcement 710-0451 Carriage Bolt 5/16-18 x .75” Gr.2 710-0459A Hex Screw 3/8-24 x 1.5” Gr.5 710-0604 Hex Screw 5/16-18 710-0703 Carriage Screw 1/4-20 x .75”...
- Page 20 Model 855 17 29 33 39...
- Page 21 Retaining Shaft LH: Actuator Drive Oval C-Sunk Machine Screw Weld Nut Cable Tie (not shown) Turn Trigger Frame Label: Handle Panel Label: Housing 855 4x4 Label: Side Housing Label: Engine Label: H-Steer RH Label: H-Steer LH Label: Chute Danger Label: Housing Danger...
- Page 22 Model 855...
- Page 23 Model 855 Ref. Part No. Description 05896A Idler Bracket 710-0230 Hex Bolt 1/4-28 x 0.5” Gr.5 710-0627 Hex Scr w/ Patch: 5/16-24 x 0.75” 710-0654A Hex Washer Head Sems Screw 710-0696 Hex Bolt 3/8-24 x .875” Gr.8 710-1245 Hex Scr w/ Patch: 5/16-24 x .875”...
- Page 24 Model 855 For Reference Only For Reference Only...
- Page 25 Model 855 Ref. Part No. Part Description 684-0008A Shift Arm Assembly 710-0262 Carriage Bolt 5/16-18 x 1.5” 710-0449 Carriage Bolt 5/16-18 x 2.25” 710-0788 TT Screw 1/4-20 x 1” 684-0102 Handle Panel Ass’y w/Tilt 710-3008 Hex Screw 5/16-18 x .75”...
- Page 26 Notes...
-
Page 28: Cleveland, Ohio
Log splitter pumps, valves and cylinders have a sepa- rate one year warranty. d. White Outdoor Co. does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through White Outdoor Co.
Need help?
Do you have a question about the 855 and is the answer not in the manual?
Questions and answers
Hand warmers
The Heated Hand Grips Kit (2005 - 2011), Item: 753-05762B, is compatible with models equipped with a PowerMore, Craftsman, Troy-Bilt, or Cub Cadet engine with 3A/5A and 20W/20W alternator outputs. It is not compatible with models equipped with an Electric Chute Control. If the White Outdoor part number 855 meets these criteria, then the kit is compatible. Otherwise, it is not.
This answer is automatically generated
