White Outdoor LC-106 Operator's Manual

White Outdoor LC-106 Operator's Manual

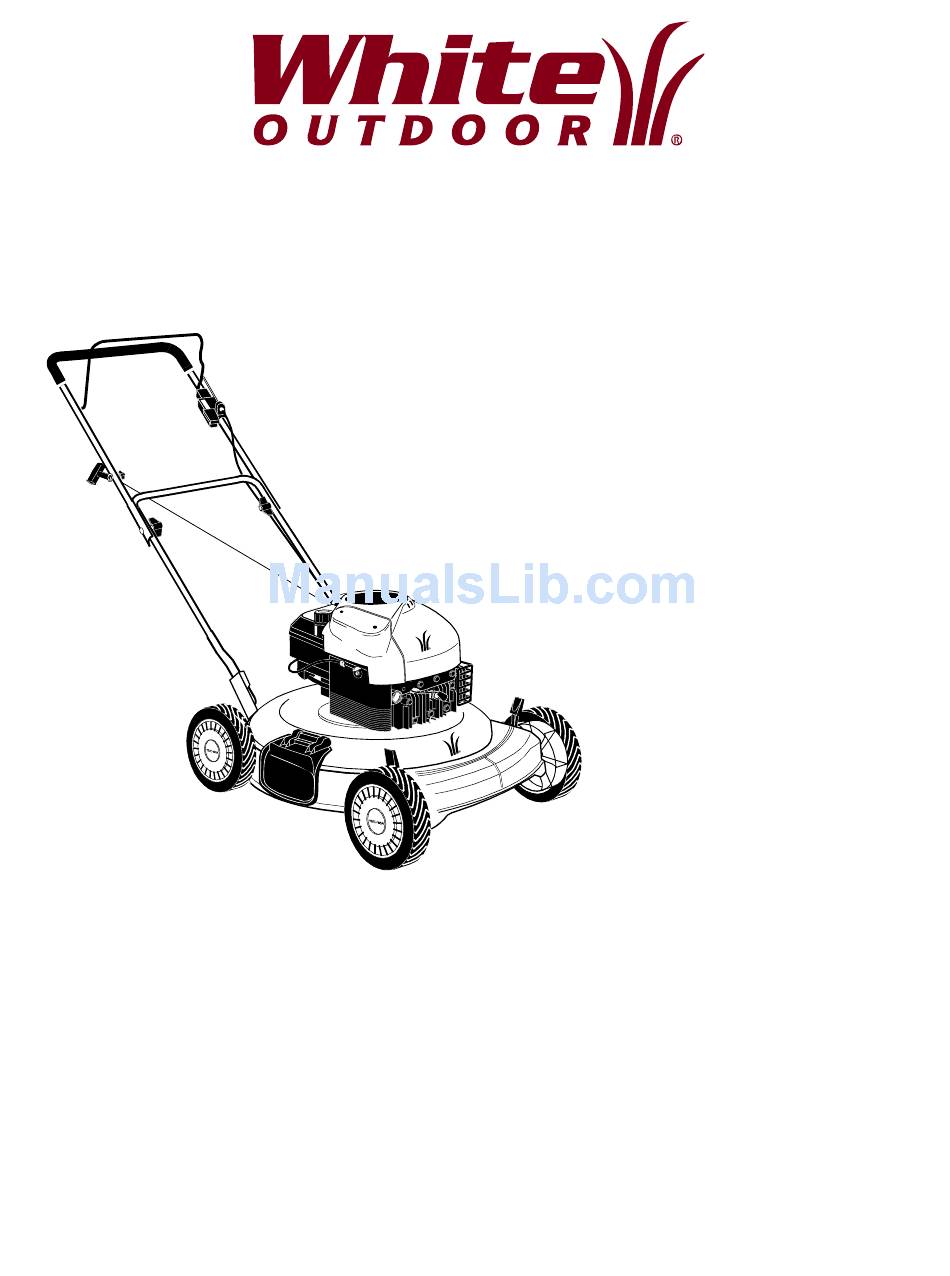

White 18" and 20" mulching push mower owner's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operator's Manual
18" and 20"
Mulching Push
Mowers
Models
LC-106 and LC-40
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
FORM NO. 770-10058A.fm
PRINTED IN U.S.A.
(12/99)
