INSTALLATION GUIDE
SINGLE-ROOM AIR HANDLING UNIT WITH HEAT RECOVERY
MICRA 60
INSTALLATION
Pencil
Drill Ø 8 (Ø 5/16''), 40 mm (1 9/16'')
MOUNTING
The unit is mounted with the master plate from the
delivery set, fig. 1. Please prepare also two air ducts of
required length or one of the mounting sets MICRA 60.
The mounting set MICRA 60 is specially designed for
Fig. 1
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: (513)348-3853
e-mail: sales@ventsus.com
www.ventsus.com
Tools required
Screwdriver

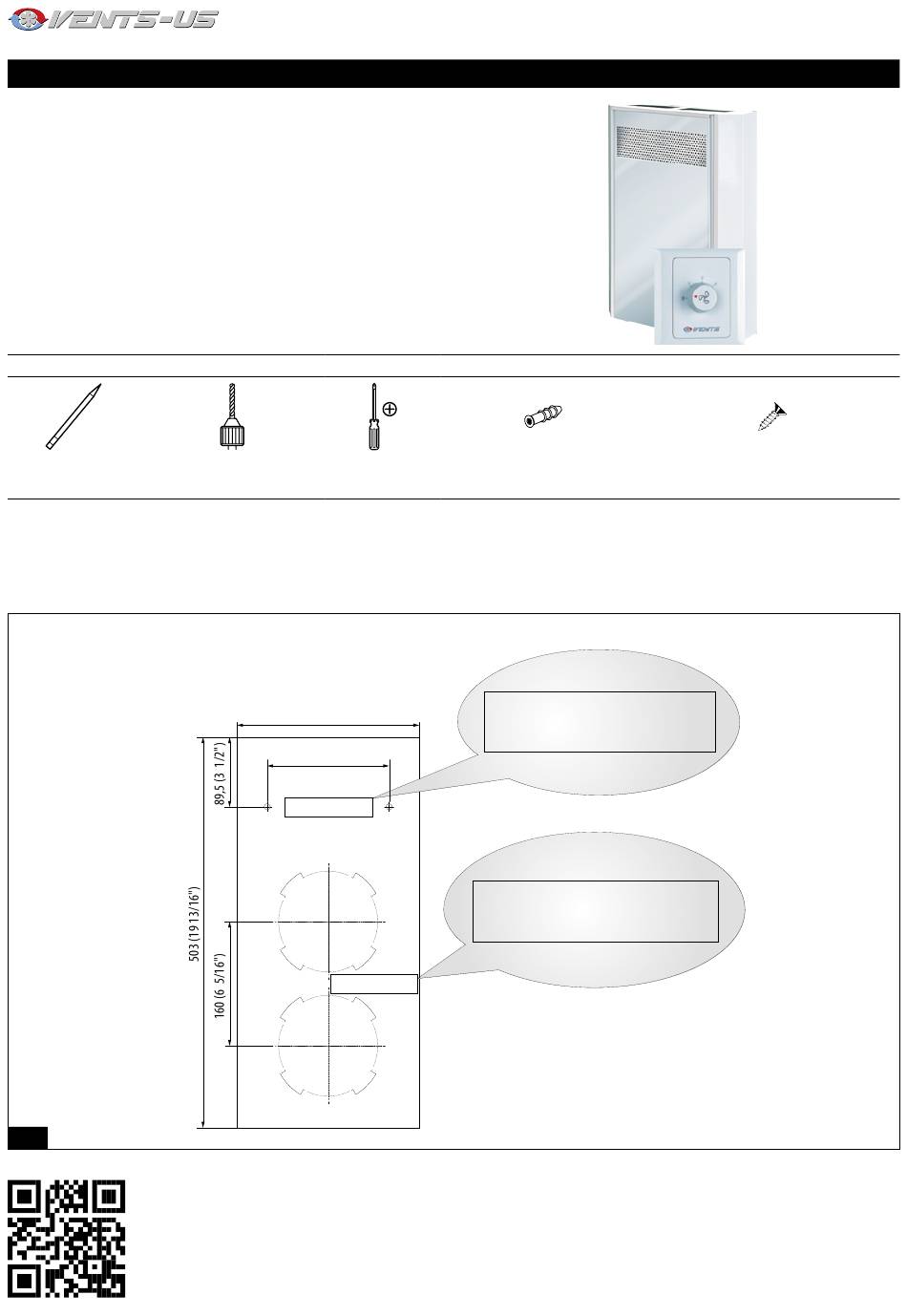

PAPER MASTER PLATE FOR HOLE MARKING [MM] (INCHES)
239 (9 7/16")
160 (6 5/16")
Dowel Ø 8 (Ø 5/16''), 40 mm (1 9/16'')
2 pcs.
mounting of the unit at general construction stage. It
includes two plastic air ducts, each 19 13/16'' long and two
master plates for marking the holes on inner and outer wall
sides.
drill 2 holes in the wall, 60 mm (2 3/8")
deep, with a Ø 8 mm (Ø 5/16") tool.
2 holes for the round Ø 125 mm (Ø 5") duct. Fill
the gaps between the wall and the air duct
with a mounting foam.
Screws 5 (1/5''),50 (2)
2 pcs.
MIU_53(MICRA_60)-02
