Whistler 948 Owner's Manual

948EURO_Manual.qxd 8/19/04 1:21 PM Page 1
If you have questions concerning the
operation of this Whistler product
please call:
C S
uSTOmer eRVICE
479.273.6012
Monday - Friday • 8:00 am - 5:00 pm CT
or visit our website
www.whistlergroup.com
Please keep the receipt in a safe place.
You may register your product online at
www.whistlergroup.com. For warranty
verification purposes, a copy of your
dated store receipt must still accompany
any unit sent in for warranty work. If
the unit is returned without a dated store
receipt an out of warranty service charge
applies. Note: Your warranty period begins
at the time of purchase. The warranty is
validated only by the dated store receipt!
Now is the time to record the serial number
of the unit in the space provided in the
warranty section of the manual.
INSTALLATION
Mounting Guidelines
• Mount the unit as low as possible near the center
of the windshield.
• Do not mount your unit behind wipers, ornaments,
mirrored sunscreens, etc. These obstructions have
metal surfaces which can affect radar and laser
signals and reduce critical warning time. (Regular
tinted glass does not affect reception.)
• Some windshields have an Instaclear ™ or Electriclear ™
type coating, which affect radar signals. Consult your
dealer or the owner's manual supplied with your vehicle
to determine if your windshield has this coating.
• Avoid placing unit in direct contact with windshield.
• To reduce the possibility of theft, conceal your unit
when not in use.
Windshield Mounting
• Install the two suction cups and rubber bumper
onto the bracket by fitting them into their holes.
• Press the suction cups onto the windshield at the
location you have chosen. IMPORTANT: Some
newer cars have a plastic safety coating on the
inside of the windshield. The windshield bracket
may leave permanent marks on this type of surface.
To find out if your vehicle has this type of windshield,
check the owner's manual or ask your dealer. We
recommend that you do not leave the suction cup
bracket on the window in direct sunlight.
If the detector is removed, this may cause blistering
of the dash in some vehicles.
5
INTRODUCTION
Dear Whistler Owner,
For many of us, a vehicle is more than just transportation.
It can be a mobile office, communications or entertainment
center, or simply an expression of your personality. Whistler
products are designed to make the time you spend in your
vehicle more productive and provide you technology for
your everyday life.
Your new Whistler laser-radar detector is fully featured to
provide these features and more:
HIGH GAIN LENS provides increased field of view
•
• CITY MODE reduces the annoyance of false alerts
Even though these units are packed full of features, they're
still very easy to use. To fully utilize your unit to its potential,
we recommend reading this entire manual or visit our
FAQ page on our web site www.whistlergroup.com.
Enjoy your new Whistler Detector and please drive safely.
Sincerely,
The Whistler Group, Inc.
INSTALLATION
• Slide the detector onto the bracket until it locks into place.
Setting Saver
• If necessary, the unit may be leveled by bending
Setting Saver saves your personalized setting s so
the windshield bracket. Press the bracket release
that when the detector is turned off and then on
button and remove the detector before bending.
again, you do not have to re-enter them.
Power Connection
Feature Engaged Confirmation
• Plug the small end of the power cord into the
Each time a button is pressed, one beep confirms
unit's power jack.
feature "on", two beeps confirm feature "off".
• Plug the large end into the vehicle's cigarette lighter.
Audio Level Adjustment
NOTE: Cord fits tightly into detector. When
As the audio level is adjusted, beeps are provided at
installing the cord, expect some resistance.
each level and the display indicates the current level
Fuse Replacement by lighting or flashing the Alert LEDs in sequence.
The lighter socket plug is equipped with a replaceable
Auto Quiet Mode
2 amp 3AG fuse located behind the silver tip. To
Auto Quiet reduces the selected audio level to level
replace the fuse, carefully unscrew the tip of the plug.
(1) approximately 5 seconds after a radar signal is
IMPORTANT: Unscrew slowly. The tip contains a
detected. The alert for any new signal within 20
spring which may fly out when disassembling.
seconds will resume at level (1). Auto Quiet does not
Insert the new fuse with the spring and screw on the
affect laser alerts.
tip. With use, screw cap on plug may loosen.
Retighten occasionally.
• Press Quiet/Menu (before a signal is detected) to
• Once the Auto Quiet mode is engaged, you may
• Press Quiet (when the unit is not alarming) to
Unscrew the tip of the lighter socket plug carefully when replacing the 2 amp fuse.
OPERATION
Quiet Mode
Power On and Self-Test Quiet cancels audio during an alert and any new alert
within 20 seconds. After 20 seconds, approximately
Each time your Whistler detector is turned on, an
2 beeps are provided on any new alert and unit then
automatic self-test sequence confirms that the speaker
remains quiet.
and visual displays are functional.
• Press Power. Display reads in order:
• Press Quiet to cancel the audio.
1. X 2. K 3. Ka 4. Ku 5. LASER 6. P/C
• Press Quiet a second time during an alert to restore
6
TABLE OF CONTENTS
Model Features Summary........................ 3 - 4
• LED Display
Installation............................................... 5 - 6
• High Gain Lens
• Mounting Guidelines ................................... 5
• Stay Alert
• Windshield Mounting .................................. 5 - 6
• 360° Total Perimeter Protection
• Power Connection and Fuse Replacement ..6
• Quiet Mode
Operation................................................ 6 - 9
• Power On and Self-Test ................................6
• Setting Saver .................................................7
• Feature Engaged Confirmation ....................7
• Audio Level Adjustment ..............................7
• Auto Quiet Mode ..........................................7
• Quiet Mode ...................................................7
• City Mode .....................................................8
• Highway Mode .............................................8
• Dim/Dark Mode .......................................... 8 - 9
• Vehicle Battery Saver Mode ......................... 9
• Stay Alert Feature .........................................9
Laser/Radar Alerts................................... 10
• Speed Radar Audio/Visual Alerts ...............10
• Laser Audio/Visual Alerts ...........................10
• Alert Priority .................................................10
Reset Features......................................... 10
948 EURO Accessories: Windshield Bracket Kit & Power Cord
Troubleshooting Guide............................ 11
Care and Maintenance............................. 12
Speed Monitoring.................................... 12- 13
• Radar Facts ................................................... 12
• Laser Facts .................................................... 12 - 13
• Laser Tips...................................................... 13
• Other Speed Detection Systems.................13
Warranty Information...............................14 - 16
Specifications........................................... 16
Accessories.............................................. 17
Customer Service..................................... 18
OPERATION
City Mode
Whistler's City Mode is designed to reduce the annoyance
of automatic door openers, intrusion alarms and other
devices which share frequencies with police radar.
Generally X band is used for these devices.
• Press City button to engage City Mode.
City Mode LED will illuminate.
• Press the City button again to disengage City Mode.
Highway Mode will illuminate.
In City Mode, weak radar signals give an initial alert of two
beeps, then remains quiet unless the signal becomes very
strong. When the signal strength increases, two additional
beeps are provided. City mode does not change the audio
alert for laser.
Highway Mode
Highway mode provides full audio warnings anytime
radar (X, K, Ka, Ku) or laser signals are detected, and
is recommended for open road driving.
For more information on City and Highway mode, please visit
engage Auto Quiet.
our FAQ page on our website:
cancel the audio alarm by pressing Quiet.
Dim/Dark Mode
Dim/Dark Mode reduces the illumination of the display.
cancel Auto Quiet mode.
• Press and hold the power button for 2 seconds to
reduce illumination to a Dim setting.
• Pressing and holding the power button for 2 seconds
a second time engages Dark Mode. The display
illumination is further reduced.
the standard audio alert pattern; or turn the unit
off, then on.
7
FEATURE DESCRIPTIONS
WHISTLER FEATURES
Feature Listings of 948 EURO
Whistler's ergonomic and user-friendly design provides a
new level of operating convenience. Special features
• Auto Quiet Mode
include: Note: Not all units have all features listed.
• City Mode
™ • Vehicle Battery Saver

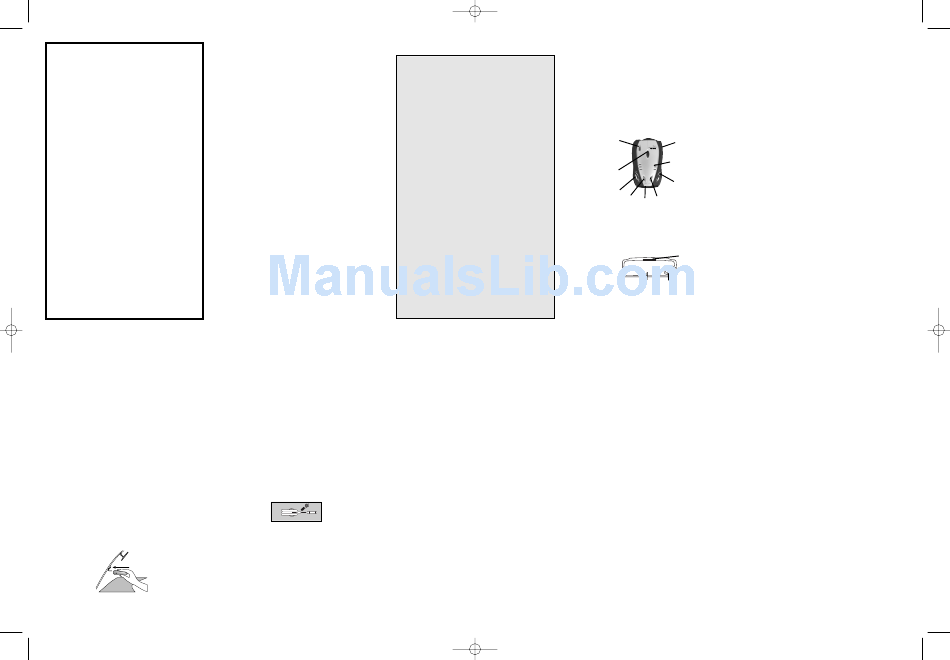

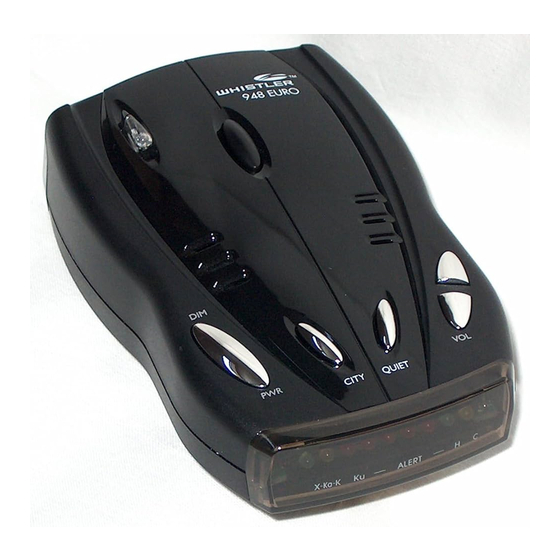

1. Bracket Release Button – Provides quick and
™ • Alert Priority
easy release of the mounting bracket.
• Dim Dark Mode
2. Speaker – Provides distinct audio tones for X,
K, Ka, Ku band radar and laser.
3. Mounting Bracket Location – Slot holds mounting
948 EURO
bracket firmly.
4. Radar Antenna – Compact, high-efficiency antenna
6
receives radar signals.
12
5. Front Laser Antenna – High gain optical lens provides
increased sensitivity and field of view for leading-edge
2
laser detection.
1
6. Rear Laser Antenna – An integrated optical
wave-guide provides superior detection of laser
10
signals transmitted from behind.
9
7. City Button - Reduces the annoyance of false
7
8
11
alerts typically encountered in urban driving areas.
8. Quiet/Menu Button - Pressing QUIET before a
signal is detected engages Auto Quiet Mode which
automatically reduces the audio level after the initial
warning to a low audio level setting. Pressing QUIET
during a radar/laser encounter silences audio alerts,
while allowing visual alerts to keep you informed.
3
9. Power/Dim Dark - Turns unit on/off and engages
Dim/Dark modes (press and hold for 2 seconds).
10. Volume Up/Down Buttons – Adjust volume up or down.
5 11. LED Display – Displays band identification and
4
signal strength.
12. Power Jack – Provides connection for the power cord.
3
OPERATION
Dim or dark can be engaged during an alert. In Dark
Mode, the display goes dark for as long as a signal is
being detected and for 20 seconds after, then the
display returns to the dimmer setting.
• Pressing and holding the power button a third
time restores full illumination to the display.
Vehicle Battery Saver Mode
The Vehicle Battery Saver Mode automatically shuts
off your detector within 6 hours if you forget to turn it
off. The timer is reset if the detector is turned off,
unplugged or any button is pressed before the 6 hours have
expired. The detector will alert you with an audible and
visual warning before it shuts off.
During this warning you can reset the unit by pressing
any button. This will reset the timer. If the unit has
automatically turned itself off, press the Power button to
turn the unit back on. You can manually engage the
Vehicle Battery Saver Mode by pressing and holding
the City button until one beep is heard.
Stay Alert Feature
www.whistlergroup.com
The Stay Alert Feature is designed to test a driver's
alertness. To engage (when unit is not alarming),
press and hold the City button for approximately 2
seconds. Release the button during or immediately
after the alerts are given.
The "H" or "C" will flash indicating Stay Alert is activated.
Within 30-60 seconds two beeps are sounded; to show
alertness, the driver must press either the Volume,
City or Quiet button within 3-5 seconds.
If the button is pressed within 3-5 seconds, the cycle is
repeated. If a button was not pressed within 3-5 seconds,
alarm sounds and the display will flash all LED's.
Press the Power button to exit Stay Alert Mode.
8
4
OPERATION
9
