Page 1

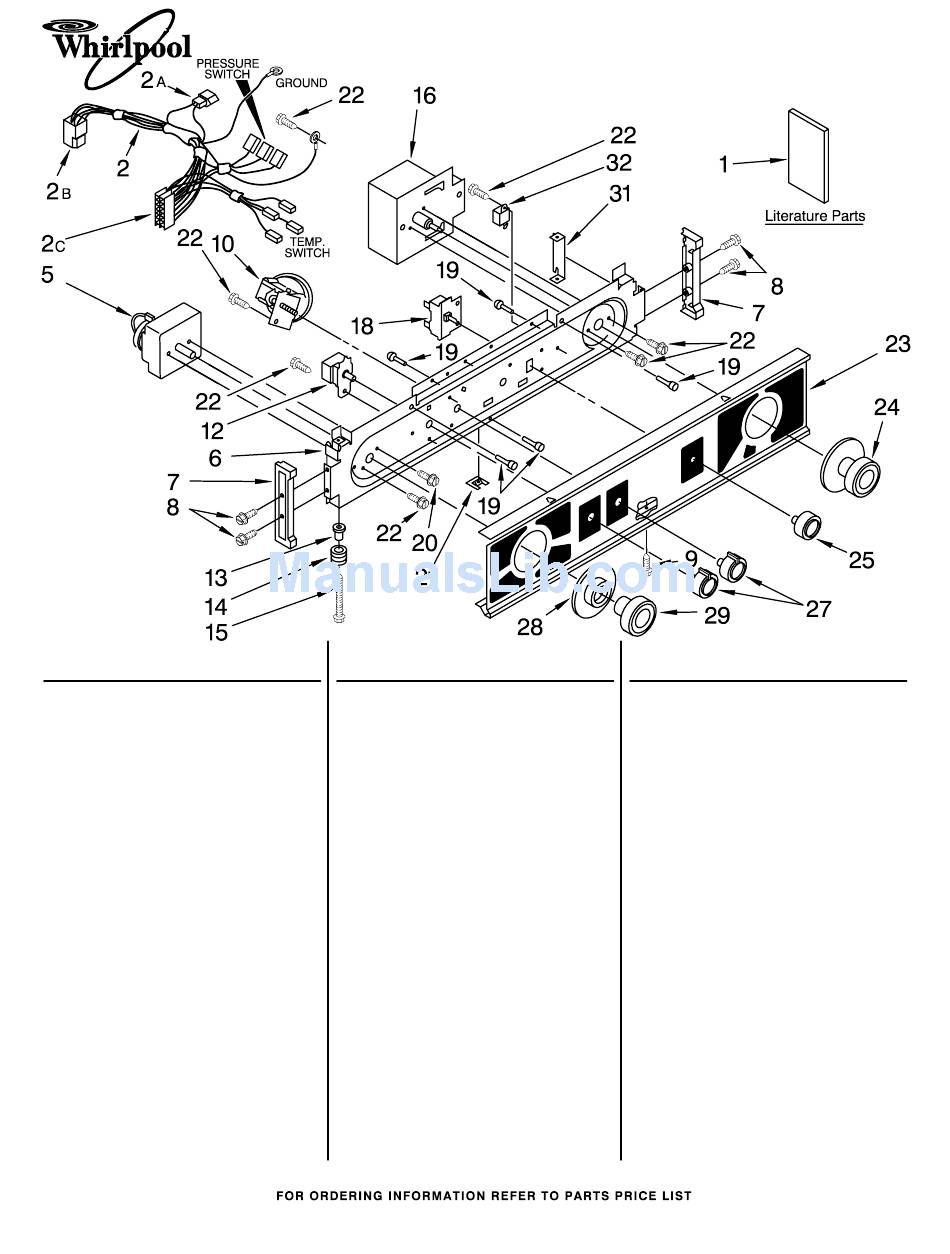

Harness) 3948614 Disconnect Block (Connects With Automatic Timer) 3952499 Timer, Control (60 Hz.) (Automatic Washer) 5−03 Litho in U.S.A. (djc) For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 8528154 Bracket, Control End Cap, Console (L.H. & R.H.) 692993 White 3978584 Biscuit 348689 Screw, 8−18 x 3/4...
Page 2
DESCRIPTION 3406108 Door Switch 697773 Screw, 6−20 x 7/8 Panel, Front 692619 White 3978587 Biscuit 3390734 Seal, Door 695656 Door, Rear For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION Door, Front 348205 White 3978598 Biscuit 8066123 Bearing & Seal...
Page 3
DRYER CABINET AND MOTOR PARTS For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) 4377949...
Page 4
3402293 White 3978589 Biscuit 3399602 Elbow, Upper 3394083 Clip, Front Panel (2) 98234 Clip, Ground 3399603 Elbow, Lower 8066064 Belt, Drive For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 8066051 Pulley, Motor (60 Hz.) 3394332 Idler & Slide...
Page 5
DRYER BULKHEAD PARTS For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) 4377949...
Page 7
DRYER SUPPORT AND WASHER PARTS 4377949 For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 694304 Cover, Channel 692647 Support, Dryer (L.H.) 343641 Screw, 10−16 x 1/2 3400000 Screw, 10−24 x 3/8 (8) (Washer Cabinet To Dryer Supports) 692646 Support, Dryer (R.H.)
Page 8
3398847 Biscuit 384475 Bumper, Lid (2) 384458 Hinge, Lid (L.H.) 3351355 Screw, Lid Hinge Mounting (4) 692985 Clip, Spring (2) (Top To Cabinet) For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 384693 White 3978593 Biscuit 19119 Bumper, Lid...
Page 9
WASHER CABINET PARTS For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) 4377949...
Page 10
WASHER CABINET PARTS For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 356746 Clip, Condenser 343641 Screw, 10−16 x 1/2 9740848 Screw, Mixing Valve Mounting 3952163 Valve, Water Mixing 370451 Clamp, Hose 692699 Hose, Water Inlet (Siphon Break To...
Page 11
3946846 Spring & Damper Assembly 62646 Cap, Clutch Spring (2) 3360630 Gearcase (Complete)(Refer To Page 15 For Further Breakdown) 4377949 For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 3357334 Screw, (Gearcase To Tub Support) 62611 Plate, Motor Mount To...
Page 12
MACHINE BASE PARTS For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 285203 Centerpost Bearing Kit (Incls. Illus. 10, 11, & 12) 64137 Shield, Tub 388492 Spring, Counterweight 3406201 Suspension Assembly (3) 63755 Base 356934 Seal, Centerpost 3347047 Bearing,...
Page 13
TUB AND BASKET PARTS 4377949 For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) Illus. Part DESCRIPTION 3355758 Cap, Agitator 358237 Screw & Washer (5/16−24 x 1) 63840 Filter, Agitator 3349098 Agitator 64175 Tub Ring & Gasket (Includes Illus. 7, 14 & 15)
Page 14
WASHER WATER SYSTEM PARTS For Models: LTG5243DQ3, LTG5243DT3 (Designer White) (Biscuit) WS900B Illus. Part DESCRIPTION 285321 Sleeve Kit, Plastic Drain Hose (Contains 2 Sleeves) 65349 Clamp, Hose (2) 16272 Connector, Straight 285320 Siphon Break (Not Included) 661575 Hose, Corrugated Plastic Drain (4 Ft.)
