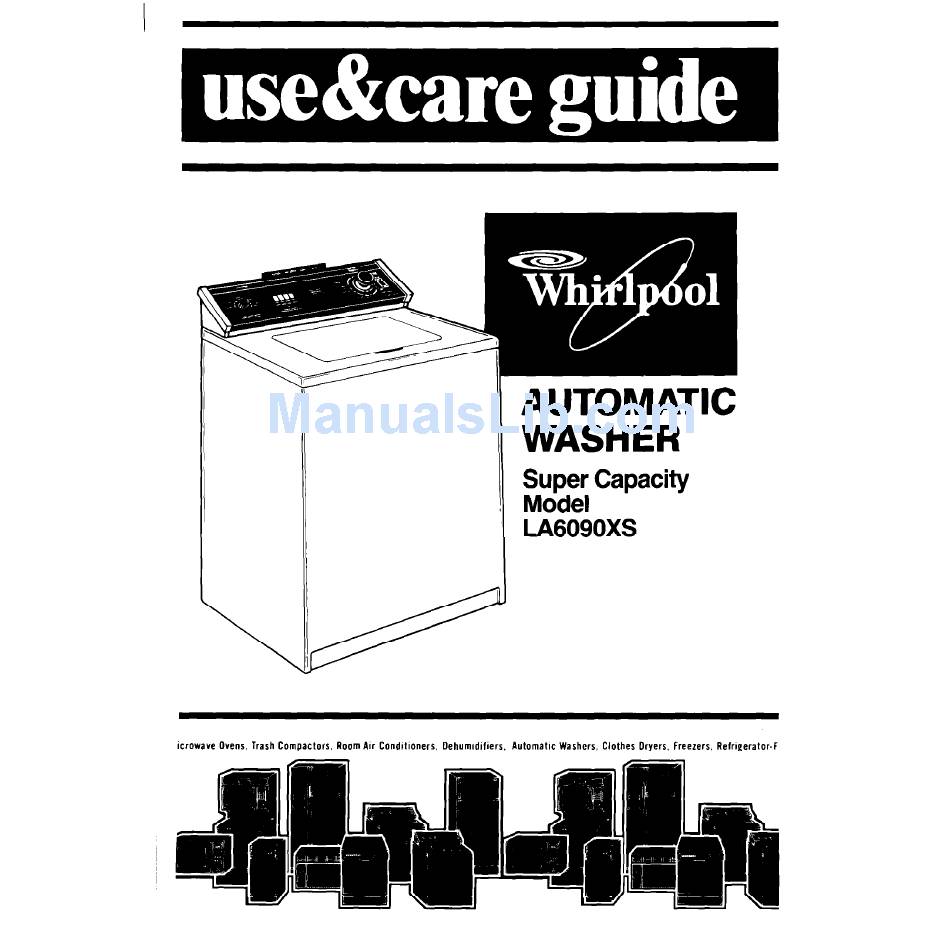

- Page 1 Ovens. Trash Compactors, Room AM Conditioners. tlehum~d~fiers. Automatic Washers. Clothes Dryers, freezers. Relrlgerator-F AUTOMATIC WASHER Super Capacity Model LA609OXS...
-
Page 2: Table Of Contents
INSTRUCTIONS. OPERATING INSTRUCTIONS.. Starting Your Washer What Happens in Each Cycle OTHER OPERATING INSTRUCTIONS.. EXTRA RINSE OPTION For a Rinse and Spin ,61987 Whirlpool Parts and features LOAD LAUNDRY CYCLE SIZE INFORMATION CONTROL Copy your Model and Serial Numbers here... -
Page 3: Instructions
Additional Safety Instructions ALWAYS store detergent, laundry aids other materials in a cool, place where children can’t reach them- in a locked cabinet if possible. ALWAYS read and follow instructions on packages of detergent and laun- dry aids - especially warnings precautions. -
Page 4: Operating Instructions
Operating instructions Starting Your Washer Be sure to measure and add detergent, a sorted load in the washer . Select a LOAD SIZE Turn the knob to point at a setting that describes the size of load you want to wash. Set the knob anywhere on or be- tween EX SMALL (a few small items) - Page 5 Start the washer Push in the Control Knob and turn it to the right. It must be pushed and turned only clockwise. Start the washer by pulling out the Control Knob. The washer will fill to the level you set with wash water of the selected temper- ature.
-
Page 6: What Happens In Each Cycle
What Happens in Each Cycle* Each cycle has different agitation kinds of fabrics. Numbers on the dial in each cycle agitation time. When the Cycle Control Knob is set to a number before agitation and timing starts, After agitation until it points to OFF and the cycle ends. - Page 7 NOTE: You may hear the sound of wafer spraying cycles. In some cycles, cold wafer is sprayed the rinsing. Gentle Wash System For better fabric care in the REGULAR and PERMANENT PRESS cycles, the agitation speed is reduced during the last few minutes of wash time. NOTE: cold rinse water Always...
- Page 8 PERMANENT PRESS LIGHT Cycle pI$z&q,~ A cycle designed lightly soiled permanent press and some synthetic fabrics. The cool-down rinse helps keep wrinkles from setting info these items. 1 Cycle ~~~~~~~, A cycle that gently washes and spins moder- ately soiled delicate items and washable knits.
- Page 9 SPIN Speed 1 Spray Rinse NOTE: Always use cold rinse water WASH for permanent press fabrics. Speed...
- Page 10 SOAK and PRE-WASH Cycles Brief periods and soak time help remove heavy stains that need extra pretreatment. mended detergent additive. should lowed SUPER WASH Cycle Use for washing soiled loads that require maximum Double detergent when using the SUPER WASH Cycle. of agitation soils and certain Use recom-...
- Page 11 Pre-wash setting begins here, [see page 12). Special care is needed when soaking See your “Laundry Guide” for proper or pre-washing laundry. use of this cycle.
-
Page 12: Other Operating Instructions
Other operating instructions Extra rinse option (automatic) For an automatic extra rinse in the REGULAR HEAVY or REGULAR NORMAL Cycles: Flip the Extra Rinse button to the “ON” position before the REGULAR Cycle starts. The washer will automatically proceed into the extra rinse and spin after the REGULAR Cycle. -
Page 13: For A Soak Or Pre-Wash
For a soak or pre-wash For best results, use warm water for soaking or pre-washing stained laundry. Hot water can set stains. ‘To start soak or pre-wash with agitation, must point to a number Liquid bleach dispenser Always measure bleach. Do not guess. -
Page 14: Fabric Softener Dispenser
Liquid fabric softener dispenser 1. Add detergent and load to the basket. 2. Add liquid fabric softener to the dispenser using the amount recom- mended on the bottle. 3. Avoid dripping or spilling any fabric softener on the load. MAGIC CLEAN@ lint filter The lint filter in your washer cleans itself. -
Page 15: Caring For Your Washer
Caring for your was ;her WHEN NOT WASHING, keep both water faucets turned off, this takes the pressure off the water inlet valve and hoses. REMOVE SHARP OBJECTS such as pins, buckles, etc., from clothes before washing. Close metal zippers. AFlER WASHING, use a soft dry cloth to wipe the outside and inside dry. -
Page 16: Winterizing
Winterizing Because some water stays in the washer, freezing can cause a lot of damage. If your washer stored or moved during the cold weather... 8) ,?. _’ 1. Shut off both water 2. Put a quart of faucets. Disconnect automotive-type and drain water antifreeze... - Page 17 If you need service or assistance, we suggest you follow these five steps: Before calling for assistance... Performance problems often result from little things you can find and fix yourself without tools of any kind. If your washer does not fill: Is the power supply cord...
-
Page 18: If You Need Service Or
Whirlpool appliance. ‘If you must call or write, please pro- vide: model number, serial number, date of purchase, and a complete description of the problem. - Page 19 Notes...
- Page 20 D. Damage to washer caused of God or use of products E. Anv labor costs durina the limited WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE- QUENTIAL DAMAGES. Some states do not allow incidental or consequential not apply to you.
