Whirlpool WTW6600SB0 Parts List

Whirlpool automatic washer top and cabinet parts
Hide thumbs Also See for WTW6600SB0:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

See also: Use and Care Manual

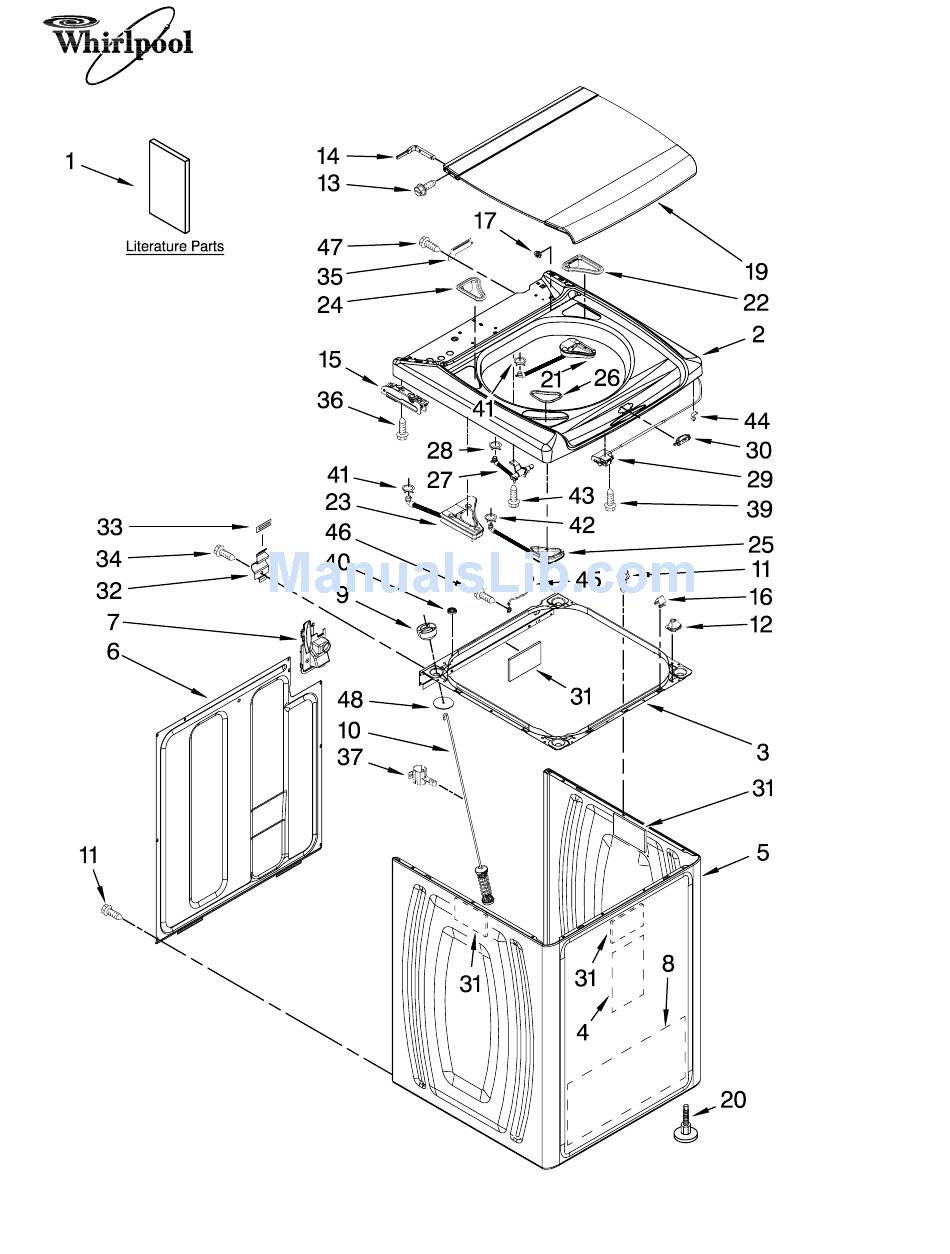

TOP AND CABINET PARTS

AUTOMATIC WASHER
For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0
(White)
(Biscuit)
(Black)
1−08 Printed In U.S.A. (drd)
1
Part No. 8181164

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTW6600SB0 and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool WTW6600SB0

Summary of Contents for Whirlpool WTW6600SB0

  • Page 1: Top And Cabinet Parts

    TOP AND CABINET PARTS AUTOMATIC WASHER For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 (White) (Biscuit) (Black) 1−08 Printed In U.S.A. (drd) Part No. 8181164...
  • Page 2 TOP AND CABINET PARTS For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 Illus. Part DESCRIPTION Literature Parts 8566931 Use & Care Guide 8567470 Installation Instructions (DVD) 8567037 Tech Sheet 8566929 Quick Start Guide 8577781 Wiring Diagram 8567168 Energy Guide 8565311 White 8565312 Biscuit...

  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 (White) (Biscuit) (Black) 8181164...
  • Page 4 CONTROL PANEL PARTS For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 (White) (Biscuit) Illus. Part DESCRIPTION 1 W10104830 Control Unit Assembly, Machine & Motor 8565260 Gasket, Valve Tray Tray Assembly, Console (Includes Items 2 & 4) 8565304 White 8565306 Biscuit 8565305 Black 8565259 Gasket,...
  • Page 5 MOTOR, BASKET AND TUB PARTS For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 (White) (Biscuit) (Black) 8181164...
  • Page 6 MOTOR, BASKET AND TUB PARTS For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 (White) Illus. Part DESCRIPTION 8578929 Cap, Impeller 2 W10076270 Screw & Washer Assembly 3 W10076260 Washer 8542666 Tub Ring 8572540 Hose Pressure Switch 6 W10076230 Impeller (Washplate) 8533953 Screw, 8−16 x 1.000 (6) 8545948 Hub, Basket−Driven...

  • Page 7: Pump Parts

    For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 8181164 PUMP PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 1 W10049390 Pump Assembly, Drain 8571715 Hose, Drain 8543774 Hose, Recirc 8578573 Pump Assembly, Recirc 8534063 Screw, 10−14 x 1.000 370449 Clamp, Hose 8269146 Clamp, Hose...

  • Page 8: Optional Parts (Not Included)

    OPTIONAL PARTS (NOT INCLUDED) For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 4392901 Biscuit 786020 Black PAINT, BULK (1 qt.)
