Page 1: Top And Cabinet Parts

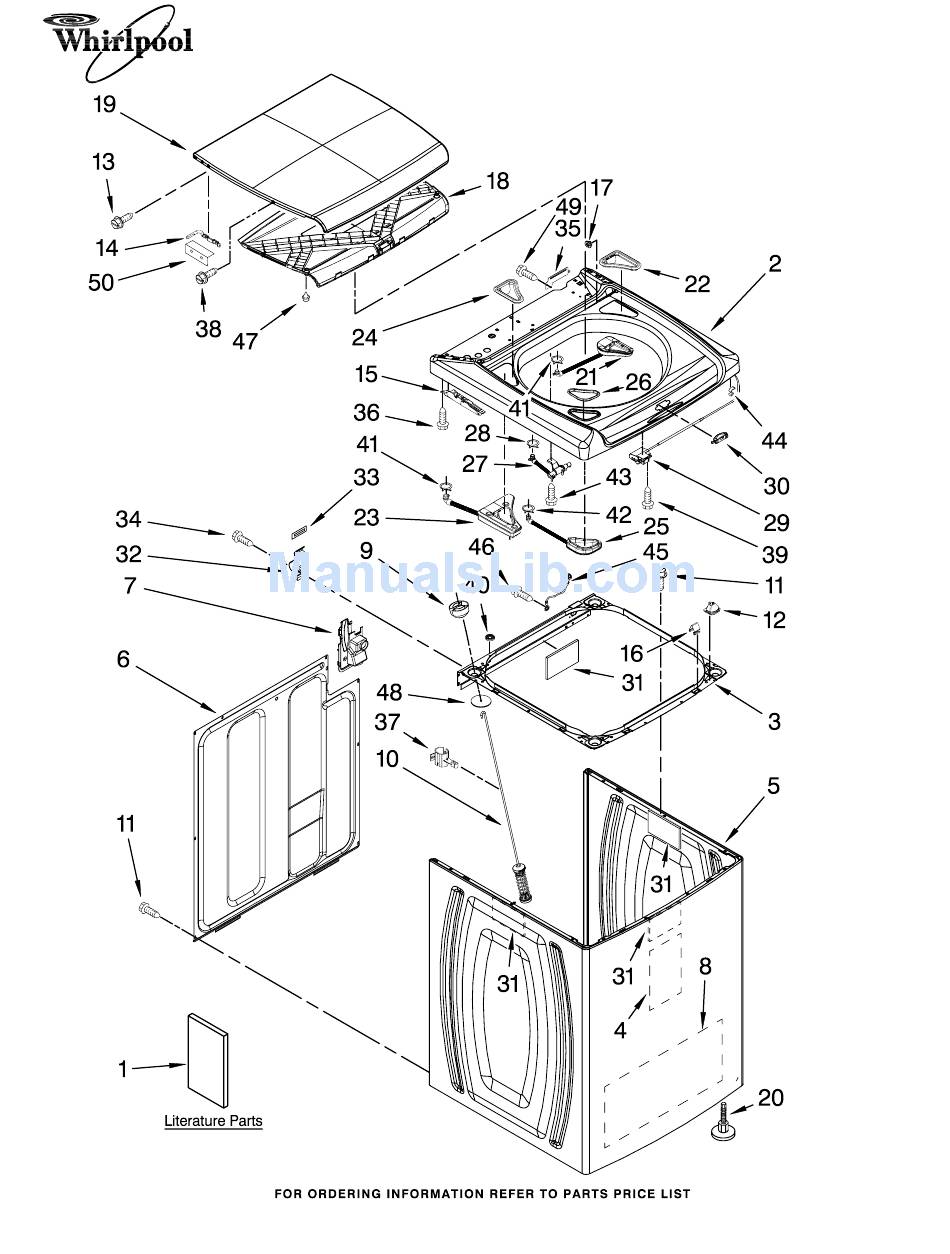

TOP AND CABINET PARTS AUTOMATIC WASHER For Model: WTW6400SW0 (White) 5−06 Litho in U.S.A. (drd) Part No. 8181163... - Page 2 8564009 Damper Assembly, Tub Suspension (Set Of 4) 1157158 Screw, 8−18 x 3/8 8563602 Locator, Top (2) 355274 Screw, Lid Hinge Mounting (4) For Model: WTW6400SW0 (White) Illus. Part DESCRIPTION 8576780 Hinge Arm, Lid (2) Hinge, Spring Assembly 8563962 (Left) 8563963 (Right) 8563785 Lock, Top−...
- Page 3 CONTROL PANEL PARTS For Model: WTW6400SW0 (White) 8181163...
- Page 4 CONTROL PANEL PARTS For Model: WTW6400SW0 (White) Illus. Part DESCRIPTION 1 W10104830 Control Unit Assembly, Machine & Motor 8565260 Gasket, Valve Tray 8565304 Tray Assembly, Console (Includes Items 2 & 4) 8565259 Gasket, Console/Tray 5 W10059320 Valve, Log Assembly 8574885 Knob, Control 8564291 User Interface 8 W10004990 Screw, 6−20 x 1.2...
- Page 5 MOTOR, BASKET AND TUB PARTS For Model: WTW6400SW0 (White) 8181163...
- Page 6 MOTOR, BASKET AND TUB PARTS For Model: WTW6400SW0 Illus. Part DESCRIPTION 8578929 Cap, Impeller 2 W10076270 Screw & Washer Assembly 3 W10076260 Washer 8542666 Tub Ring 8572540 Hose Pressure Switch 6 W10076230 Impeller (Washplate) 8533953 Screw, 8−16 x 1.000 (6) 8545948 Hub, Basket−Driven...
- Page 7 8181163 PUMP PARTS For Model: WTW6400SW0 (White) Illus. Part DESCRIPTION 1 W10049390 Pump Assembly, Drain 8571715 Hose, Drain 8543774 Hose, Recirc 8578573 Pump Assembly, Recirc 8534063 Screw, 10−14 x 1.000 370449 Clamp, Hose 8269146 Clamp, Hose 8317496 Clamp, Hose 8182771 Grommet, Pump...
- Page 8 OPTIONAL PARTS (NOT INCLUDED) For Model: WTW6400SW0 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) WATER SYSTEM PARTS 285442 Connector Kit, Plastic Drain...
