TOP AND CABINET PARTS

AUTOMATIC WASHER
For Model: WTW6200SW0
(White)
5−06 Litho in U.S.A. (drd)
1
Part No. 8181160

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTW6200SW0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whirlpool WTW6200SW0

Summary of Contents for Whirlpool WTW6200SW0

  • Page 1: Top And Cabinet Parts

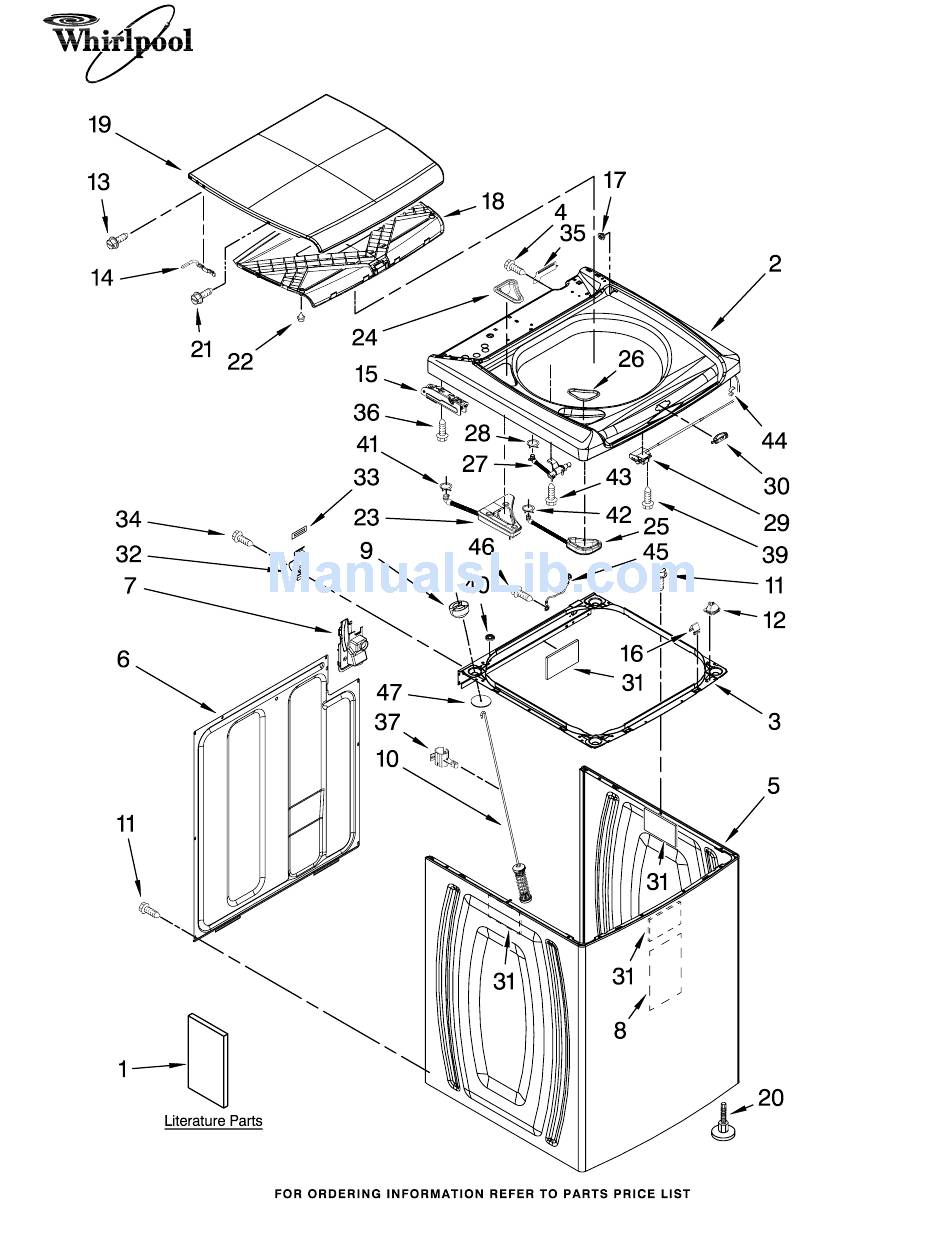

    TOP AND CABINET PARTS AUTOMATIC WASHER For Model: WTW6200SW0 (White) 5−06 Litho in U.S.A. (drd) Part No. 8181160...
  • Page 2 Cabinet 8576475 Ball, Suspension (4) 8564009 Damper Assembly, Tub Suspension (Set Of 4) 1157158 Screw, 8−18 x 3/8 8563602 Locator, Top (2) For Model: WTW6200SW0 (White) Illus. Part DESCRIPTION 355274 Screw, Lid Hinge Mounting (4) 8576780 Hinge Arm, Lid (2)

  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Model: WTW6200SW0 (White) 8181160...
  • Page 4 CONTROL PANEL PARTS For Model: WTW6200SW0 (White) Illus. Part DESCRIPTION 1 W10104830 Control Unit Assembly, Machine & Motor 8565260 Gasket, Valve Tray 8565304 Tray Assembly, Console (Includes Items 2 & 4) 8565259 Gasket, Console/Tray 5 W10059310 Valve, Log Assembly 8574885 Knob, Control 8564288 User Interface 8 W10004990 Screw, 6−20 x 1.2...
  • Page 5 MOTOR, BASKET AND TUB PARTS For Model: WTW6200SW0 (White) 8181160...
  • Page 6 8545953 Hub, Basket−Driver (Includes Item 8) 8545875 Basket Assembly (Includes Items 7, 8, & 9) 8572660 Tub & Drive Shaft Assembly 8577284 Auger, Agitator For Model: WTW6200SW0 (White) Illus. Part DESCRIPTION 8542674 Weight, Tub Counterbalance 14 W10004910 Screw, 12−16 x 1−1/4 (2)

  • Page 7: Pump Parts

    8181160 PUMP PARTS For Model: WTW6200SW0 (White) Illus. Part DESCRIPTION 1 W10049390 Pump Assembly, Drain 8571715 Hose, Drain 8543774 Hose, Recirc 8578573 Pump Assembly, Recirc 8534063 Screw, 10−14 x 1.000 370449 Clamp, Hose 8269146 Clamp, Hose 8317496 Clamp, Hose 8182771 Grommet, Pump...

  • Page 8: Optional Parts (Not Included)

    OPTIONAL PARTS (NOT INCLUDED) For Model: WTW6200SW0 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) WATER SYSTEM PARTS 285442 Connector Kit, Plastic Drain...
