Summary of Contents for Whirlpool WTW5800SG0
-

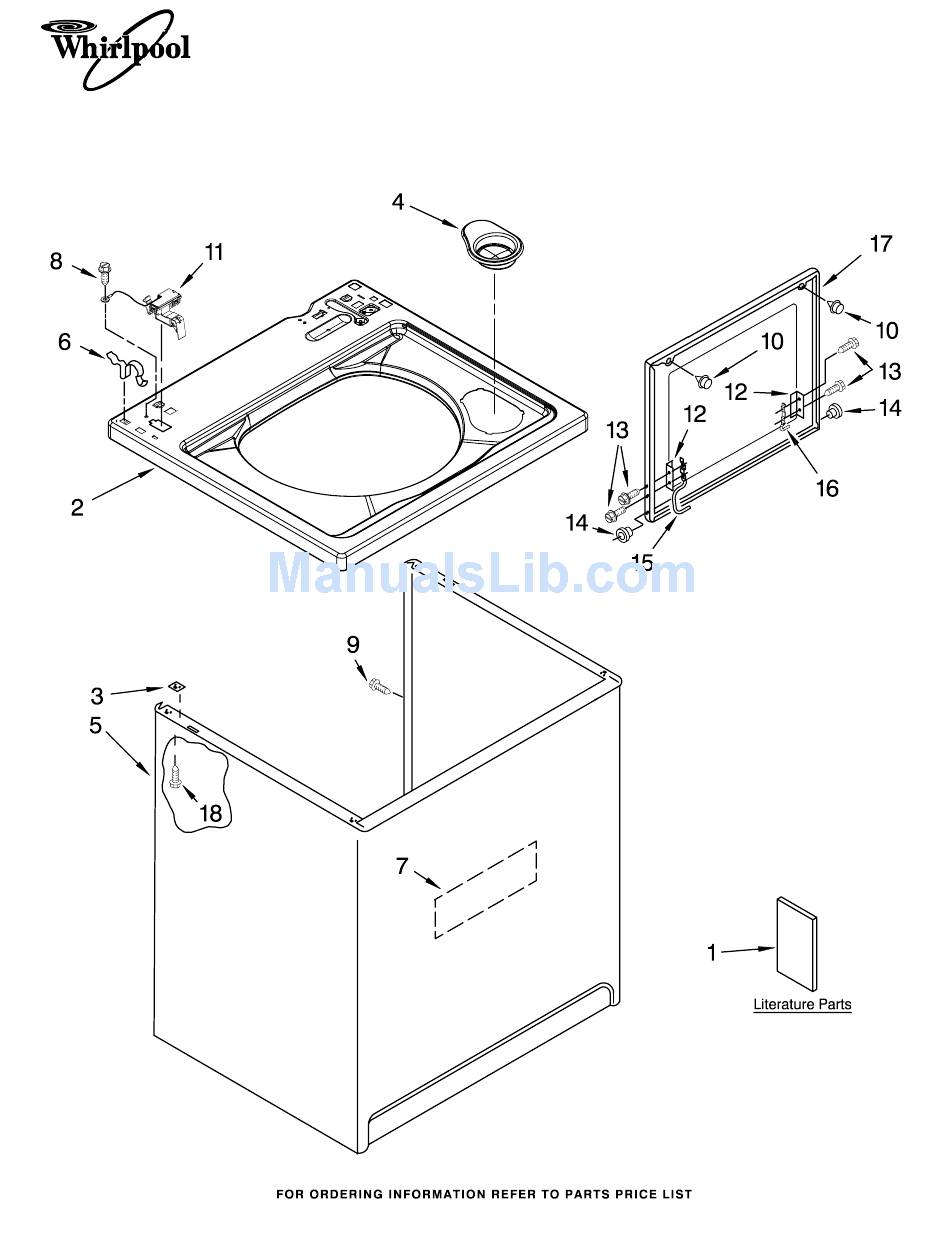

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) 4−06 Litho in U.S.A. (drd) Part No. 8181212 Rev. A... - Page 2 TOP AND CABINET PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION Literature Parts W10044800 Installation Instructions 3955884 Use & Care Guide 3957873 Feature Sheet W10023760 Energy Guide 8577790 Wiring Diagram Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 4313896 Manual, Washer...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) 8181212... - Page 4 90767 Screw, 8−18 X 3/8 8577842 Switch, Water Level 8566003 Bracket, Control 3956162 Cord, Power (Includes Item 15) 3952821 Strain Relief, Power Cord For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION Cap, End (L.H.) (Includes Item 19) 8566035 White...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) 8181212... - Page 6 AGITATOR, BASKET AND TUB PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part 8575076 Dispenser 358237 Screw & Washer 3363003 Clothes Mover 3951632 Agitator 8528150 Tub Ring & Gasket 3976308 Seal, Tub Ring 3354845 Clip, Agitator 8543666 Washer, Agitator 3951682 Cam, Driven 3366877 Dog, Agitator 3952374 Bearing−Driven...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS 8181212 For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 388952 Brake & Drive Tube (Complete) (Refer to Page 11 For Further Breakdown) 63292 Washer, Spin Tube Thrust 62697 Ring, Spin Tube Support... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 8575214 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) 8181212... - Page 10 Timer, Block Disconnect 3948614 White 352089 Black 62889 Receptacle, Terminal (3−Way) (Lid Switch) (Use Term.94613) Or 94614.) For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 353424 Plug, Terminal (3−Way) (Power Cord) (Use Term.94613) 62505 Block, Disconnect (Motor 2 Speed) (Use Term.352088)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS 8181212 For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 356427 Seal, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) 64035... -
Page 12: Gearcase Parts
GEARCASE PARTS For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin... -
Page 13: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) 8181212 For Models: WTW5800SW0, WTW5800SG0 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 4392901 Biscuit PAINT, BULK (1 qt.) 799344 White (Uncut)
