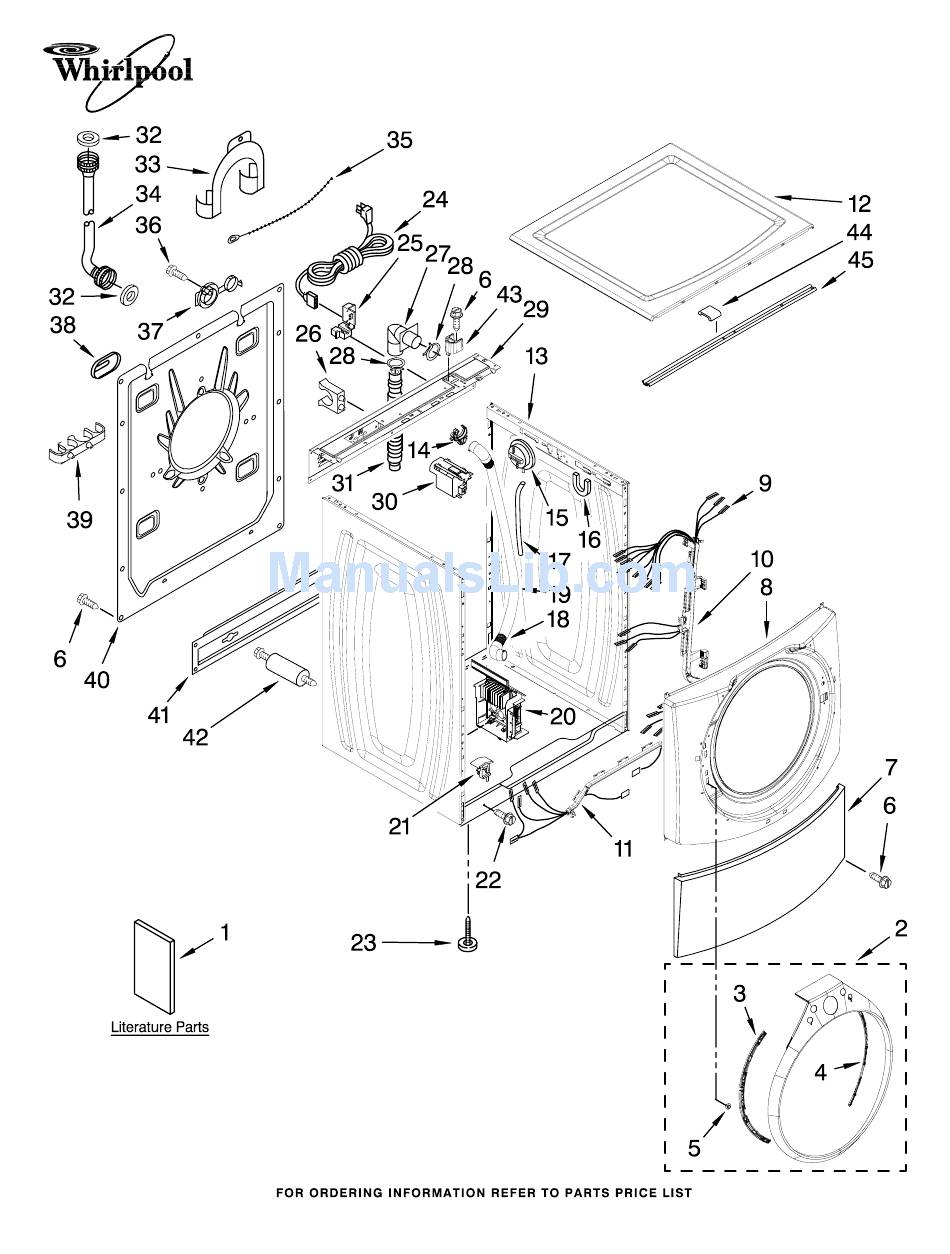

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) 1−08 Printed in U.S.A. (drd) Part No. W10130064 Rev. A... - Page 2 TOP AND CABINET PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) Illus. Part DESCRIPTION Literature Parts 8183052 Use & Care Guide 8183018 Tech Sheet W10114111 Energy Guide 8183017 Quick Start Guide Trim Ring, Teardrop Assembly W10068780 White...
- Page 3 DOOR AND LATCH PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) W10130064 Illus. Part 1 W10100790 Clamp, Bellow 2 W10003800 Bellow 8540772 Lock, Door 4 W10003490 Clamp, Bellow 8540725 Screw 6 W10003390 Hook, Door 8540513 Screw 8540282 Screw...
-
Page 4: Control Panel Parts
CONTROL PANEL PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) Illus. Part DESCRIPTION Panel, Control 8183229 White 8183230 Black 8183231 Biscuit 8183232 Blue Knob, Control (Includes Item 9) W10131369 White W10131370 Black W10131372 Biscuit W10131373 Blue 3 W10133927 Wheel, Detent Kit... -
Page 5: Dispenser Parts
DISPENSER PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) W10130064... - Page 6 DISPENSER PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) Illus. Part 8540282 Screw 8540751 Valve, Water Inlet 370450 Clamp, Hose 4 W10003220 Hose, Flowmeter 5 W10110225 Flowmeter 8540042 Nozzle, Inlet 7 W10003830 Lever, Connection 8 W10003190 Cam, Actuator...
- Page 7 TUB AND BASKET PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) W10130064...
- Page 8 TUB AND BASKET PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) Illus. Part 8533999 Nut, Pulley 2 W10003730 Pulley 3 W10116915 Belt, Drive 4 W10008880 Counterweight, 5 W10003500 Pipe, Ventilation 8540010 Clamp, Vent Hose 7 W10004330 Hose, Exhaust...
- Page 9 PUMP AND MOTOR PARTS For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) Illus. Part DESCRIPTION 1 W10116561 Harness, Motor 2 W10004230 Motor, Drive 8540134 Bolt, Motor 4 W10003330 Ball 8540008 Clamp 6 W10003240 Hose, Tub to Pump W10130064 Illus.
-
Page 10: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Models: WFW9400SWA10, WFW9400SBA10, WFW9400STA10, WFW9400SZA10 (White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) Illus. Part PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 786020 Black 4392901 Biscuit PAINT, BULK (1 qt.)
