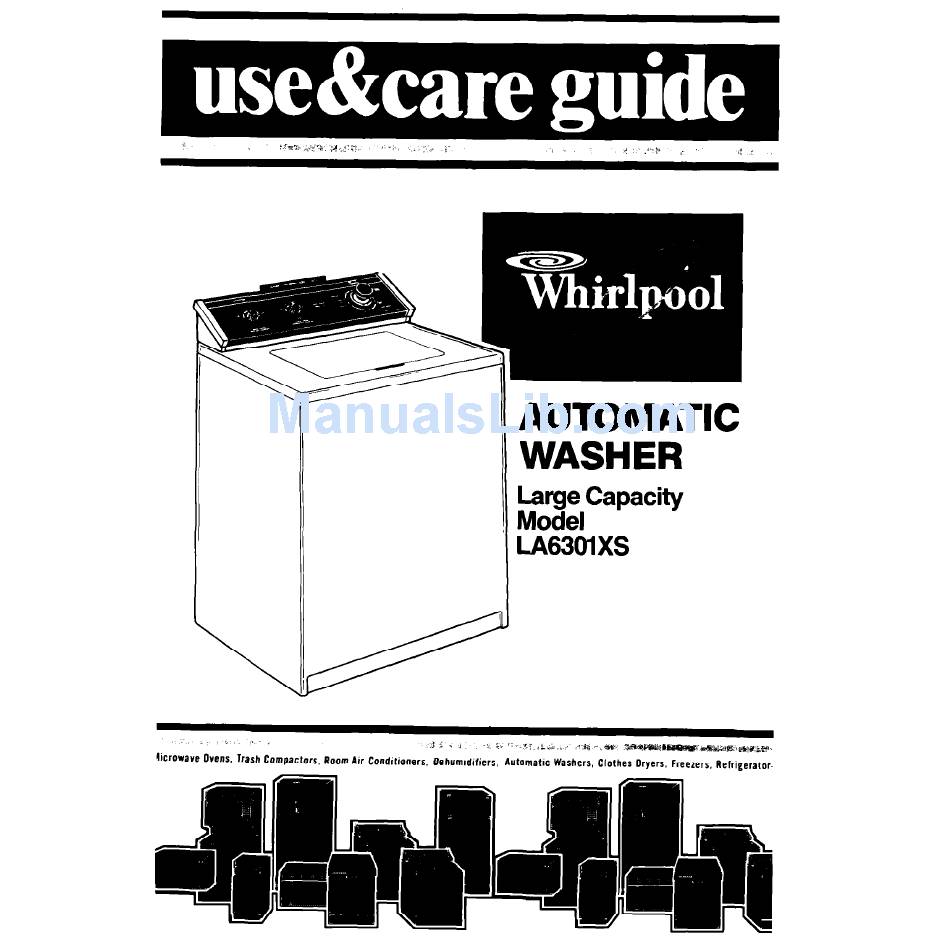

AUTOMATIC
WASHER
Large Capacity
Model
LA63OlXS
rj
(I,
.I s . i
-:
Lk ': -.l..:&,;
.,-
'-+$ .-,*.
~$~,~#?&Y&*~<,,
licrowave Ovens. "ash ComPactor% Room Air Conditioners. Oehumldifiers, Automatx Washers, Clothes Oryers. Freezers, Refrigerator.

Advertisement

Table of Contents
loading

  Related Manuals for Whirlpool LA6301XS

  Summary of Contents for Whirlpool LA6301XS

  • Page 1 licrowave Ovens. “ash ComPactor% Room Air Conditioners. Oehumldifiers, Automatx Washers, Clothes Oryers. Freezers, Refrigerator. AUTOMATIC WASHER Large Capacity Model LA63OlXS Lk ‘: -.l..:&,; ‘-+$ .-,*. ~$~,~#?&Y&*~<,, .I s . i...
  • Page 2: Table Of Contents

    INSTRUCTIONS OPERATING INSTRUCTibiS Starting Your Washer What Haczens V-I Each Cycle OTHER OPERATING INSTRUCTIONS For a Rinse and Spin 01987 Whirlpool Parts and features LOAD LAUNDRY CYCLE TEMPERATURE Copy your Model and Serial Numbers here When you need service or call with a...
  • Page 3 Your Responsibilities You are personally responsible making sure lhd your washer: is used only for jobs normally pected of home automatic washers. is not run by children or anyone un- able to operate it properly. ALWAYS unplug the power supply cord before attempting to service...
  • Page 4: Operating Instructibis

    Operating instructions Starting Your Washer Be sure to measure and add detergent, a sorted load In the washer before starling It. . Select a LOAD SIZE Turn the knob to point at a setting that describes the size of load you want to wash.
  • Page 5 3. Start the washer Push In the Control Knob and turn lt to the rlght. It must be pushed in and turned only clockwise. Start the washer by pulling out lhe Control Knob. The washer will fill to the level you set with wash water of the selected tem- perature.
  • Page 6: Cycle

    What Happens in Each Cycle* Each cycle has different agitation and spin speeds designed for different kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH agitation time. When the Cycle Control Knob is set to a number and pulled out, the washer fills before agitation and timing starts.
  • Page 7 NOTE: You may hear the sound of water spraying during the spin parts of some cycles. In some cycles, cold water is sprayed on the spinning load to help with the rinsing. Genlie Wash System For better fabric care in the REGULAR and PERMANENT PRESS cycles, the agitation speed is reduced during the last few minutes of wash time.
  • Page 8 PERMANENT PRESS LIGHT Cycle A cycle designed for lightly soiled permanent press and some synthetic fabrics. The cool-down rinse helps keep wrinkles from setting into these fabrics. KNITS/GENTLE NORMAL Cycle A cycle that gently washes and splns moder- ately soiled delicate items and washable knits.
  • Page 9 NOTE: Always use cold rinse water WASH for permanent press fabrics. Hlgh speed The washer will proceed to the REGUlAR/HEAW Cycle. If you want a different cycle to follow SUPER WASH, push in the cycle control knob, turn to the cycle and time you want, pull knob out to stat-t.
  • Page 10: Other Operating Instructions

    Other operating instructions For a rinse and spin You may need an extra rinse and spin for heavily soiled loads which need more detergent. (Extra de- tergent can require an extra rinse.) 1. Push Control Knob in. 2. Turn clockwise to any on the dial.
  • Page 11: Llquld Bleach Dispenser

    Liquid bleach dispenser Always measure bleach. Do not guess. Never use more than 1 cup (250 ml) tar a full load. Use less with lower water level settings. Follow directions on bottle for safe use. Use a cup with a pouring spout to avoid spilling.
  • Page 12: Caring For Your Washer

    Caring for your washer WHEN NOT WASHING, keep both water faucets turned off, this takes the pressure off the water inlet valve and hoses. REMOVE SHARP OBJECTS such as pins, buckles, etc., from clothes before washing. Close metal zippers. AFTER WASHING, use a soff dry cloth to wipe the outside and inside dry.
  • Page 13: Winterizing

    Winterizing Because some water stays in the washer, fEeZing can cause a lot of damaae. If your washer is stored or during the cold weather... moved 1. Shut off both water 2. Put a quart of faucets. Disconnect automotive-type and drain water antifreeze in the inlet hoses.
  • Page 14: If You Need Service Or Assistance

    If you need service or assistance, we suggest you follow these five steps: Before calling for assistance.. . Performance problems often result from little things you can find and fix yourself without tools of any kind. If your washer does not fill: Is the power supply cord plugged into a live circuit with the proper Are both water faucets open?
  • Page 15 Whirlpool appliance. *If you must call or write, please pro- vide: model number, serial number, date of purchase, and a complete description of the problem.
  • Page 16: Washer Warranty

    D. Damage to washer caused by accident, of God or use of products not approved E. Any labor costs during the limited warrcinties. WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE- states QUENTIAL DAMAGES, Some incidental or consequential damages not appiv to you.
