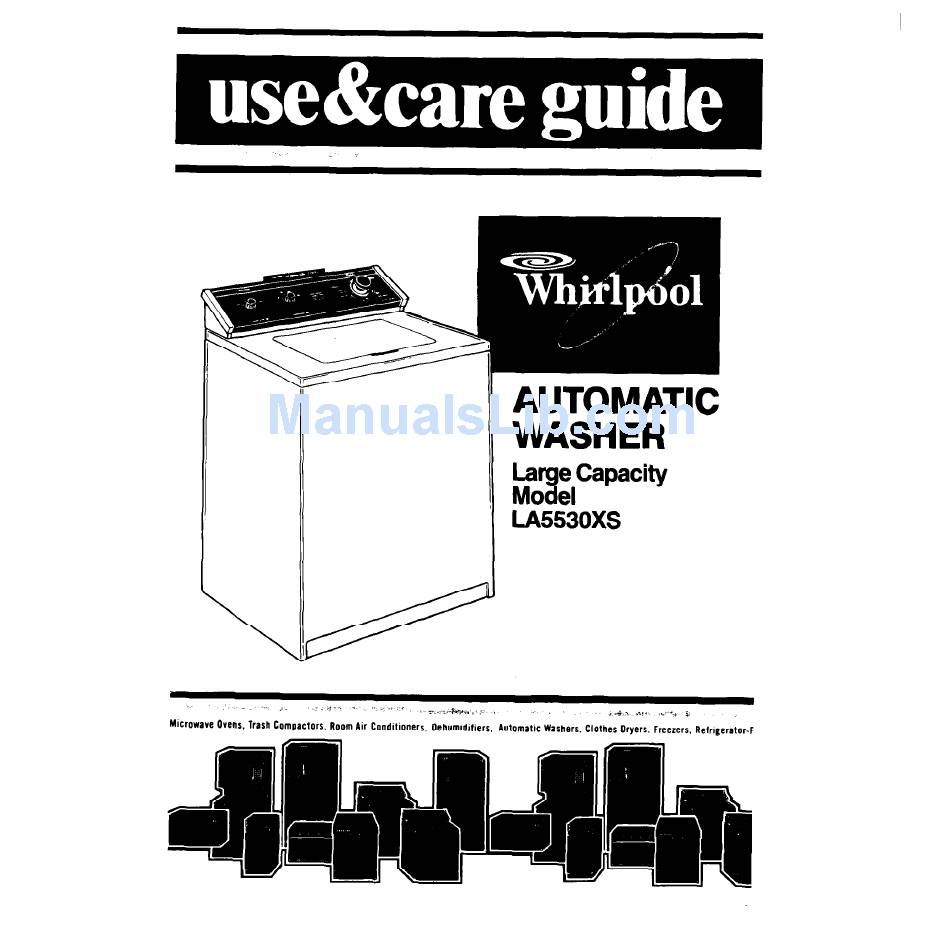

- Page 1 Microwave Ovens. Trash Compactors, Room Air Conditioners. Oehumldifiers. AUTOMATIC WASHER Large Capacity Model LA553oxs L&l A.‘. .-‘-=, -*++wj‘.. Automatic Washers. Clothes Dryers. Freezers, Refrigerator-F &...
-
Page 2: Parts And Features
..OPERATING INSTRUCTIONS.. Starting Your Washer What Happens in Each Cycle OTHER OPERATING INSTRUCTIONS. For a Rinse and Spin ..01987 Whirlpool Corporation Parts and features LOAD LAUNDRY CYCLE SIZE INFORMATION CONTROL SEl.B$TOR... - Page 3 Addtfional Safety Inshucfions and Your Responsibilities store detergent, laundry aids ALWAYS and other materials in a cool, dry place where children can’t reach them- in a locked cabinet if possible. -____-__- read follow instructions ALWAYS on packages of detergent and laun- dry aids - especially warnings and precauttons.
-
Page 4: Starting Your Washer
Operating instructions Starting Your Washer Be sure to measure and add detergent, a sorted load in the washer . Select a LOAD SIZE Turn the knob to point at a setting that describes the size of load you want to wash. Set the knob anywhere on or be- tween EX SMALL [a few small items) and LARGE (a full load). - Page 5 Start the washer Push in the Control Knob and turn it to the right. It must be pushed in and turned only clockwise. Start the washer by pulling out the Control Knob. The washer will till to the level you set with wash water of the selected temper- ature.
-
Page 6: What Happens In Each Cycle
What Happens in Each Cycle* Each cycle has different agitation and spin speeds designed for different kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH agitation time. When the Cycle Control Knob is set to a number and pulled out, the washer fills before aaitation and timina starts. - Page 7 NOTE: You may hear the sound of water spraying during the spin parts of some cycles. In some cycles, cold water is sprayed on the spinning load to help with the rinsing. Gentle Wash System For better fabric care in the REGULAR and PERMANENT PRESS cycles, the agitation speed is reduced during the last few minutes of wash time.
- Page 8 A cycle designed for lightly soiled permanent press and some synthetic fabrics. The cool-down rinse helps keep wrinkles from setting into these items. KNITS/GENTLE NORMAL Cycle KNITS GENTLE A cycle that gently washes and spins moder- ately soiled delicate items and washable knits.
- Page 9 NOTE: Always use cold rinse water WASH for permanent press fabrics. 10-w Speed...
-
Page 10: Soak Cycle
SOAK Cycle Brief periods of agitation and soak time help remove heavy soils and certain stains that need extra pretreatment. Use recom- mended amount of detergent or pre-soa k additive. The should always lowed by a Wash Cycle. Use for washing heavily soiled loads that require maximum soil removal. - Page 11 Special care is needed when soaklng or pre-washing laundry See your “Laundry Guide” for proper use of fhls cycle.
-
Page 12: For A Rinse And Spin
Other operating instructions For a rinse and spin You may need an extra rinse and spin for heavily soiled loads which need more detergent. (Extra detergent can require an extra rinse.) Push Control Knob in. 2. Turn clockwise to any on the dial. -
Page 13: Liquid Bleach Dispenser
Liquid bleach dispenser Always measure bleach. Do not guess. Never use more than 1 cup Use less with (250 ml) for a full load. lower water level settings. Follow directions on bottle for safe use. Use a cup with a pouring spout to avoid spilling. -
Page 14: Caring For Your Washer
Caring for your washer WHEN NOT WASHING, keep both water faucets turned off, this takes the pressure off the water inlet valve and hoses. REMOVE SHARP OBJECTS such as pins, buckles, etc., from clothes before washing. Close metal zippers, AFTER WASHING, use a soft dry cloth to wipe the outside and inside dry Leave... -
Page 15: Drain And Spin
Winterizing Because some water stays in the washer, freezing can cause a lot of damage. If your washer moved stored during the cold weather... Shut off both water 2. Put a quart of automotive-type faucets. Disconnect antifreeze and drain water basket. -
Page 16: If You Need Service Or Assistance
If you need service or assistance, we suggest you follow these five steps: assistance... Performance problems often result from little things you can find and fix yourself wlthout tools of any kind. If your washer does not fill: Is the power supply cord plugged into a live circuit with the proper voltage? Are both water faucets open? -
Page 17: If You Need Service
Whirlpool appliance. *If you must call or write, please pro- vide: model number, serial number, date of purchase, and a complete description of the problem. - Page 18 Notes...
- Page 19 Notes...
-
Page 20: Warranty
Damage to washer caused by accident, misuse, fire, flood, acts of God or use of products not approved Any labor costs during the limited warranties. WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE- QUENTIAL DAMAGES. Some states do not allow the exclusion or IimitatiOn of incidental...
