K10135
Side
2 pcs
Drawer slide Left
Drawer slide right
450
1 pcs
Metal lid
Rail bar
(855),080
2 pcs
1 pcs
Bin (855)
Bin (855)Big
2 pcs
1 pcs
Bumper
Screw flh
7x1,5 mm
3,5x45 mm
4 pcs
8 pcs
24-08-2016 3
/
DU80,080,000
K71115
Base-top
Back panel
1 pcs
Drawer side right
450
1 pcs
1 pcs
Metal frame
(U855),080
1 pcs
Bin (856)Big
1 pcs
BP00003-BP00015-BP01904
Screw flh
Angle
3,5x15 mm
46x43 mm
2 pcs
14 pcs
MNU855,080
K13315
Support
K13180
2 pcs
K13355
Suspension list
1 pcs
1 pcs
ID20095
Drawer side left
1 pcs
Fitting for
drawer front
2 pcs
Screw ph
Lid (855)
3,5x20 mm
1 pcs
4 pcs
Screw ph
Rafix bolt
4x18.5
4,5x11
4 pcs
4 pcs
Euro screw
Euroscrew
6,3x11 mm
4,2x9,5
4 pcs
4 pcs
L06284,156
Drawer front
1 pcs
Drawerback bottom
(855),080
1 pcs
Fitting for
Fitting for
drawerback right(855)
drawerback left(855)
1 pcs
Screw ph
4x15
6 pcs
BP21XXX
Alu profil
Euro screw
Rail holder front
5,8x15
48,5x30 mm
2 pcs
2 pcs
L01680,156
Drawer Front
1 pcs
Drawerback upper
(855),080
1 pcs
1 pcs
1 pcs
1 /
12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik MNU855-080
Summary of Contents for Kvik MNU855-080

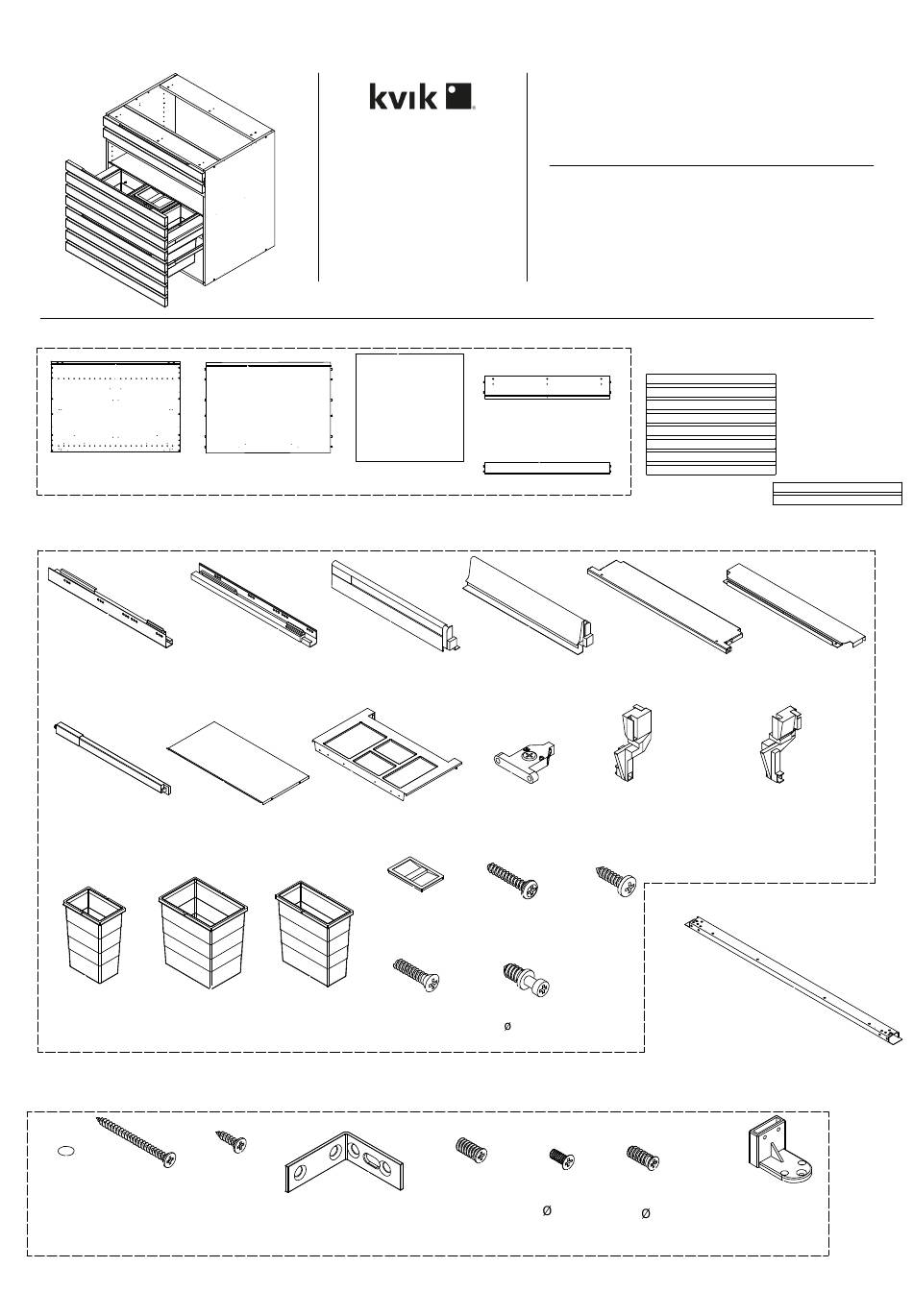

- Page 1 MNU855,080 DU80,080,000 L06284,156 Drawer front K13315 Support K71115 K13180 K10135 2 pcs Base-top Back panel Side K13355 L01680,156 Suspension list 1 pcs 2 pcs Drawer Front 1 pcs 1 pcs 1 pcs 1 pcs ID20095 Drawer slide Left Drawer slide right Drawer side right Drawer side left Drawerback bottom...
- Page 2 MNU855,080 FIG. Screw flh 3,5x15 mm 4 pcs Rafix bolt 4,5x11 2 pcs Euro screw 6,3x11 mm K10135 1 pcs Side Screw flh 3,5x15 mm Drawer slide Left 1 pcs FIG. Screw flh 3,5x15 mm 4 pcs Rafix bolt 4,5x11 2 pcs Euro screw 6,3x11 mm...
- Page 3 MNU855,080 FIG. K13355 K13315 Suspension list Support K13355 Suspension list K13315 Support NB!!! K71115 Base-top K10135 Side FIG. K13180 Back panel 24-08-2016 3...
- Page 4 MNU855,080 FIG. Screw flh 3,5x45 mm K10135 4 pcs Side FIG. Screw flh 3,5x45 mm 4 pcs 24-08-2016 3...
- Page 5 MNU855,080 FIG. Fitting for drawer front 2 pcs Bumper 7x1,5 mm Bumper 7x1,5 mm Bumper L06284,156 7x1,5 mm Drawer Front Bumper 7x1,5 mm FIG. Rall bar 2 pcs L06284,156 Drawer Front 24-08-2016 3...
- Page 6 MNU855,080 FIG. Fitting for drawerback right(855) Drawerback bottom (855),080 Click Drawerback upper (855),080 Click Fitting for drawerback left (855) FIG. Click Drawer side left Click Drawer side right 24-08-2016 3...
- Page 7 MNU855,080 FIG. Click Click Click Click FIG. Screw ph 4x18.5 4 pcs Metal frame (U855),080 Click 24-08-2016 3...
- Page 8 MNU855,080 FIG. Screw ph 4x18.5 4 pcs Screw flh 3,5x15 mm 4 pcs Angle 46x43 mm 2 pcs L01680 Drawer Front 24-08-2016 3...
- Page 9 MNU855,080 L01680 Drawer Front Euro screw 6,3x11 mm 2 pcs Euroscrew 4,2x9,5 4 pcs Rail holder front 48,5x30 mm 2 pcs BP21XXX Alu profil 24-08-2016 3...
- Page 10 MNU855,080 Euro screw BP21XXX 5,8x15 Alu profil 2 pcs Screw flh 3,5x15 mm 2 pcs Metal lid (855),080 24-08-2016 3 10 /...
- Page 11 MNU855,080 Click Adjustment 24-08-2016 3 11 /...
- Page 12 MNU855,080 Screw ph 4x15 6 pcs 24-08-2016 3 12 /...
