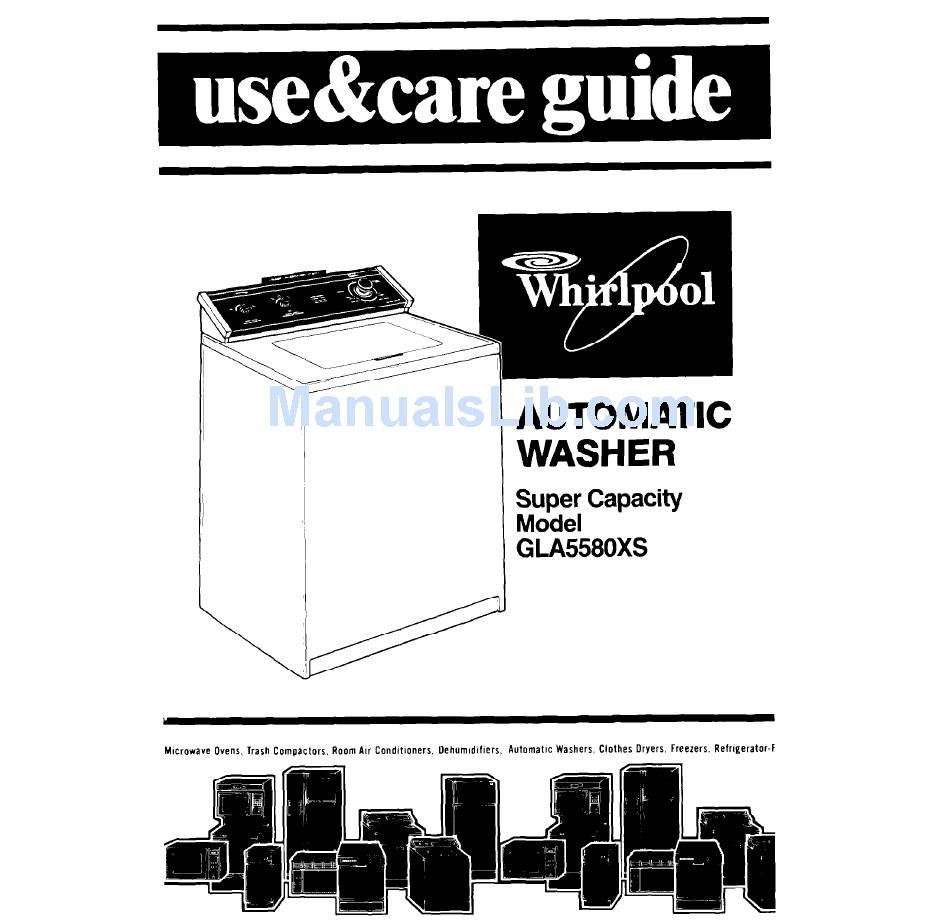

- Page 1 AUTOMATIC WASHER Suopee; Capacity GLA5580XS MIcrowave Ovens, Trash Compactors, Room Air Condltloners, Oehumldlfiers. Automallc Washers, Clothes Dryers. Freezers. Refrigerator-F...
-
Page 2: Parts And Features
Page PARTS AND FEATURES IMPORTANT SAFETY INSTRUCTIONS. OPERATING INSTRUCTIONS. Starting Your Washer What Happens in Each Cycle OTHER OPERATING INSTRUCTIONS. 01990 Whirlpool Parts and features LOAD LAUNDRY TEMPERATURE SIZE INFORMATION SELECTOR /CENTER />“!ffoLr MODEL AND SERIAL NUMBER PLATE Thank you for buying... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using the washer. NEVER wash items cleaned, washed, soaked in or spotted with wax, paint, gasoline, or flammable fluids in the washer. The fumes can create a FIRE HAZARD or EXPLOSION. ALWAYS hand laun- der and air dry fabrics containing these materials. -
Page 4: Starting Your Washer
Operating instructions Starting Your Washer Be sure to measure and add detergent, a sorted load in the washer . Select LOAD SIZE Turn the knob to point at a setting that describes the size of load you want to wash. Set the knob anywhere on or be- tween EX SMALL (a few small items]... -
Page 5: Start The Washer
3. Start the washer Push in the Control Knob and turn it clockwise. Start the washer by pulling out the Control Knob. The washer will fill to the selected water level with the selected wash water temper- ature. After filling, the washer will agitate for the selected number... -
Page 6: What Happens In Each Cycle
What Happens in Each Cycle Each cycle has different agitation and spin speeds kinds of fabrics. Numbers on the dial in each cycle agitation time. When the Cycle Control Knob is set to a number before agitation and timing starts. After agitation until it points to OFF and the cycle ends REGULAR HEAVY Cycle... - Page 7 NOTE: You may hear the sound of water spraying cycles. In some cycles, water is sprayed the rinsing. Gentle Wash System For better fabric care in the REGULAR and PERMANENT PRESS cycles, the agitation speed is reduced during the last few minutes of wash time. WASH Speed NOTE: THE WASHER WILL PAUSE BRIEFLY THROUGHOUT EACH CYCLE.
- Page 8 PERMANENT PRESS LIGHT Cycle Selected Level A cycle designed lightly soiled permanent press and some synthetic fabrics. The cool-down rinse helps keep wrinkles from setting into these items. KNITS GENTLE NORMAL Cycle A cycle that gently washes and spins moder- ately soiled delicate items and washable...
- Page 9 Speed The washer will proceed PARTIAL REGUlAR/HEAW DRAIN want a different SUPER WASH, push in the cycle AQitation control knob, turn to the cycle time you want, pull knob out to start. to the Cycle. If you cycle to follow...
-
Page 10: For A Rinse And Spin
Other operating instructions For a rinse and spin When using extra detergent heavily soiled clothes, or washing special-care items, you may want an extra rinse and spin. 1. Push Control Knob in. 2. Turn clockwise to one of the dots on the dial, as illustrated. -
Page 11: Caring For Your Washer
Caring for your washer WHEN NOT WASHING, keep both water faucets turned off, this takes the pressure off the water inlet valve and hoses. REMOVE SHARP OBJECTS such as pins, buckles, etc., from clothes before washing. Close metal zippers. WIPE UP SPILLS with a soft damp cloth as soon as they occur. - Page 12 Winterizing Because some water stays in the washer, freezing can cause a lot of damage. If your washer stored or moved during the cold weather... 1. Shut off both water 2. Put a quart of faucets. Disconnect R.K type and drain water antifreeze inlet hoses.
- Page 13 2. If you need assistance or service overseas?.. Contact your Military Exchange Whirlpool distributor. Migratory Policy We realize that you’re purchasing a Whirlpool appliance for what be a temporary stay in a particular area. If you are trans- ferred to the United...
- Page 14 FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications...
- Page 15 Notes...
-
Page 16: Warranty
God or use of products not approved E. Any labor costs during the limited WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE- QUENTIAL DAMAGES. Some states do not allow incidental or consequential damages not apply to you.
