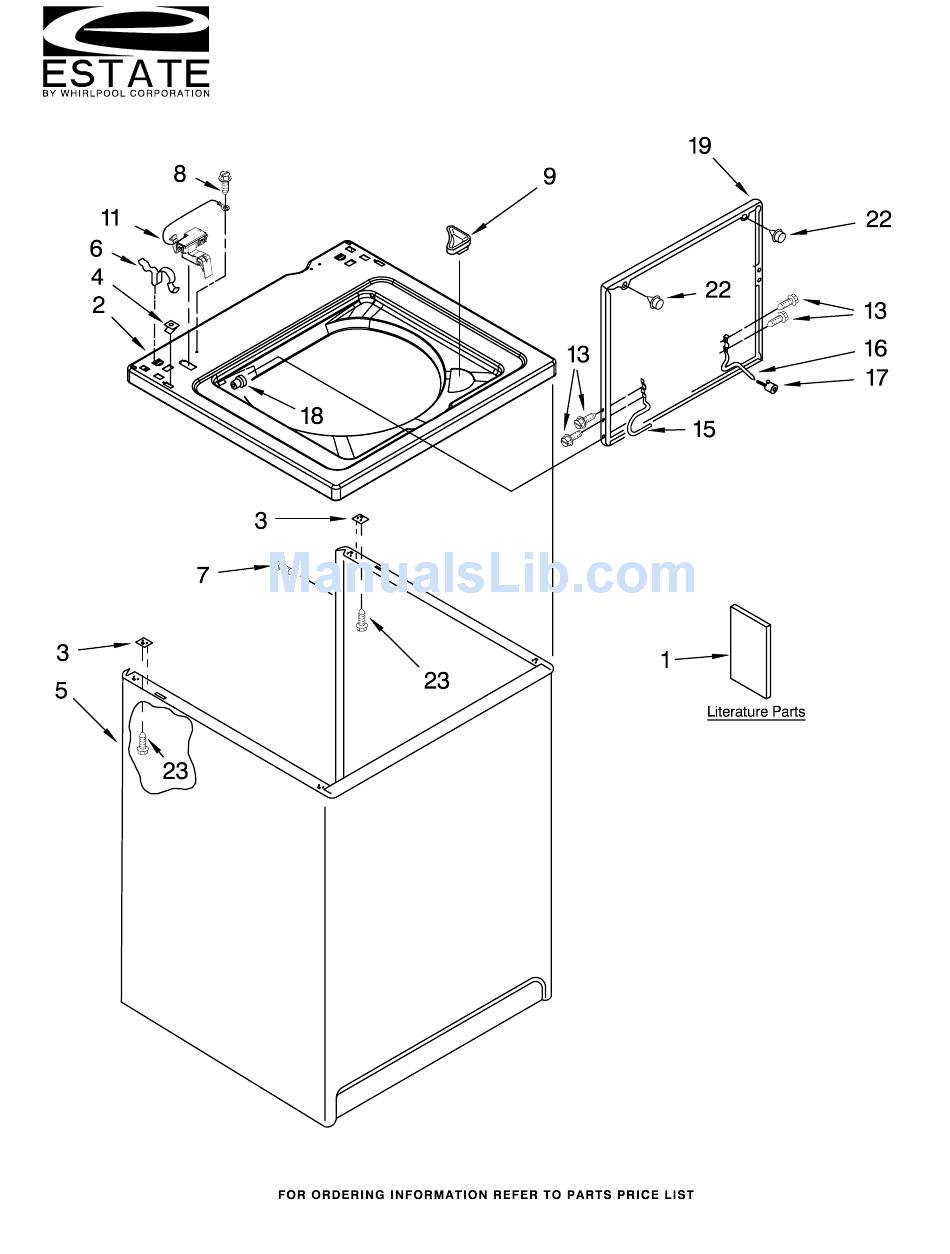

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC For Model: ETW4300SQ1 WASHER (White) 9−06 Litho in U.S.A. (drd) Part No. W10114237... - Page 2 TOP AND CABINET PARTS For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION Literature Parts W10112488 Installation Instructions 3957878 Feature Sheet 3955886 Use & Care Guide W10023560 Energy Guide 8578912 Wiring Diagram 8318064 Top 62750 Spacer, Cabinet To Top (4) 357213 Nut, Push−In (2) 63424 Cabinet 62780 Clip, Top &...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Model: ETW4300SQ1 (White) W10114237... - Page 4 (Motor Not A Service Part) 3351614 Screw, Ground 90767 Screw, 8−18 x 3/8 8577844 Switch, Water Level 3948608 Bracket, Control 8578842 Cord, Power (Includes Item 15) For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION 3952821 Strain Relief, Power Cord 8274437 Cap, End (L.H.)
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Model: ETW4300SQ1 (White) W10114237... - Page 6 AGITATOR, BASKET AND TUB PARTS For Model: ETW4300SQ1 Illus. Part 3355758 Cap, Agitator 3363661 Bearing−Driven Cam 3348752 Clothes Mover 358237 Screw & Washer 3348117 Agitator(Complete) 8528150 Tub Ring 3976308 Gasket, Tub Ring 21366 Nut, Spanner 8526017 Basket & Balance 8519788 Balance Ring...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS W10114237 For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION 388952 Brake & Drive Tube (Complete) (Refer to Page 11 For Further Breakdown) 63292 Washer, Spin Tube Thrust 62697 Ring, Spin Tube Support 63283 Ring, Retainer 3951311 Clutch (Complete) 3951308 Band &... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring, Suspension (3) 8575214 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Model: ETW4300SQ1 (White) W10114237... - Page 10 (Half−Harness) 3390496 Clip, Harness 389379 Retainer, Harness Timer, Block Disconnect 3948614 Natural 352089 Black FOR COMPLETE WIRING HARNESS REFER TO CONTROL AND REAR PANEL PARTS PAGE For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION 62889 Receptacle, Terminal (3−Way) 353424 Plug, Terminal (3−Way)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS W10114237 For Model: ETW4300SQ1 (White) Illus. Part 10 3355360 DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 356427 Seal, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) 64035... -
Page 12: Gearcase Parts
GEARCASE PARTS For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion 389387... -
Page 13: Optional Parts (Not Included)
799344 White (Uncut) 350572 Oil, Gearcase (16 Oz.) LUBRICANT 285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin) W10114237 For Model: ETW4300SQ1 (White) Illus. Part DESCRIPTION SEALER 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) Illus. Part...
