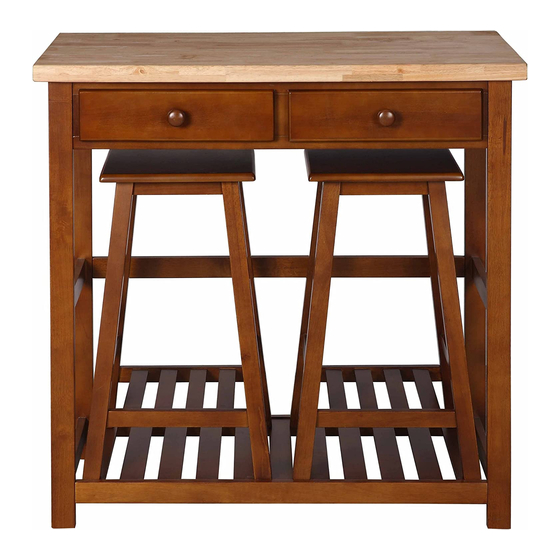

Dorel Asia DA2081 Instruction Booklet

Kitchen island set
Hide thumbs

Advertisement

Quick Links

Download this manual
DOREL ASIA
KITCHEN ISLAND SET
IMPORTANT
INFORMATION. PLEASE READ
AND KEEP FOR FUTURE
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE
Model No:
UPC CODE:
0-65857-16118-2
THIS INSTRUCTION
BOOKLET CONTAINS
SAFETY
REFERENCE.
Lot number:
(TAKEN FROM CARTON)
________________________
Date of purchase:
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTAN
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PROD
E-MAIL:DAS@DOREL.C
DA2081
NOTE:
.
of charge.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA2081 and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Asia DA2081

Summary of Contents for Dorel Asia DA2081

  • Page 1 DOREL ASIA Model No: KITCHEN ISLAND SET DA2081 UPC CODE: 0-65857-16118-2 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ________________________ Date of purchase: _______ / _______ / _______...

  • Page 2: Care And Cleaning

    LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 3 KITCHEN ISLAND SET DA2081 HARDWARE LIST Ø5/32" X 1" Ø5/32" x 7/8" FLAT HEAD SCREW ROUND HEAD BOLT KNOB 18 PCS 2 PCS 2 PCS D10 x Ø1/4" x 12mm D11 x Ø1/4" x 3" BARREL NUT HEX SOCKET HEAD BOLT...

  • Page 4: Parts List

    PARTS LIST FOR TABLE KITCHEN ISLAND SET RAWER BACK DRAWER BOTTOM DRAWER SIDE DRAWER FRONT DRAWER BACK DRAWER BOTTOM ER BOTTOM DA2081 2 PCS 2 PCS 4 PCS 2 PCS 2 PCS 2 PCS 2 PCS TS LIST FOR TABLE...
  • Page 5 KITCHEN ISLAND SET DA2081 STEP 1 Attach drawer sides (A ) to drawer front (B) with flat head screws (1). Insert drawer bottom (D) into the grooves of the drawer sides (A) and drawer front (B). Attach drawer back (C) to drawer sides (A) with flat head screws (1).
  • Page 6 KITCHEN ISLAND SET DA2081 STEP 2 Insert wood dowels (9) into left side panel (E). Insert barrel nuts (4) into back upper panel (G), back center rail (H), bottom shelf (I) and front upper frame (F) as shown. Attach back upper panel (G), back center rail (H), bottom shelf (I) and front upper frame (F) to left side panel (E) with hex socket head bolts (5).
  • Page 7 KITCHEN ISLAND SET DA2081 STEP 3 Insert wood dowels (9) and barrel nuts (4) into bottom shelf (I), back center rail (H), back upper panel (G) and front upper frame (F). Attach right side panel (L) to bottom shelf (I), back center rail (H), back upper panel (G) and front upper...
  • Page 8 KITCHEN ISLAND SET DA2081 STEP 4 Attach drawer stoppers (12) to front upper frame (F) with round head screws (11). Use a Phillips head screw driver (not included) to tighten the screws.
  • Page 9 KITCHEN ISLAND SET DA2081 STEP 5 Insert wood dowels (9) and cam bolts (7) into top panel (J) as shown. Attach wood guides (K) to top panel (J) with round head screws (10). Use a Phillips head screw driver (not included) to tighten the screws.
  • Page 10 KITCHEN ISLAND SET DA2081 STEP 6 Insert cam locks (8) into the left side panel (E) and right side panel (L). Insert wood dowels (9) into front upper frame (F) and back upper panel (G). Fasten top panel (J) to the assembled base unit by rotating cam lock (8) 1/2-turn clockwise.
  • Page 11 KITCHEN ISLAND SET DA2081 STEP 7 Insert the drawers into the kitchen island.
  • Page 12 KITCHEN ISLAND SET DA2081 STEP 8 Insert barrel nuts (4) into shelf (O) and upper rails (M) as shown. Insert wood dowels (9) into upper rails (M). Attach side panel (N) to shelf (O) and upper rails (M) with hex socket head bolts (14).
  • Page 13 KITCHEN ISLAND SET DA2081 STEP 9 Insert wood dowels (9) into upper rails (M). Insert barrel nuts (4) into upper rails (M) and shelf (O). Attach side panel (N) to shelf (O) and upper rails (M) with hex socket head bolts (14).
  • Page 14 KITCHEN ISLAND SET DA2081 STEP 10 Fasten seat board (P) to the assembled unit with flat head screws (13). Use a Phillips head screw driver (not included) to tighten the screws. NOTE : Repeat steps 8-10 to assemble the other stool.
  • Page 15 Attach top panel (P) to right side top (Q) with Phillips round head screws (12). Insert cam bolts (14) STEP 12 STEP 11 KITCHEN ISLAND SET DA2081 CAUTION: "This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability causing possible injury."...

  • Page 16: Customer Service

    MODEL #: DA2081 (walnut) Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
