READ AND SAVE THESE INSTRUCTIONS
YLrlmml
NOTE:
The fan in the Microshelf
Hood turns
on
automatically
to protect
the microwave
oven
when the temperature
inside the hoodreaches
122°F (SO'C). It turns off automatically
when
the temperature
falls below 95°F (35°C).
I.
INSTALLATION
REQUIREMENTS
A. Space Requirements
1
CORPORATION
INSTALLATION
AND
OPERATING
INSTRUCTIONS
FOR
MICROSHELF
HOOD
MODEL
RJH 3330-l
Before
you
begin,
read
the
following
instructions
completely
and carefully.
If followed,
they will simplify
the installation
job.
IMPORTANT:
OBSERVE ALL GOVERNING
CODES
AND ORDINANCES
SAVE THESE INSTRUCTIONS
FOR THE LOCAL
ELECTRICAL
INSPECTOR'S
USE
BEFORE YOU USE YOUR MICROSHELF
HOOD:
Be sure
your
Microshelf
Hood
is installed
on an
appropriate
wall strong enough tosupport
this appliance.
NOTE:
The shelf of the Microshelf
Hood is designed
to support
a Microwave
Oven with
a net
weight
of up to 75 pounds.
The area used for the installation
must be suitable forthe
size, function,
and protection
(from elements)
of the
Microshelf
Hood.
CAUTION:
When mounting
the Microshelf
Hood to a
wall, you must locate 2 studs in the wall.
Do not attempt to install the hood if the 2
wall studs are not found.
Be careful when drilling
holes into a wall. Electrical
wires
and water
pipes
may be concealed
behind
the wall
covering.
APPROVED
FOR USE WITH WHIRLPOOL
RJM
AND
RHM
SERIES
AND
THE
RFM
7300-l
MICROWAVE
OVENS.
APPROVED
FOR
USE
OVER
WHIRLPOOL
CONVENTIONAL
RANGE
COOKTOPS
THAT
DO
NOT HAVE A GRILLE.
Page 1

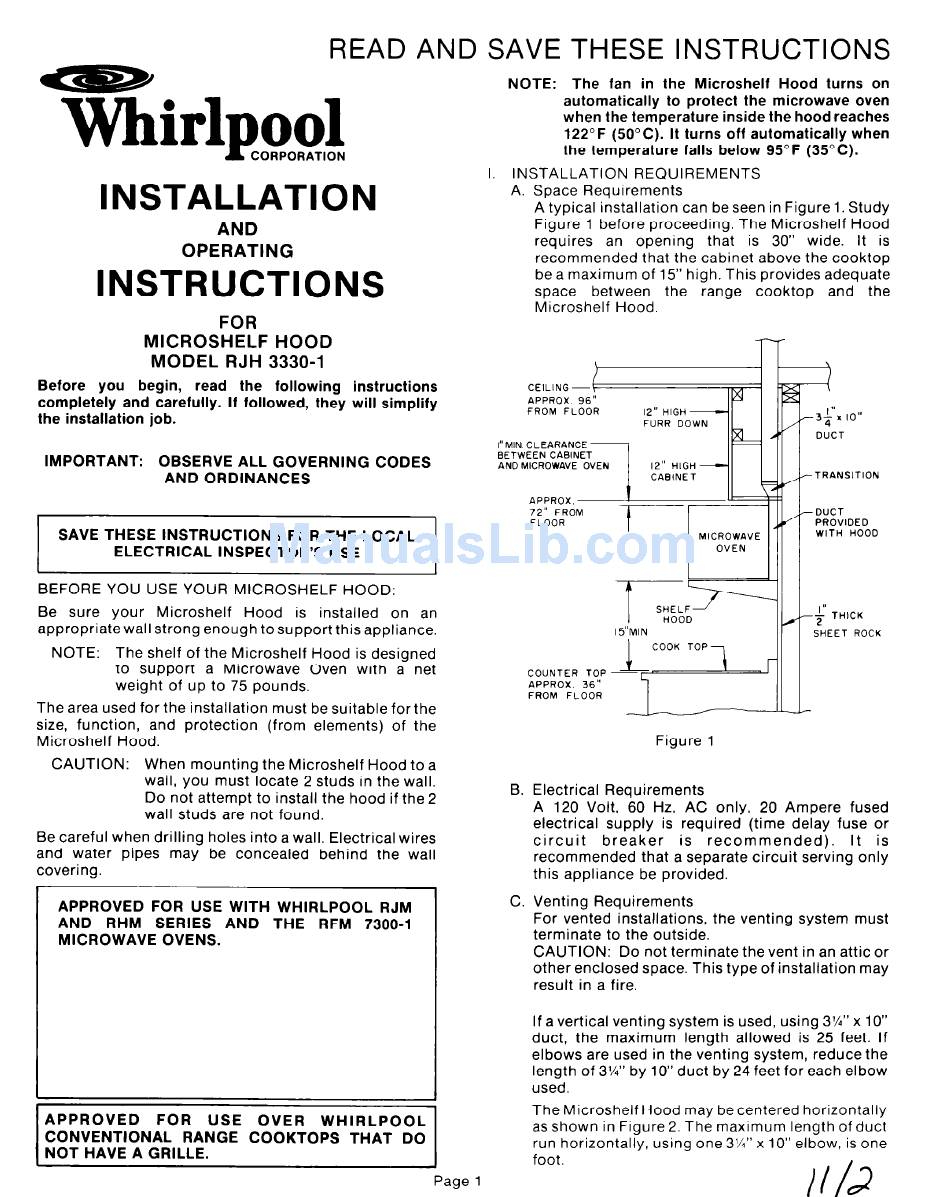

A typical installation
can be seen in Figure 1. Study
Figure 1 before proceeding.
The Microshelf
Hood
requires
an opening
that
is 30"
wide.
It is
recommended
that the cabinet above the cooktop
be a maximum
of 15" high. This provides adequate
space
between
the
range
cooktop
and
the
Microshelf
Hood.
l-
CEILING
--(
APPROX
96"
%I
FROM
FLOOR
FURR
DOWN
FLOOR
T
MICROWAVE
OVEN
t u
SHELF1
n000
I5"MIN
COOK
TOP?
Figure 1
F 3;'. IO"
1
DUCT
%
TRANSITION
DUCT
PROVIDED
WITH
HOOD
II
$
THICK
SHEET
ROCK
B. Electrical
Requirements
A 120 Volt, 60 Hz, AC only,
20 Ampere
fused
electrical
supply
is required
(time delay fuse or
circuit
breaker
is
recommended).
It
is
recommended
that a separate circuit
serving only
this appliance
be provided.
C. Venting
Requirements
For vented installations,
the venting
system must
terminate
to the outside.
CAUTION:
Do not terminate
the vent in an attic or
other enclosed space. This type of installation
may
result in a fire.
If a vertical venting system is used, using 3%" x 10"
duct, the maximum
length
allowed
is 25 feet. If
elbows are used in the venting
system, reduce the
length of 3%" by 10" duct by 24 feet for each elbow
used.
The Microshelf
Hood may be centered horizontally
as shown in Figure 2. The maximum
length of duct
run horizontally,
using one 3%" x 10" elbow, is one
foot
