Whirlpool RH2324XJQ3 Parts List

For Models: RH2324XJQ3, RH2330XJB3, RH2330XJQ3, RH2330XJT3, RH2336XJQ3
7−07 Litho in U.S.A. (cre)

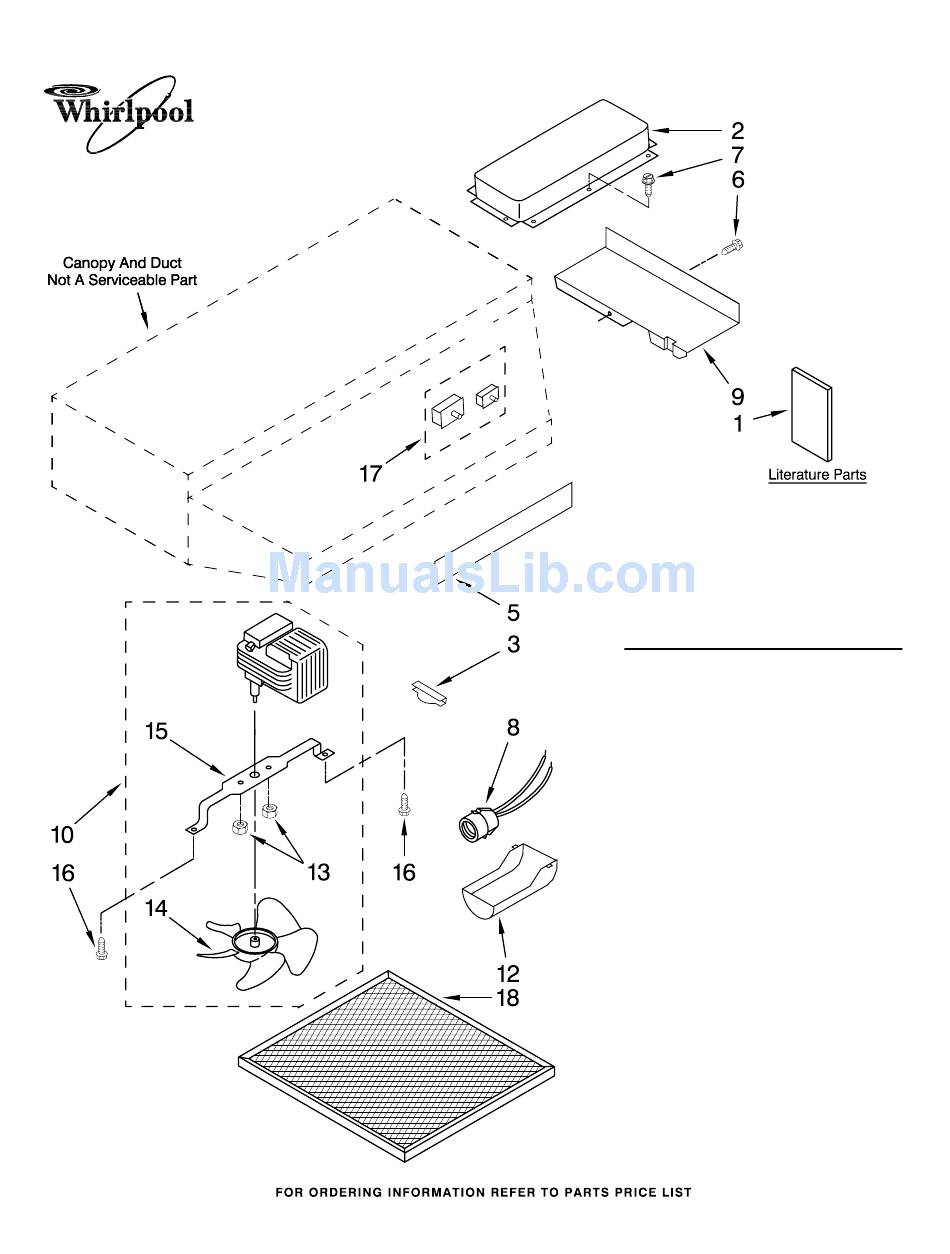

RANGE HOOD PARTS
(White) (Black) (White) (Biscuit)
Illus.
No.
1 W10112419 Guide, Use & Care
2
3
5
6
7
8
9
10
12
13
14
15
16
17
18
1
24",30",36" RANGE HOOD
(White)
Part
No. DESCRIPTION
8186955 Damper
8186936 Support/Retainer
(Filter)
Nameplate
8186938 White
8186937 Black
8186939 Biscuit
8186928 Screw
8186944 Screw
8190871 Receptacle, Light
Bulb not incl−75W
8186927 Cover, Wiring
8186945 Motor/Fan Assembly
8186930 Lens, Light
8190874 Nut
8190873 Blade, Fan
8186934 Bracket, Motor
8190872 Screw
Switch Assy.
8186940 Black
8186941 White
8186942 Biscuit
(Includes Fan and
Light Switches)
4341977 Filter
Part No. 8186926 Rev.A
