Whirlpool RH2030XJ Parts List

12−00 Litho In U.S.A. (rmb)

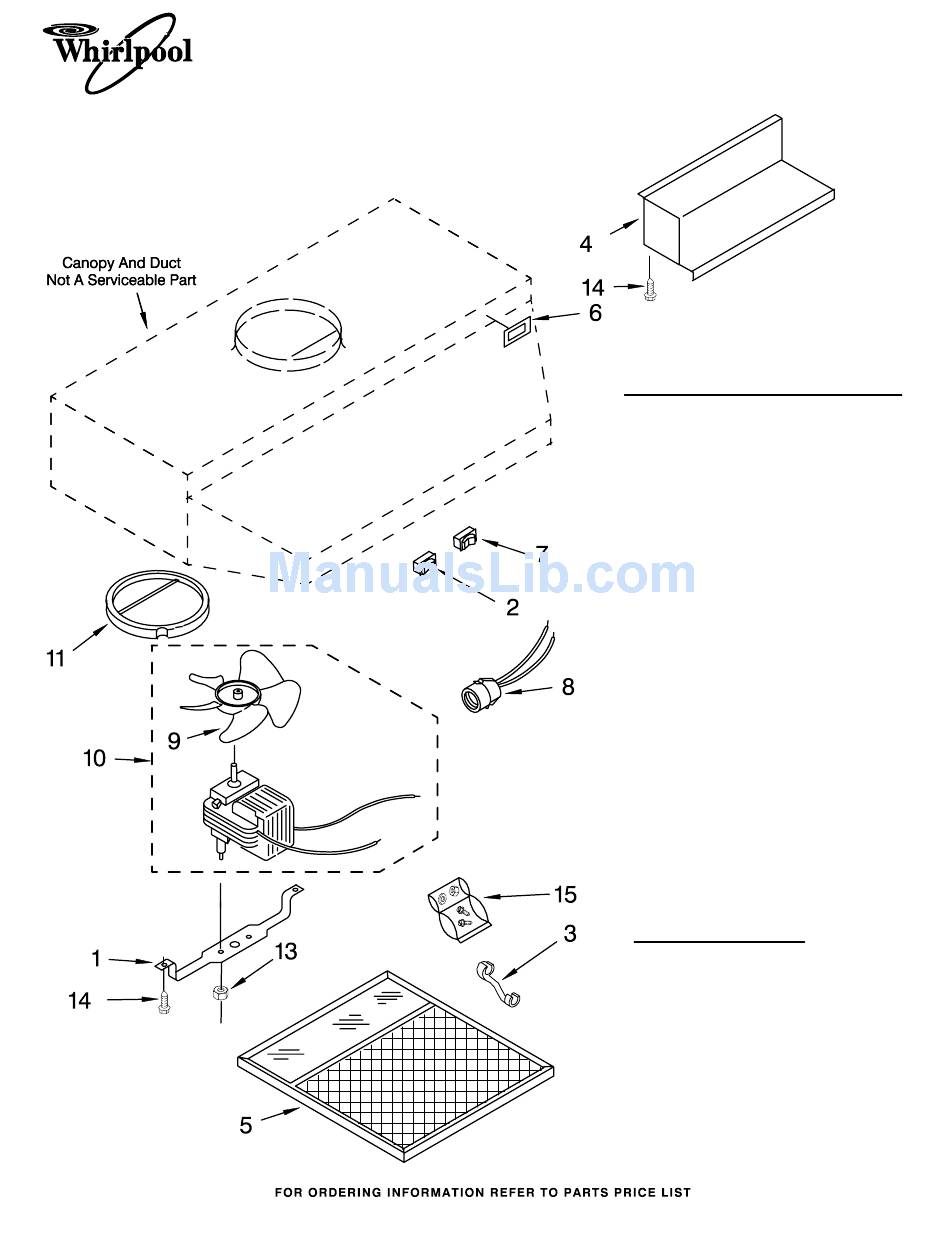

RANGE HOOD PARTS

For Model: RH2030XJQ0, RH2030XJT0, RH2030XJB0
(Designer White) (Biscuit) (Black)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
13
14
15

LITERATURE PARTS

1
30" RANGE HOOD
(Vented)
(Use with Gas or Electric Range)
Part
No. DESCRIPTION
883397 Bracket, Motor
Switch, Light
883205 White
883203 Black
8189515 Biscuit
830327 Bushing
Cover, Wiring
883095 White
883096 Biscuit
883123 Black
883103 Filter, With Lens
Nameplate
8189511 White
8189514 Biscuit
8189513 Black
Switch, Fan
883204 White
883202 Black
8189516 Biscuit
883094 Receptacle,
Light
883382 Blade, Fan
883378 Motor/Fan Assembly
883026 Damper Assembly
883076 Nut, 8−32 (2)
830465 Screw,
8 x 1/4 (6)
883185 Hardware,
Installation
LIT830735 Order Blank,
Filter
LIT8284866 Instructions,
Installation
& Operating
LIT883184 Wiring Diagram
Part No. 8189636
