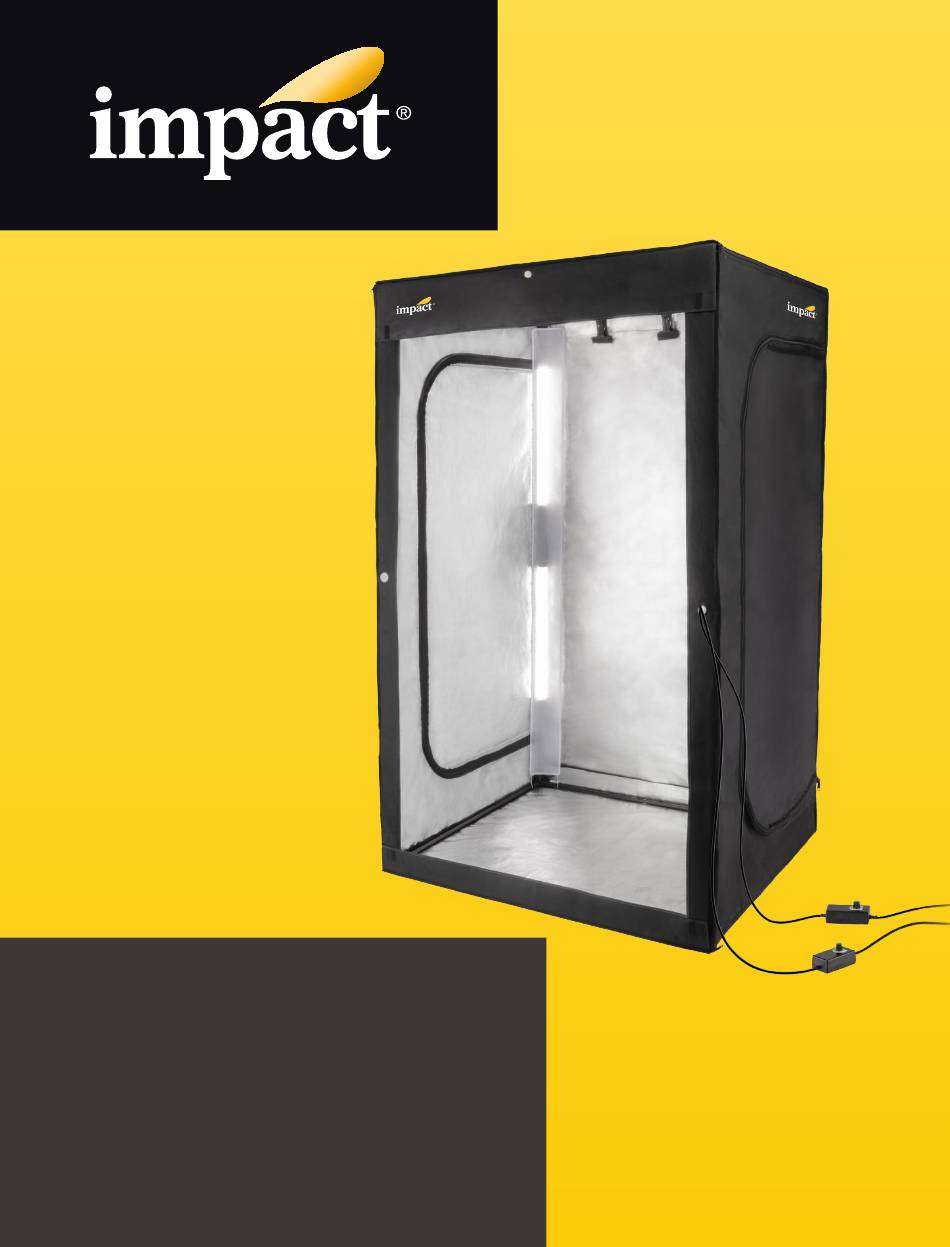

- Page 1 PLB-400 Pro Photo LED Booth with Dimmer INSTRUCTIONS...
- Page 2 Introduction Thank you for choosing Impact. Impact’s PLB-400 portable LED photo booth is ideal for shooting large products, apparel, and portraits. It’s designed to provide the flexibility photographers need to create professional, shadowless images. The booth is lined with reflective, textured silver fabric for dramatic specular lighting, and diffusers are included to create a softer lighting environment.
- Page 3 Overview Frame Assembly Diagram H1 rod (×4) H2 rod (×4) D rods (×4) W rods (×4) Pole connector (×4) Corner connector (×8)
- Page 4 Overview Booth and Accessories Shell LED strip (×8) Dimmable power supply (×8) Also Included Front diffuser Extra pole connector LED diffuser strips (×2 height, x2 width) Extra corner connector Background clip (×3) Extra magnet for LED strip Backdrops Carry bag Apparel rod...
- Page 5 Assembly Assembling the Frame 1. Use the pole connectors to fit the four H1 and four H2 rods together. 2. Form a box of two D and two W rods with the corner connectors. 3. Put the four H1/H2 assemblies into the four corners. 4.
- Page 6 Assembly Attaching the LEDs The eight LED strips have magnets that allow you to attach them to any section of the frame. • Use the LED strips as key lights by attaching them to the front-top or front-side rods. • Use the LED strips as accent or back lights by attaching them to the back-top or back-side rods.
- Page 7 Operation Diffuser Strips The diffuser strips extend along the entire height or width of the booth, and they’re designed to diffuse the light from the LED strips. Attach the hooks at the ends of the diffuser strip to opposing rods. Attaching a Background The included white, black, and blue vinyl backgrounds are long enough to cover the back and bottom of the booth.
- Page 8 One-Year Limited Warranty This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s...
