Assembly and Operating Manual

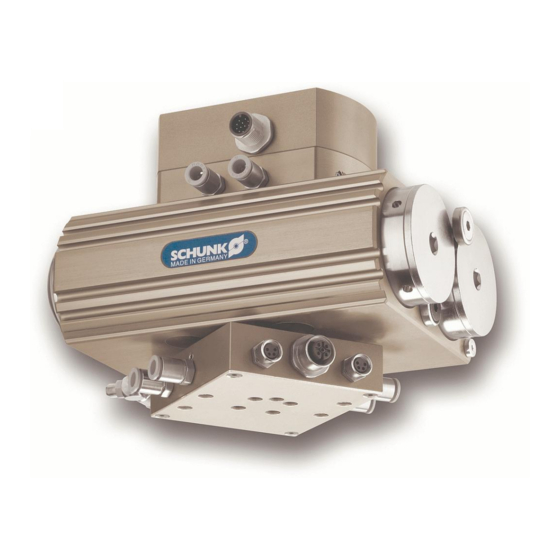

Electrical Feed-Through for SRU Type EDF
EDF
FOR
E
LECTRICAL
F
-T
EED
HROUGH
Dear Customer,
Congratulations on choosing a SCHUNK product. By choosing SCHUNK, you have opted for
the highest precision, top quality and best service.
You are going to increase the process reliability of your production and achieve best
machining results – to the customer's complete satisfaction.
SCHUNK products are inspiring.
Our detailed assembly and operation manual will support you.
Do you have further questions? You may contact us at any time – even after purchase. You can
reach us directly at the mentioned addresses in the last chapter of these instructions.
Kindest Regards,
Your SCHUNK GmbH & Co. KG
Precision Workholding Systems
Bahnhofstr. 106 - 134
D-74348 Lauffen/ Neckar
Tel. +49-7133-103-2503
Fax +49-7133-103-2189
automation@de.schunk.com
www.schunk.com
Document last updated: 04.03.2008
Edition: 01-A
SRU
1
Print date 01.07.2010
Advertisement
Table of Contents
Related Manuals for SCHUNK EDF Series
Summary of Contents for SCHUNK EDF Series
- Page 1 LECTRICAL HROUGH Dear Customer, Congratulations on choosing a SCHUNK product. By choosing SCHUNK, you have opted for the highest precision, top quality and best service. You are going to increase the process reliability of your production and achieve best machining results – to the customer's complete satisfaction.
-
Page 2: Table Of Contents
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Contents SAFETY ..............................3 1.1............................. 3 YMBOL KEY 1.2..........................3 PPROPRIATE USE 1.3..........................3 AFETY NOTES WARRANTY ............................4 SCOPE OF DELIVERY ......................... 5 TECHNICAL DATA ..........................5 4.1. -
Page 3: Safety
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 1. Safety 1.1. Symbol key You will find this symbol wherever hazards for persons or damage to the product are possible. This symbol indicates important information on the product or its handling. 1.2. -
Page 4: Warranty
In the event of emergency shut-down the rotary unit can still move due to a drop in pressure. If such movement is not desired, the position of the unit in the event of emergency shut-down can be secured in any end position with the use of SCHUNK SDV-P valves. -
Page 5: Scope Of Delivery
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 3. Scope of delivery The EDF is normally supplied together with an SRU unit and then bears the product name “SRU ...-EDF...”. In this case, parts of the scope of delivery described below are installed in the overall unit. -
Page 6: Assembly And Installation
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 5. Assembly and installation 5.1. Installation of the electrical cable feed-through in the SRU rotary actuator You require these instructions only if you would like to retrofit an EDF on an existing SRU unit. SRU units can already be ordered equipped with EDF ex-works. -
Page 7: Cable Assignments
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 5.2. Cable assignments Cable outlet of the rotating distributor plate Unit Cable connection, rotating adapter plate SRU 20 4 x M5 Connector for proximity switch connection 1 x M12 Connector for BUS connection SRU 20 4 x M8 Connector for proximity switch connection... -
Page 8: Pin Assignment Edf For Sru20-35
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Figure 1 - Pin assignment - Connector M16 Figure 2 - Pin assignment - Connector M12 5.3. Pin assignment EDF for SRU20-35: Pin: connector Sensor operation Bus operation Pin to sensor connections Profibus RS232 Signal Sensor 3... -
Page 9: Assembly Of Sru With Edf
PB_A CAN_L PB_B CAN_H Refer to the technical documentation for the Schunk sensors for the assignment of the housing sockets on the output side for sensor connection. 5.5. Assembly of SRU with EDF Assembling the unit on an adapter plate: Please use the thread on the base of the SRU rotary actuator. - Page 10 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Assembling the adapter plate on the distributor of the EDF Figure 4 - Connections on rotating distributor If you want to route BUS signals through the EDF, you must plug in and screw tight the supplied connector (M8).
-
Page 11: Maintenance And Servicing
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 6. Maintenance and servicing Check the cable for damage and abrasion after 1 million swivel movements. Remove the flange by undoing the screws. The flange (inside) and the cable spiral must be lubricated again by rubbing with grease before assembly. - Page 12 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Figure 6 - Exploded view of the EDF for SRU 40-60 Print date 01.07.2010...
-
Page 13: Bill Of Materials
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 8. Bill of materials EDF for SRU 20/25 – M5/M8 – ID. Nos. 5516940+5516941+5516942+5516250 Item ID no. Quantity Designation Wearing Note part? 5516187 Distributor plate EDF 20/25 5516186 Cover plate EDF 20/25 5516235 Flange EDF 20/25 5515707... - Page 14 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Item ID no. Quantity Designation Wearing Note part? 9611053 O-ring Ø35 x 1.5 9940506 O-ring Ø68 x 1.5 9611227 O-ring Ø5 x 1 9611300 O-ring Ø3.5 x 1 9907474 O-ring Ø22x1 9941190 Nut M18x0.75 EDF for SRU 35 –...
- Page 15 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Item ID no. Quantity Designation Wearing Note part? 9939378 Guide sleeve dia. Ø8x5.35 Enclosed pack 9939380 Guide sleeve dia. Ø12x6.65 Enclosed pack 9941732 Cable plug M16 Enclosed pack 9937198 Screw plug M8 9611044 O-ring Ø10x1 9611155...
- Page 16 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Item ID no. Quantity Designation Wearing Note part? 9942114 Spacer sleeves M3, self-retaining 9660090 Screw DIN EN ISO 4762 M3 x 20 9942468 Flange socket, 4-pin M8 only for 9942494 Screw plug M5 5516946+5516948 only for...
- Page 17 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Item ID no. Quantity Designation Wearing Note part? 9941380 Spiral round cable for EDF 40-60 only for 9941714 Flange socket, 3-pin M5 5516951+5516953 only for 9341033 Flange socket, 3-pin M8 5516952+5516954 only for 9941202...
-
Page 18: Contact
Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF 9. Contact GERMANY – HEAD OFFICE CANADA DENMARK HUNGARY SCHUNK GmbH & Co. KG SCHUNK Intec Corp. SCHUNK Intec A/S SCHUNK Intec Kft. Spann- und Greiftechnik 190 Britannia Road East, Storhaven 7 Széchenyi út. - Page 19 Fax +82-31-7376142 www.ch.schunk.com info@kr.schunk.com www.kr.schunk.com MEXICO, VENEZUELA PORTUGAL SPAIN TURKEY SCHUNK Intec S.A. de C.V. Sales Representative SCHUNK Intec S.L. SCHUNK Intec Bağlama Sistemleri ve Av. Luis Vega y Monroy # 332 Victor Marques Foneria, 27 Fracc. Plazas de Sol Tel.
- Page 20 Assembly and Operating Manual Electrical Feed-Through for SRU Type EDF Print date 01.07.2010...
