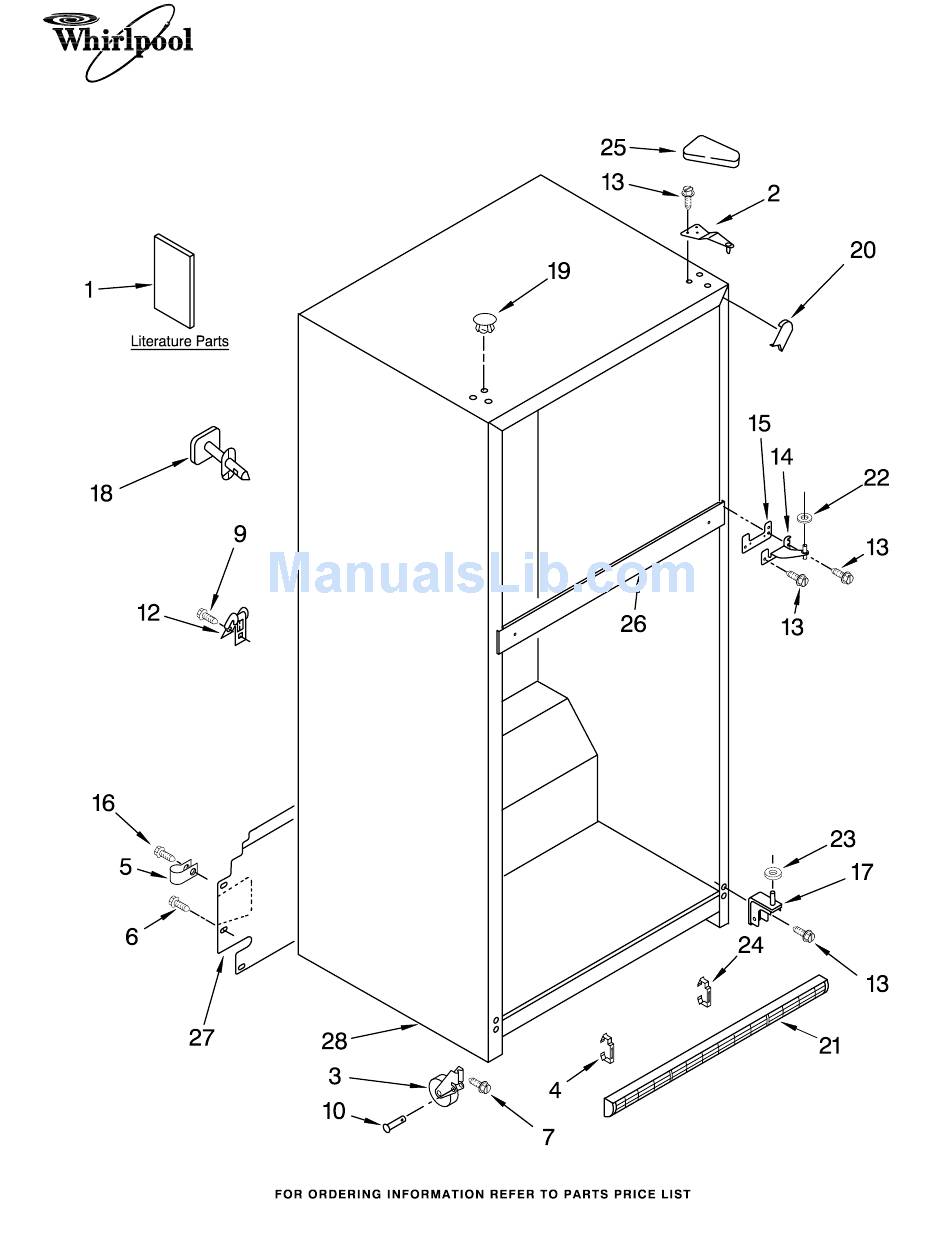

- Page 1 CABINET PARTS REFRIGERATOR For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) (Stainless Steel) Part No. W10180450 Rev.A 1−08 Litho In U.S.A. (rrm)
-
Page 2: Cabinet Parts
CABINET PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) Illus. Part DESCRIPTION Literature Parts W10142143 Service & Wiring Sheet W10178120 Energy Label Use & Care Guide W10131409 Bilingual W10131417 Trilingual 2225623 Modular Icemaker Service Sheet Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself... - Page 3 LINER PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) (Stainless Steel) W10180450...
- Page 4 For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254359 Gasket, Evaporator Cover (2) 2304099 Timer, Defrost 2212485 Thermostat Tube Barrier 2310057 Wire Assembly, Control Box 2162085 Socket, Light 2179858 Damper, Air 2315539 Fan Motor...
-
Page 5: Shelf Parts
SHELF PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) (Stainless Steel) W10180450... - Page 6 SHELF PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mounting 2214912 Shelf, Glass 489478 Screw 2254352 Ice Bucket 2214910 Shelf, Cantilever Meat Pan (Complete) 3400065 Screw...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) (Stainless Steel) W10180450... - Page 8 REFRIGERATOR DOOR PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 6 & 8) 2205395 White 2205398 Black 2218280 Stainless Steel 2300430 Mat, Door Bin 2189202 Bracket, Door Stop 489276 Screw, 8 x 1/2...
-
Page 9: Unit Parts
UNIT PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) (Stainless Steel) W10180450... - Page 10 For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 Illus. Part DESCRIPTION 2320188 Plate, Unit Mounting 2169104 Insulation, Sound Dampening 2214960 Condenser 2315531 Heater, Defrost 2254250 Evaporator Assy. 8533859 Screw 2254294 Drain Pan 2176301 Bracket, Heater 2319835 Grommet−Cond(4) 2300638 Extension, Air Baffle 2255113 Strap...
-
Page 11: Icemaker Parts
ICEMAKER PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) (Stainless Steel) W10180450... - Page 12 ICEMAKER PARTS For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 (White) (Black) Illus. Part DESCRIPTION 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181943 Tube Water 2315576 Valve Solenoid (Single) 2210495 Clip, Water Valve 2210484 Cover 489464 Screw 10 W10122527 Mold & Heater...
-
Page 13: Freezer Door Parts
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 Illus. Part DESCRIPTION Freezer Door (Includes Illus. 4 & 6) 2205399 White 2205402 Black 2212495 Stainless Steel 2189202 Bracket, Door Stop W10180450 FREEZER DOOR PARTS (White) (Black) Illus. Part DESCRIPTION Hole Plug, Handle 2204837 White... -
Page 14: Optional Parts
For Models: GR9FHMXVQ00, GR9FHMXVB00, GR9FHMXVS00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
