Summary of Contents for Whirlpool GR2SHWXVB00

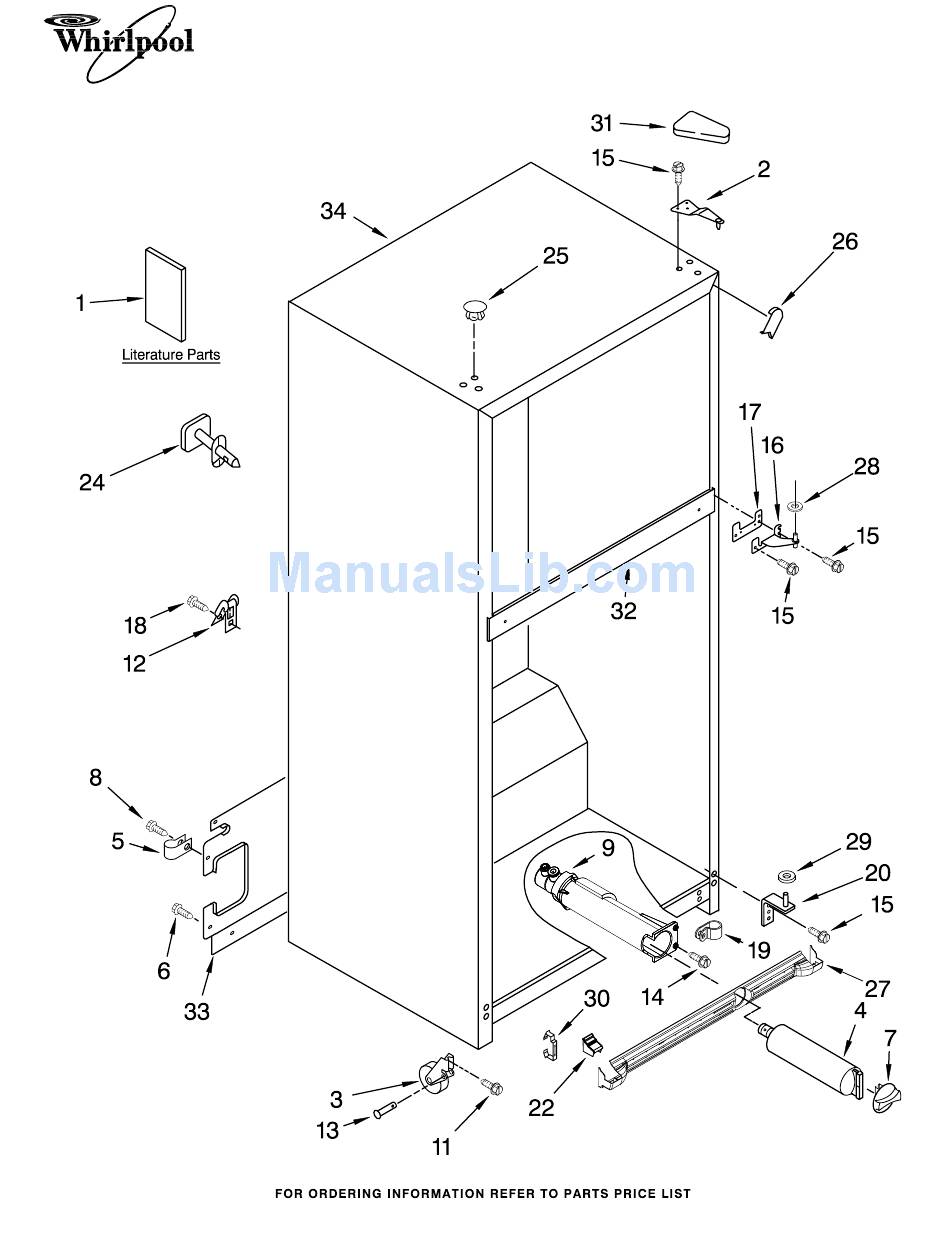

- Page 1 CABINET PARTS REFRIGERATOR For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) (Black) (Stainless) Part No. W10184170 Rev.A 06−08 Litho In U.S.A. (rrm) (psw)
-
Page 2: Cabinet Parts
For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 Illus. Part DESCRIPTION Literature Parts W10142146 Service & Wiring Sheet W10178138 Energy Label 2225623 Modular Icemaker Service Sheet Use & Care Guide W10131410 Bilingual W10131418 Trilingual 2302485 Customer Instruct Sheet, Wtr Filter Following May Be Purchased DO−IT−YOURSELF... - Page 3 LINER PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) (Black) (Stainless) W10184170...
- Page 4 For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254360 Gasket, Evaporator Cover (2) 2304093 Adaptive Defrost Control 2212485 Thermostat Tube Barrier 488208 Screw 2310081 Wire Assembly, Control Box 2162085 Socket, Light 2179858 Damper, Air...
-
Page 5: Shelf Parts
SHELF PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) (Black) (Stainless) W10184170... - Page 6 SHELF PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mtg. 489478 Screw 2254458 Deflector, Air (Crisper Cover) 2225698 Frame Assembly, Shelf 2314500 Crisper Cover 2314478 Crisper Support...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) (Black) (Stainless) W10184170... - Page 8 REFRIGERATOR DOOR PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 8 & 12) 2300636W White 2300636B Black 2300636S Stainless 2159306 Trim, Door Shelf 2177340 Endcap, Door Trim 2189202 Bracket, Door Stop 2210566 Housing, Compartment...
-
Page 9: Unit Parts
UNIT PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) (Black) (Stainless) W10184170... - Page 10 For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 Illus. Part DESCRIPTION 2320187 Plate, Unit Mounting 2300499 Control Box, Dispenser 2214960 Condenser 2314157 Heater, Defrost 2254249 Evaporator Assy. 8533859 Screw 2254295 Drain Pan 2176301 Bracket, Heater 2300867 Power Supply, Dispenser 2300638 Extension, Air Baffle...
-
Page 11: Icemaker Parts
ICEMAKER PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) (Black) (Stainless) W10184170... - Page 12 ICEMAKER PARTS For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 (White) Illus. Part DESCRIPTION 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2210514 Tube Water 489478 Screw 2188808 Valve (Double), Solenoid 2210484 Cover 8 W10122527 Mold & Heater Assembly (Also Order 542638...
-
Page 13: Freezer Door Parts
For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 Illus. Part DESCRIPTION Freezer Door (Includes Illus. 5 & 6) 2202520 White 2204856 Black 2212419 Stainless 2189202 Bracket, Door Stop W10184170 FREEZER DOOR PARTS (White) (Black) Illus. Part DESCRIPTION 489276 Screw Hole Plug, Hinge Sleeve... -
Page 14: Dispenser Parts
For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2300485 Reservoir 2300626 Light Pipe Lever, Water Dispenser 2300471W White 2300471B Black 2300865 User Interface, Dispenser (Includes #3) DISPENSER PARTS (White) (Black) Illus. Part DESCRIPTION Overlay, Front Cover... -
Page 15: Optional Parts
For Models: GR2SHWXVQ00, GR2SHWXVB00, GR2SHWXVS00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
