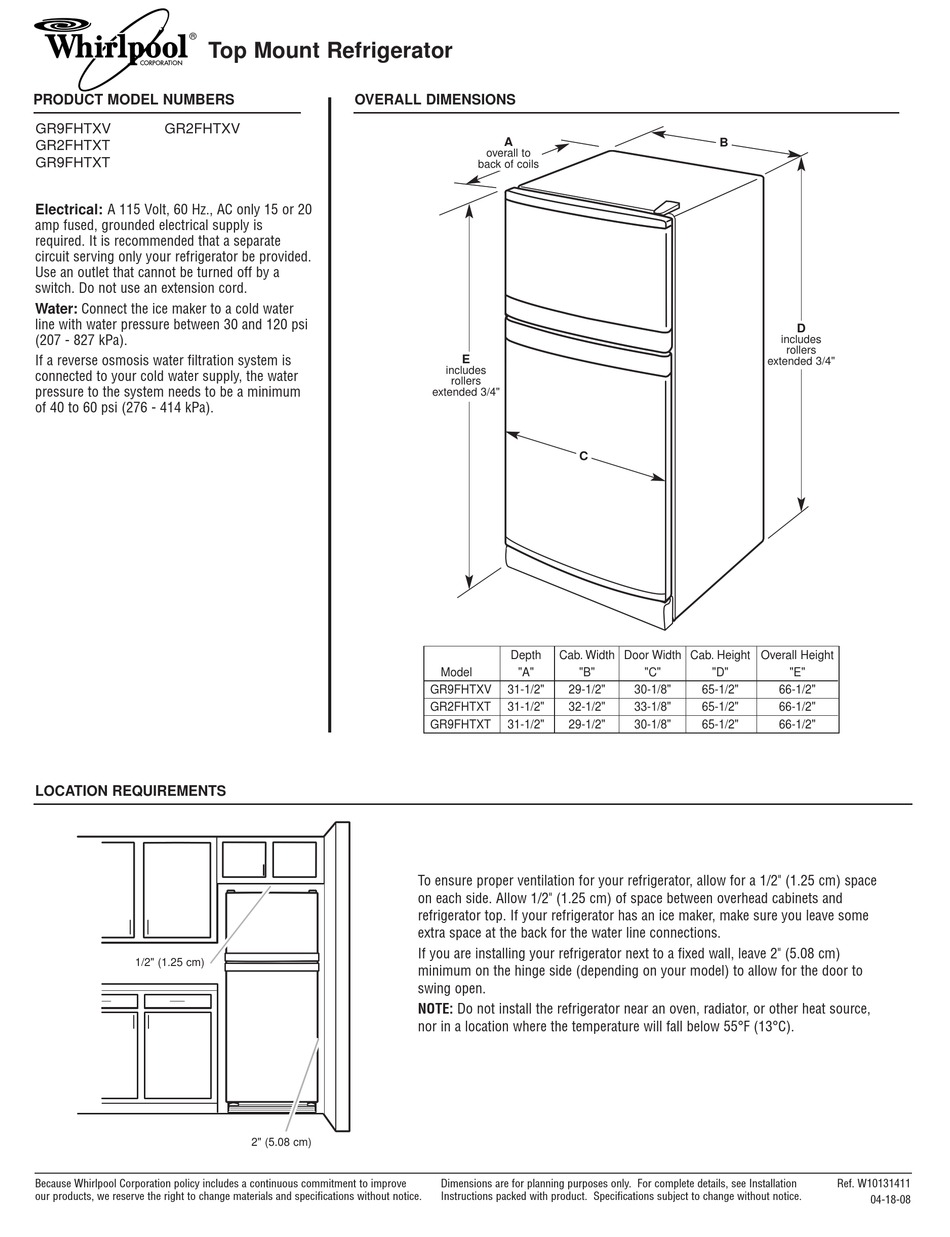

Top Mount Refrigerator
PRODUCT MODEL NUMBERS
GR9FHTXV
GR2FHTXV
GR2FHTXT
GR9FHTXT
Electrical: A 115 Volt, 60 Hz., AC only 15 or 20
amp fused, grounded electrical supply is
required. It is recommended that a separate
circuit serving only your refrigerator be provided.
Use an outlet that cannot be turned off by a
switch. Do not use an extension cord.
Water: Connect the ice maker to a cold water
line with water pressure between 30 and 120 psi
(207 - 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the system needs to be a minimum
of 40 to 60 psi (276 - 414 kPa).
LOCATION REQUIREMENTS
1/2" (1.25 cm)
3" (7.5 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

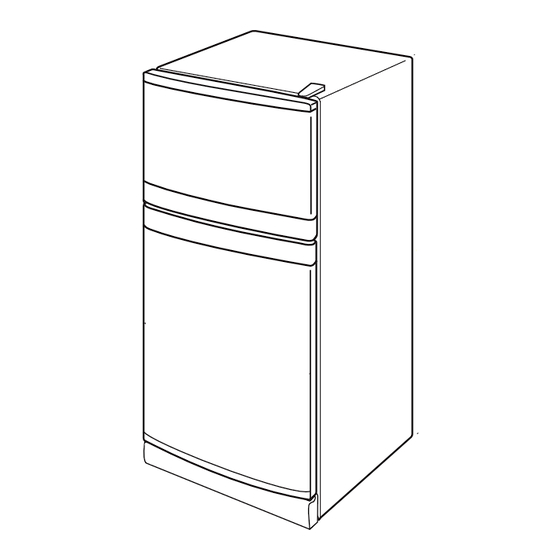

OVERALL DIMENSIONS
To ensure proper ventilation for your refrigerator, allow for a 1/2" (1.25 cm) space
on each side. Allow 1/2" (1.25 cm) of space between overhead cabinets and
refrigerator top. If your refrigerator has an ice maker, make sure you leave some
extra space at the back for the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source,
nor in a location where the temperature will fall below 55°F (13°C).
2" (5.08 cm)
2" (5.08 cm)
A
overall to
back of coils
E
includes
rollers
extended 3/4"
E E C
Depth
Cab. Width Door Width Cab. Height Overall Height
Model
"A"
"B"
GR9FHTXV
31-1/2"
29-1/2"
GR2FHTXT
31-1/2"
32-1/2"
GR9FHTXT
31-1/2"
29-1/2"
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
D
includes
rollers
extended 3/4"
"C"
"D"
"E"
30-1/8"
65-1/2"
66-1/2"
33-1/8"
65-1/2"
66-1/2"
30-1/8"
65-1/2"
66-1/2"
Ref. W10131411
04-18-08
