- Page 1 CABINET PARTS REFRIGERATOR For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) 06−08 Printed In U.S.A. (jdc) (eeb) Part No. W10212490 Rev. A...
-
Page 2: Cabinet Parts

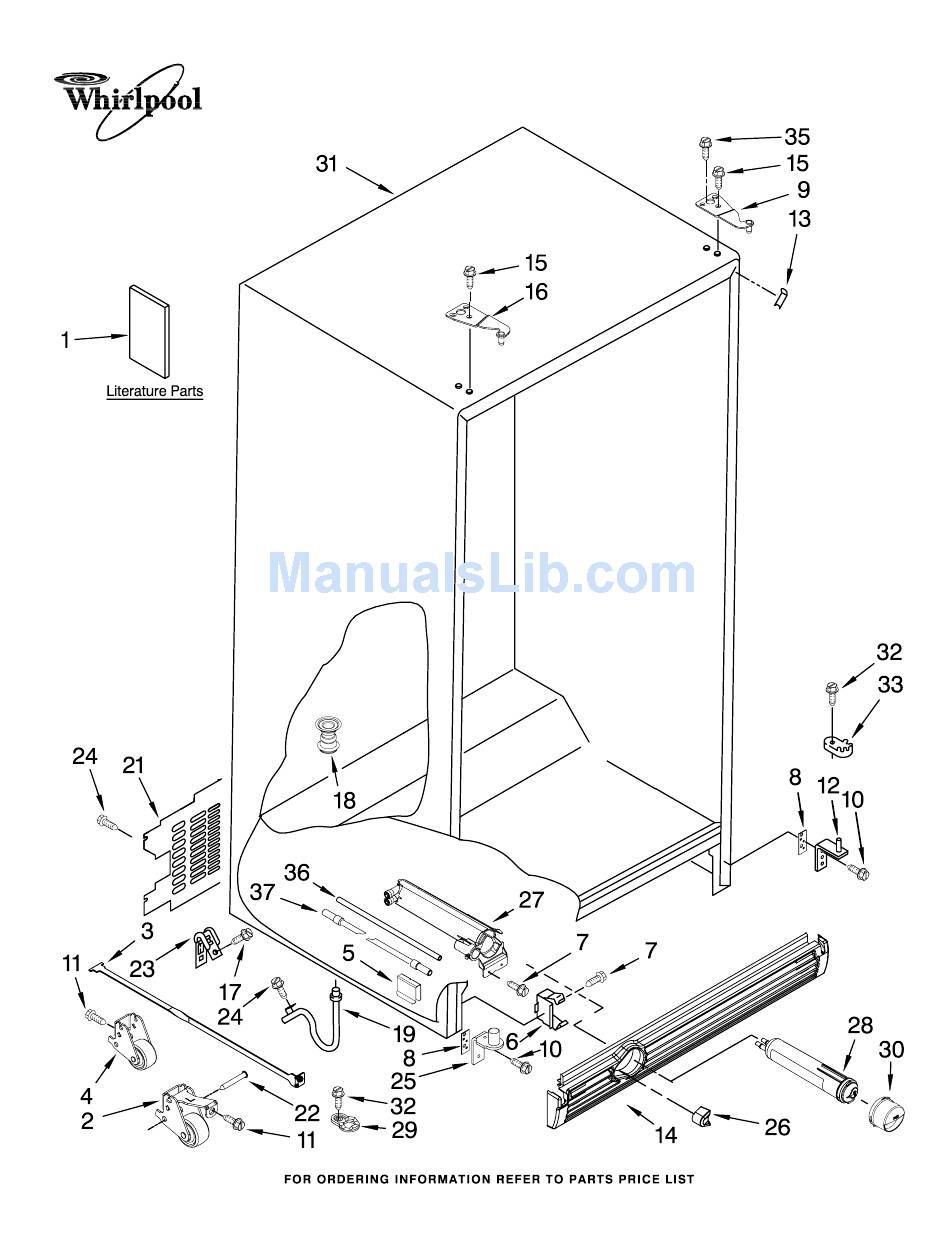

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. Part DESCRIPTION Literature Parts 2318582 Use & Care Guide W10152830 Service & Wiring Sheet 2318510 Installation Instructions W10194142 Energy Guide 2220407 Modular Icemaker Service Sheet Front Roller Asm 2306950 Left Side... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) W10212490 (Black) (Mono Satina) (Mono Stainless) (Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) Illus. Part DESCRIPTION 2223288 Pan Assembly (Includes #31) 2223309 Button, Humidity 2223308 Slide, Humidity 2203027 Cover, Meat Pan (Includes Items 8, 9, 10, & 15) -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 6 For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 3400893 Screw 2196483 Stud Assembly 2223690 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2223782 Front, Basket Shelf Track...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. 1 W10139482 Ice Bin 2 W10138753 Crusher Bin 3 W10140642 Auger 6 W10139321 Cover, Crusher 20 W10140685 Latch, Bin 100 W10140690 Ice Container (Black) (Mono Satina) (Mono Stainless) (Stainless)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 10 REFRIGERATOR DOOR PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. 9 W10155511 Screw, Handle 22 W10129563 Screw, Mounting (Black) (Mono Satina) (Mono Stainless) (Stainless) Part DESCRIPTION Refrigerator Door (Includes #7) W10168248 White W10168249 Black W10168250 Mono Satina W10168251 Monochromatic...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 12 FREEZER DOOR PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. 6 W10155511 Screw, Handle 15 W10129563 Screw, Handle Following Parts Not Illustrated (Black) (Mono Satina) (Mono Stainless) (Stainless) Part DESCRIPTION Freezer Door (Includes #8) W10149866 White W10149867 Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 14 DISPENSER FRONT PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (2) Grille, Slide...
-
Page 15: Air Flow Parts
For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223771 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) Illus. Part DESCRIPTION 2319752 Control Box (Includes #6) 2223877 Latch 2306952 Trim, Control Box 2223512 Spring, Torsion 2223882 Heat Shield Asm 2307037 Control Board Asm... -
Page 17: Unit Parts
UNIT PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 18 For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. Part DESCRIPTION 777070 Screw 2 W10139483 Fan, Blade 3 W10131059 Condenser Assembly 8533859 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2319835 Grommet, Cond (4) 2215676 Cover, Terminal...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) (Black) (Mono Satina) (Mono Stainless) (Stainless) W10212490... - Page 20 ICEMAKER PARTS For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. 6 W10159840 Water Valve Asm 10 W10122527 Mold & Heater 100 W10190960 Icemaker Assembly (Black) (Mono Satina) (Mono Stainless) (Stainless) Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit...
