- Page 1 CABINET PARTS REFRIGERATOR For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) (Black) Part No. 8199123 7−04 Litho In U.S.A. (ebk)
-

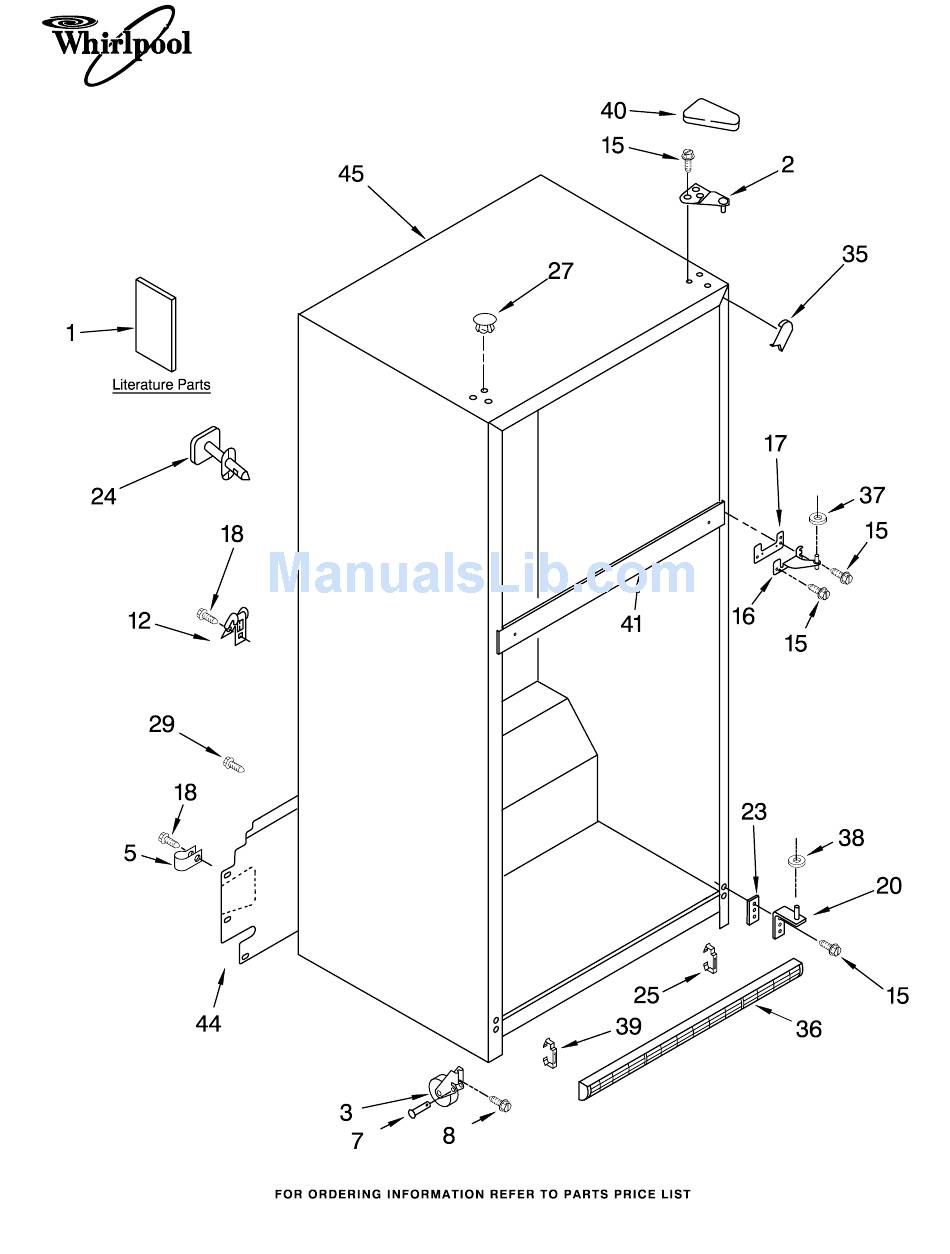

Page 2: Cabinet Parts
CABINET PARTS For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) Illus. Part DESCRIPTION Literature Parts 2225759 Service & Wiring Sheet 2302218 Energy Label 2302037 Use & Care Guide 2225413 Customer Instructions Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual, Ref./Fzr. -
Page 3: Door Parts
DOOR PARTS For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) (Black) 8199123... - Page 4 DOOR PARTS For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) Illus. Part DESCRIPTION Refrigerator Door (Includes #9 & #11) 2183948 White 2205285 Biscuit 2213386 Black Handle, R.C. 2202807W White 2202807T Biscuit 2202807B Black 489357 Screw 8281146 Screw Door Gasket, Magnetic 2202874 Mist Beige...
- Page 5 LINER PARTS For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) (Black) 8199123...
- Page 6 LINER PARTS For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254359 Gasket, Evaporator Cover (2) 2188376 Defrost Timer 2204640 Thermostat Tube Barrier 941839 Hole Plug 2187885 Wire Assy. Control Box...
-
Page 7: Unit Parts
UNIT PARTS For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 (White) (Biscuit) (Black) 8199123... - Page 8 For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 Illus. Part DESCRIPTION 2225597 Plate, Unit Mounting 2214960 Condenser 2176300 Heater, Defrost 2254250 Evaporator Assy. 489494 Screw 2254294 Drain Pan 2176301 Bracket, Heater 2300638 Extension, Air Baffle 2201184 Support Block Cover 2162358 Production 4387731 Service...
-
Page 9: Shelf Parts
For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 8199123 SHELF PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2163856 Shelf (2) 2221752 Cover, Crisper 2218124 Pan, Crisper 2163762 Cup, Shelf Mounting 2172541 Support, Crisper Cover 2163835 Track, Crisper 2189453 Shelf 2218123 Pan, Crisper 2221693 Insert, Crisper... -
Page 10: Optional Parts
For Models: ET8WTKXKQ05, ET8WTKXKT05, ET8WTKXKB05 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
