- Page 1 CABINET PARTS REFRIGERATOR For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 (White) (Biscuit) (Black) 8−04 Litho In U.S.A. (ebk) Part No. 8199121...
-
Page 2: Cabinet Parts

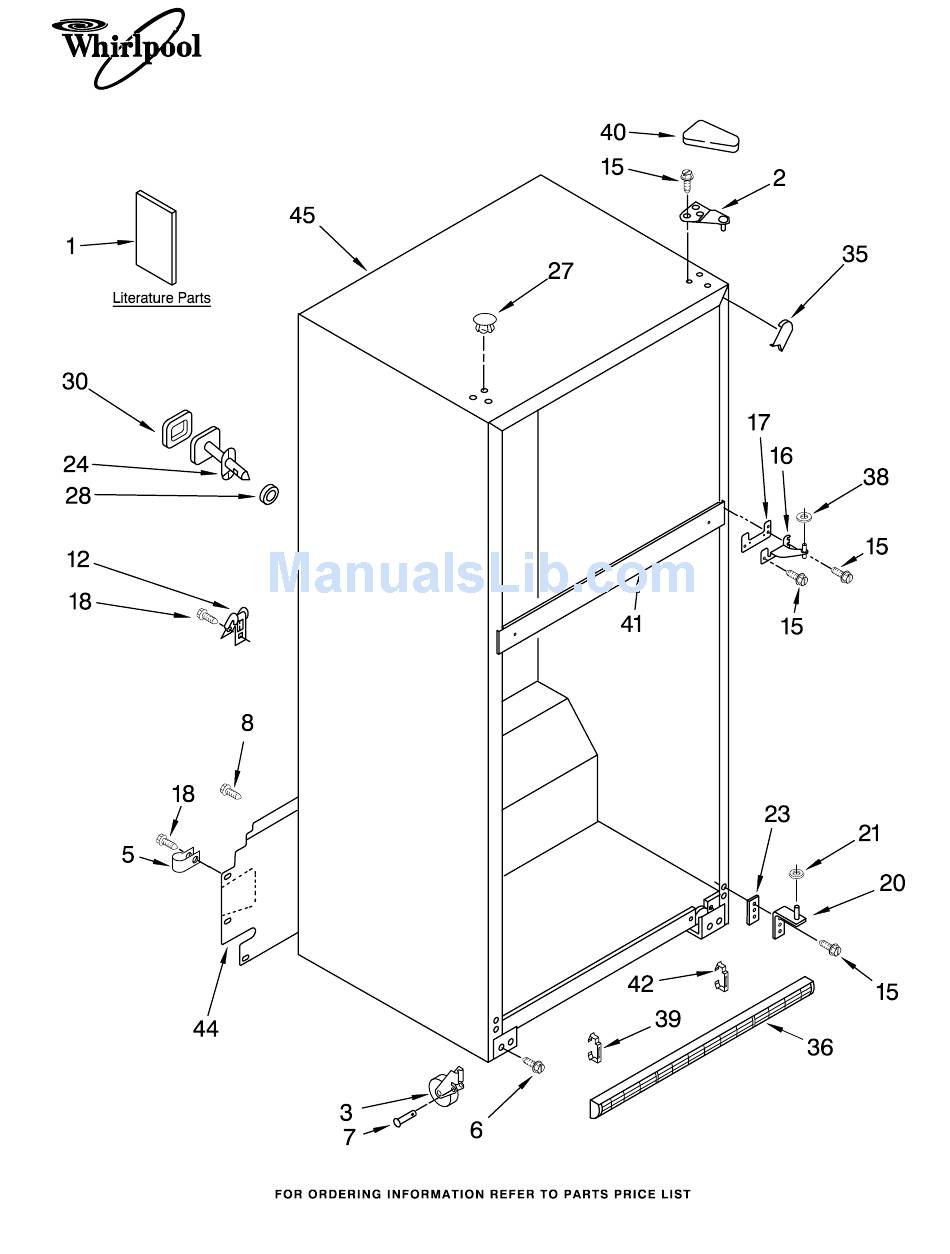

For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 Illus. Part DESCRIPTION Literature Parts 2225759 Service & Wiring Sheet 2302184 Energy Label 2302037 Use & Care Guide 2225413 Customer Instructions Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual, Ref./Fzr. 2189410 Hinge (Top) 2166108 Roller, Front (2) -
Page 3: Door Parts
DOOR PARTS For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 (White) (Biscuit) (Black) 8199121... - Page 4 For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 Illus. Part DESCRIPTION Refrigerator Door (Includes #9 & #22) 2183898 White 2205281 Biscuit 2200712 Black Handle Center 2202807W White 2202807T Biscuit 2202807B Black 489357 Screw 8281146 Screw Door Gasket, Magnetic 2202874 Mist Beige Cover, Screw 2202819W White...
- Page 5 LINER PARTS For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 (White) (Biscuit) (Black) 8199121...
- Page 6 LINER PARTS For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 (White) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254359 Gasket, Evaporator Cover (2) 2188376 Control, Adaptive Defrost 2204640 Thermostat Tube, Barrier 941839 Hole Plug 2187885 Wire Assy. Control Box...
-
Page 7: Unit Parts
UNIT PARTS For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 (White) (Biscuit) (Black) 8199121... - Page 8 For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 Illus. Part DESCRIPTION 2225597 Plate, Unit Mounting 2214960 Condenser 2176300 Heater, Defrost 2254250 Evaporator Assy. 2254294 Drain Pan 2176301 Bracket, Heater 2300638 Extension, Air Baffle 2201184 Support Block Cover 2162358 Production 4387731 Service Overload 2302290 Production...
-
Page 9: Shelf Parts
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 8199121 SHELF PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2200986 Glass, Full Shelf 2163835 Track, Crisper 489478 Screw 2163762 Cup, Shelf Mounting 2201101E Shelf, Cantilever 2188684 Trim, Shelf... -
Page 10: Optional Parts
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) PARTS NOT ILLUSTRATED 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
