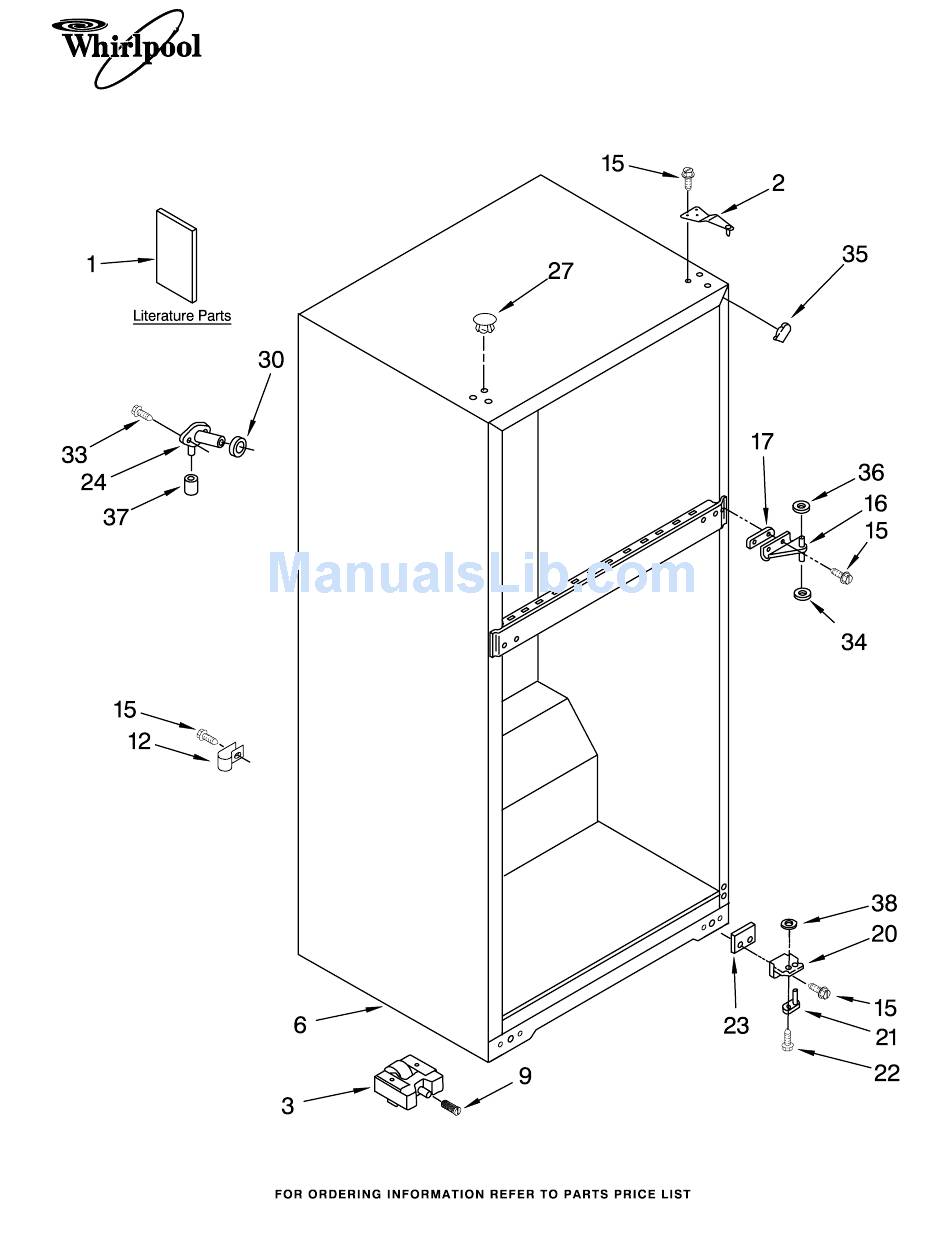

CABINET PARTS
REFRIGERATOR
For Models: ET8GTKXKQ02, ET8GTKXKT02
(White)
(Biscuit)
1
9−04 Litho In U.S.A. (ebk)
Part No. 8199142
