- Page 1 CABINET PARTS REFRIGERATOR For Models: ET8AHKXRQ00 (White) 12−05 Litho In U.S.A. (djc) Part No. 8214722...
-
Page 2: Cabinet Parts

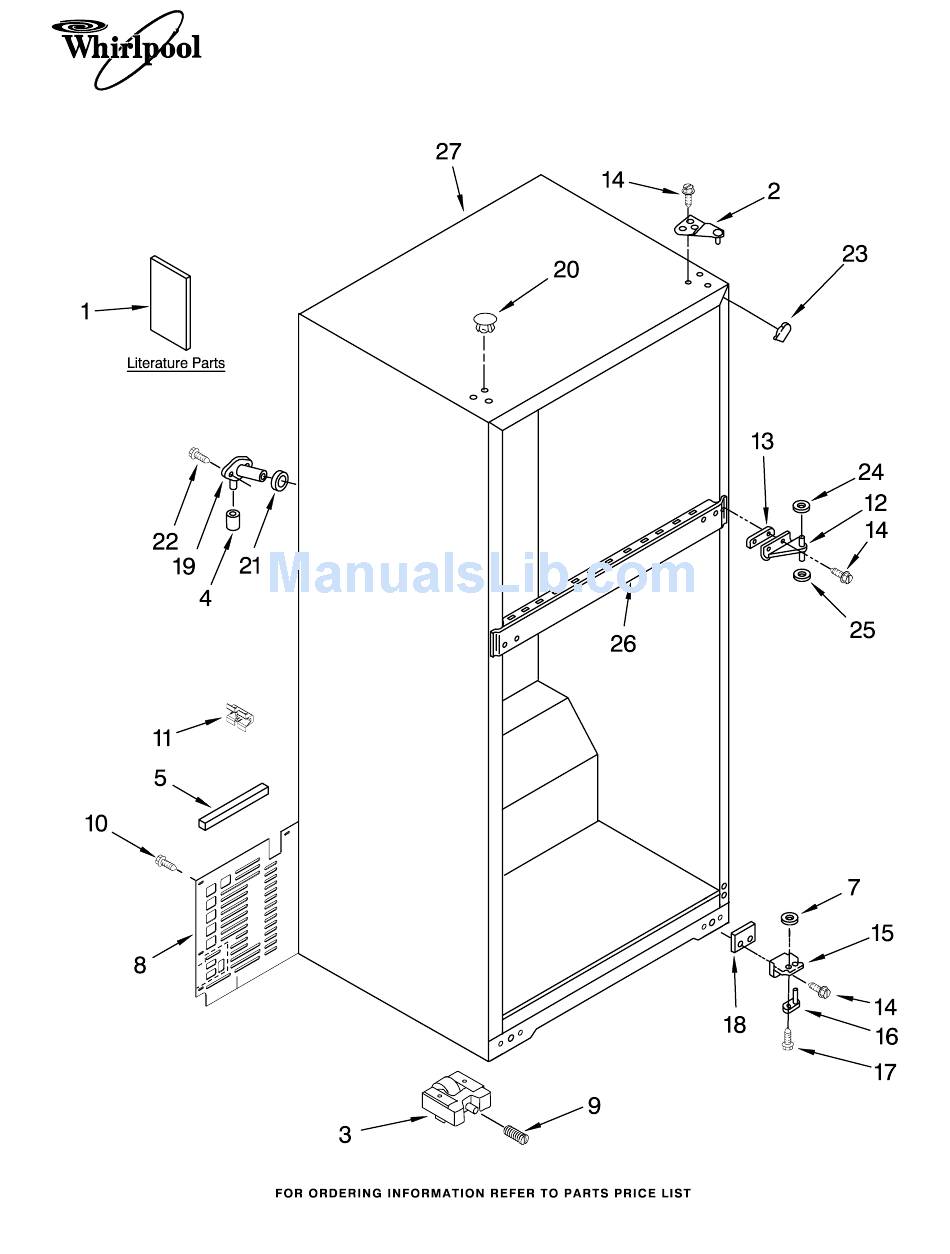

CABINET PARTS For Models: ET8AHKXRQ00 (White) Illus. Part DESCRIPTION Literature Parts 2265591 Service & Wiring Sheet 2316016 Use & Care Guide 2266599 Energy Guide Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual, Ref./ Fzr. 2261963 Hinge Butt, Top... -
Page 3: Door Parts
DOOR PARTS For Models: ET8AHKXRQ00 (White) 8214722... - Page 4 DOOR PARTS For Models: ET8AHKXRQ00 (White) Illus. Part DESCRIPTION 1 2266588W Refrigerator Door (Includes Illus. 9,12, 14 & 24) 2207942 Door Compartment 8281206 Screw 2156003 Trim, Endcap 5 2221946W Handle, Refrigerator 489357 Screw 8281146 Screw 2263258 Door Gasket, Magnetic 10 2202819W Screw Cover...
- Page 5 LINER PARTS For Models: ET8AHKXRQ00 (White) 8214722...
- Page 6 489174 Screw 2215115 Wire Assembly Control Box 2162085 Socket, Light 2197404 Fan Support Bracket 2197405 Fan Mounting Bracket 2169142 Fan Blade LINER PARTS For Models: ET8AHKXRQ00 (White) Illus. Part DESCRIPTION 2215210 Control Box 2201754 Thermostat 489399 Screw 1118680 Thermostat Tube Barrier...
-
Page 7: Unit Parts
UNIT PARTS For Models: ET8AHKXRQ00 (White) 8214722... - Page 8 2263920 Evaporator Assy. 9791833 Clip, Evaporator Tube 2225929 Start− Device Combination (Start Relay and Overload for Production Compressor Only) UNIT PARTS For Models: ET8AHKXRQ00 (White) Illus. Part DESCRIPTION 2262192 Wedge, Evaporator 2264129 Fan Blade 2264841 Screw 549193 Clamp, Cord 2217634 Compressor...
-
Page 9: Shelf Parts
8214722 SHELF PARTS For Models: ET8AHKXRQ00 (White) Illus. Part DESCRIPTION 2263863 Holder, Meat Pan 2263641 Shelf (2) 2192250 Crisper, Cover 2252931 Crisper Pan 2210047 Glass, Crisper 2207936 Pan, Meat 2197240 Shelf, Freezer 2212446 Body, Humidity 2176222 Slide, Humidity 2252932 Crisper Pan... -
Page 10: Optional Parts
(36−5/8" x 46") 799833 Kit, Evaporator Repair (Aluminum Epoxy) 799832 Kit, Porcelain Repair (White) 503695 Cork Sealer (1/4 Pound) OPTIONAL PARTS For Models: ET8AHKXRQ00 (White) Illus. Part DESCRIPTION Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz.
