- Page 1 CABINET PARTS REFRIGERATOR For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) (Black) Part No. 8198664 1−04 Litho In U.S.A. (ebk)
-
Page 2: Cabinet Parts

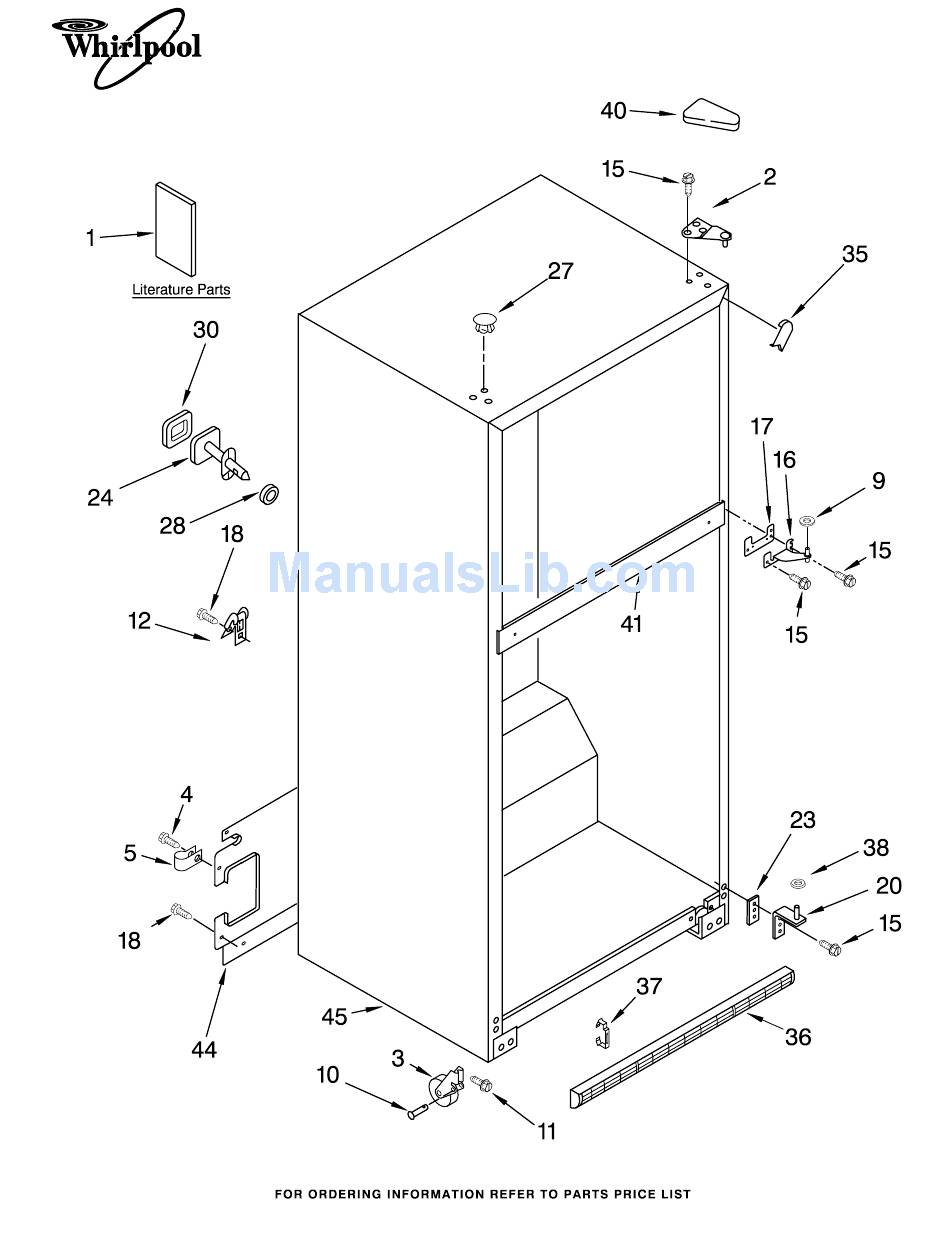

CABINET PARTS For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) Illus. Part DESCRIPTION Literature Parts LIT2225762 Service & Wiring Sheet LIT2301654 Energy Label LIT2225411 Use & Care Guide LIT2225413 Customer Instructions Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS LIT677969 Do−It−Yourself Manual, Ref./Fzr. -
Page 3: Door Parts
DOOR PARTS For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) (Black) 8198664... - Page 4 DOOR PARTS For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) Illus. Part DESCRIPTION Refrigerator Door (Includes #9 & #22) 2183920 White 2205284 Biscuit 2200714 Black Handle Center 2202807W White 2202807T Biscuit 2202807B Black 489357 Screw 8281146 Screw 2202875 Door Gasket, Magnetic...
- Page 5 LINER PARTS For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) (Black) 8198664...
- Page 6 LINER PARTS For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) Illus. Part DESCRIPTION Liner (Not a Serviceable Part) 2197380 Grommet (2) 2254360 Gasket, Evaporator Cover (2) 2188376 Defrost Timer 2204640 Thermostat, Tube Barrier 941839 Hole Plug 2221668 Wire Assembly Control Box...
-
Page 7: Unit Parts
UNIT PARTS For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 (White) (Biscuit) (Black) 8198664... - Page 8 For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 Illus. Part DESCRIPTION 2225596 Plate, Unit Mounting 2214960 Condenser 2166124 Heater, Defrost 2254249 Evaporator Assy. 489494 Screw 2254295 Drain Pan 2176301 Bracket, Heater 2163780 Extension, Air Baffle 2255113 Strap 4387731 Cover (Service Only) 4387766 Overload...
-
Page 9: Shelf Parts
For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 8198664 SHELF PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2202821 Shelf, Ladder Center 2200988 Glass, Full Shelf 2163762 Cup, Shelf Mtg. 489478 Screw 2188687 Trim Shelf, Rear 2201102E Shelf, Cantilever 2188685 Trim, Shelf Front... -
Page 10: Optional Parts
For Models: ET1MHKXMQ00, ET1MHKXMT00, ET1MHKXMB00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
